Product no. M-2946

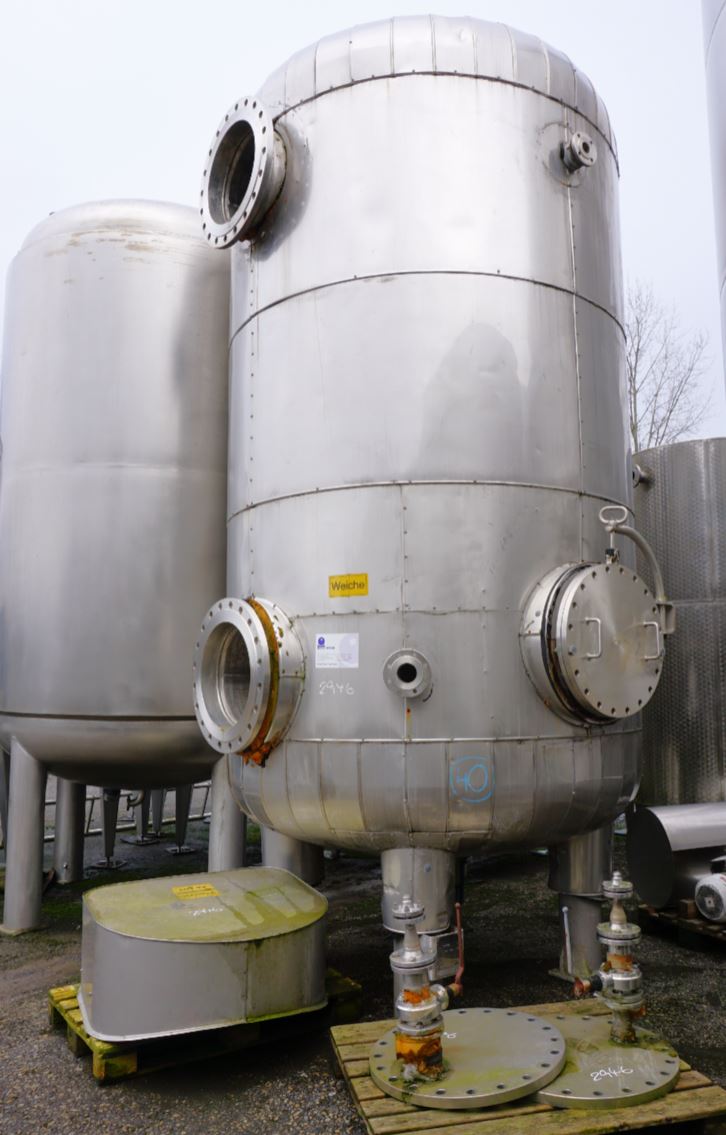

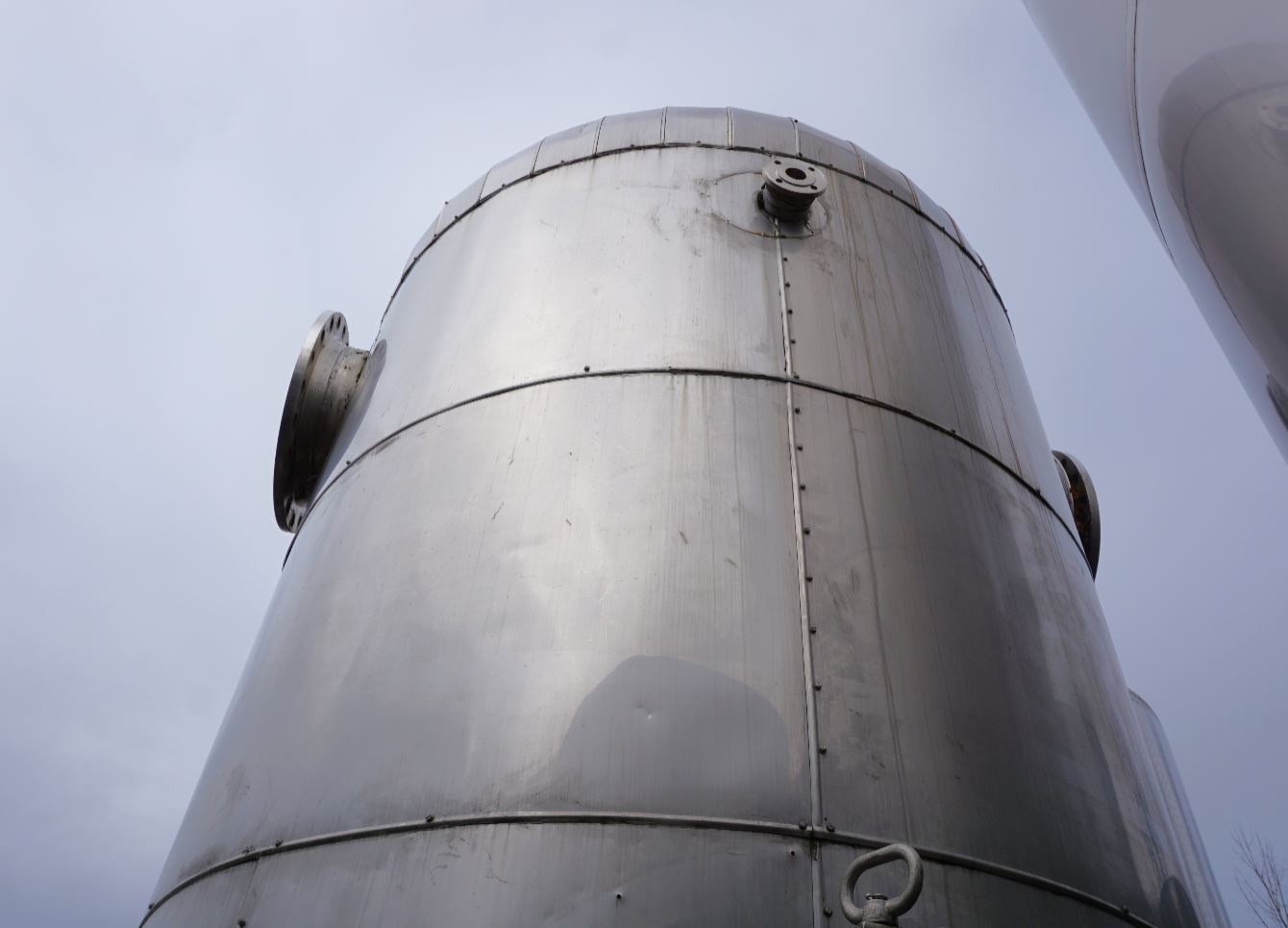

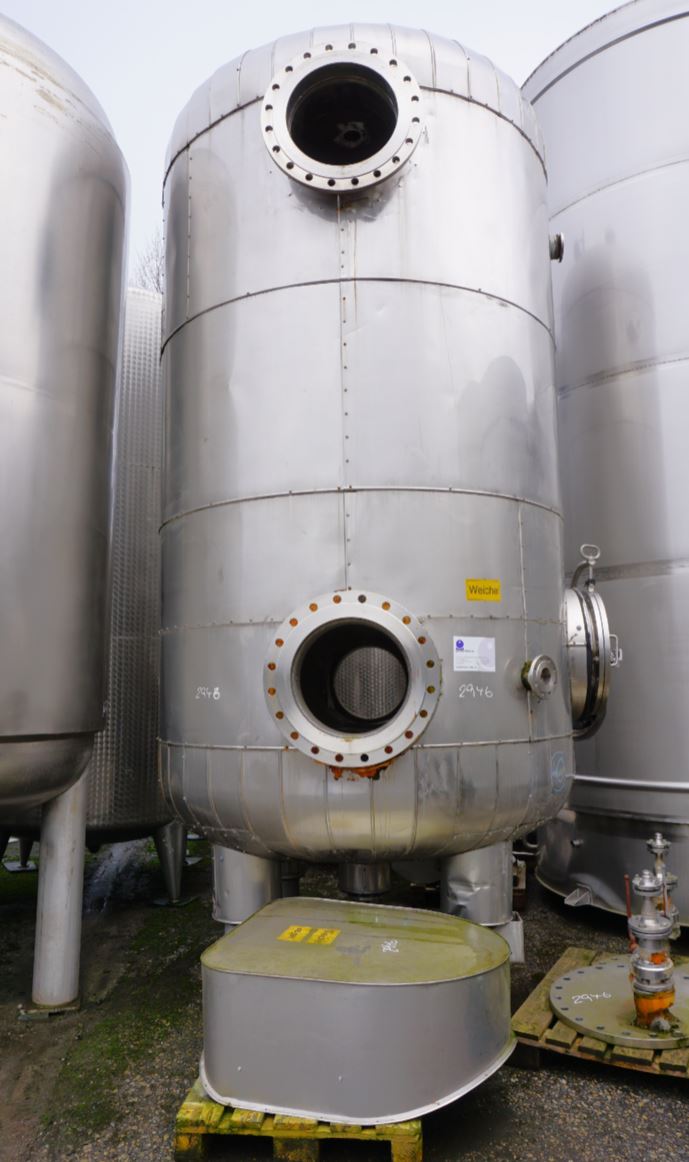

Pressure tank 11.435 liters made of V4A. isolated, used, standing

EUR 10.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 11,435.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 11.435 liters made of V4A. isolated, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 11,435.00 litres. The diameter inside includes 2,000 mm.  Pressure tank 11.435 liters made of V4A. isolated, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Volume approx.

  • 11.435,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2000

  • Manufacturer

  • Pass & Co.

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.000 mm

  • External diameter

  • 2.200 mm

  • Cyl. height

  • 3.000 mm

  • Foot height

  • 1.300 mm

  • Total height

  • 5.300 mm

Design

  • Weight approx.

  • 3.400,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

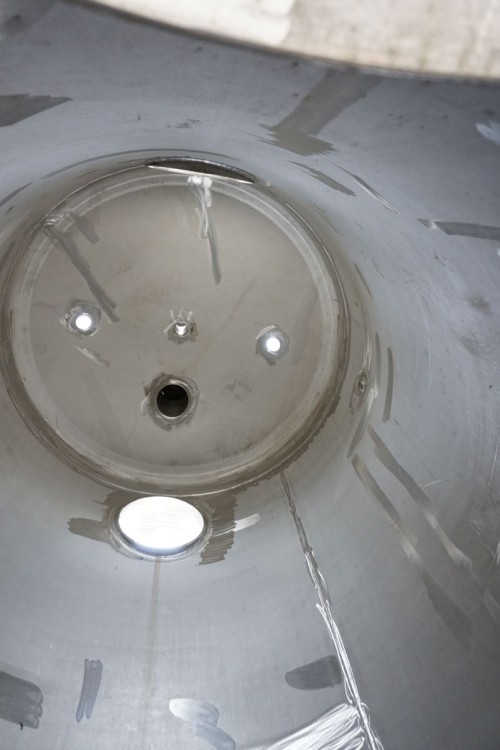

  • Interior surface

  • Matt

  • Exterior surface

  • Matt

  • Floor type

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 10,00 bar

  • Product chamber operating under-pressure

  • -1 bar

Supports

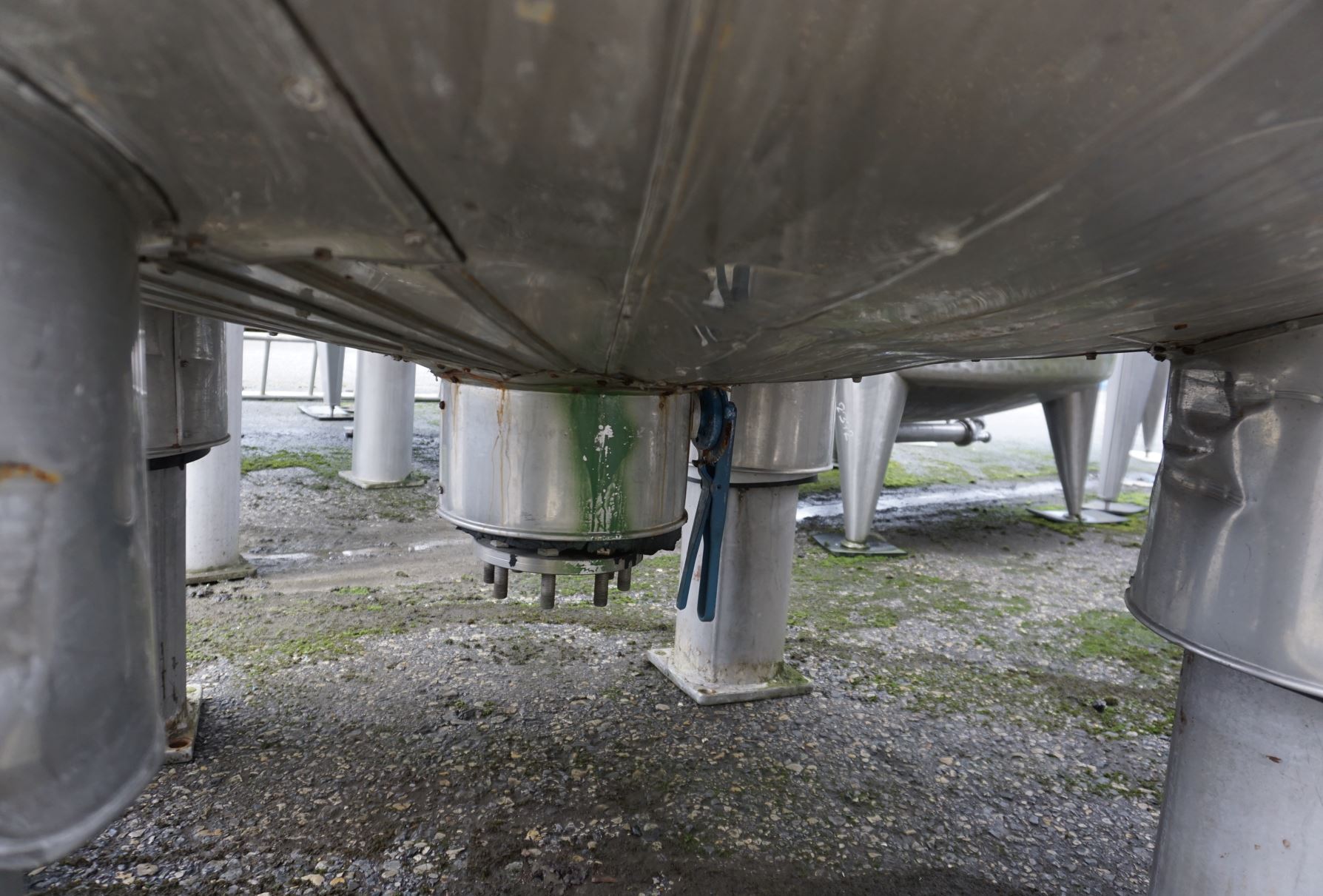

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

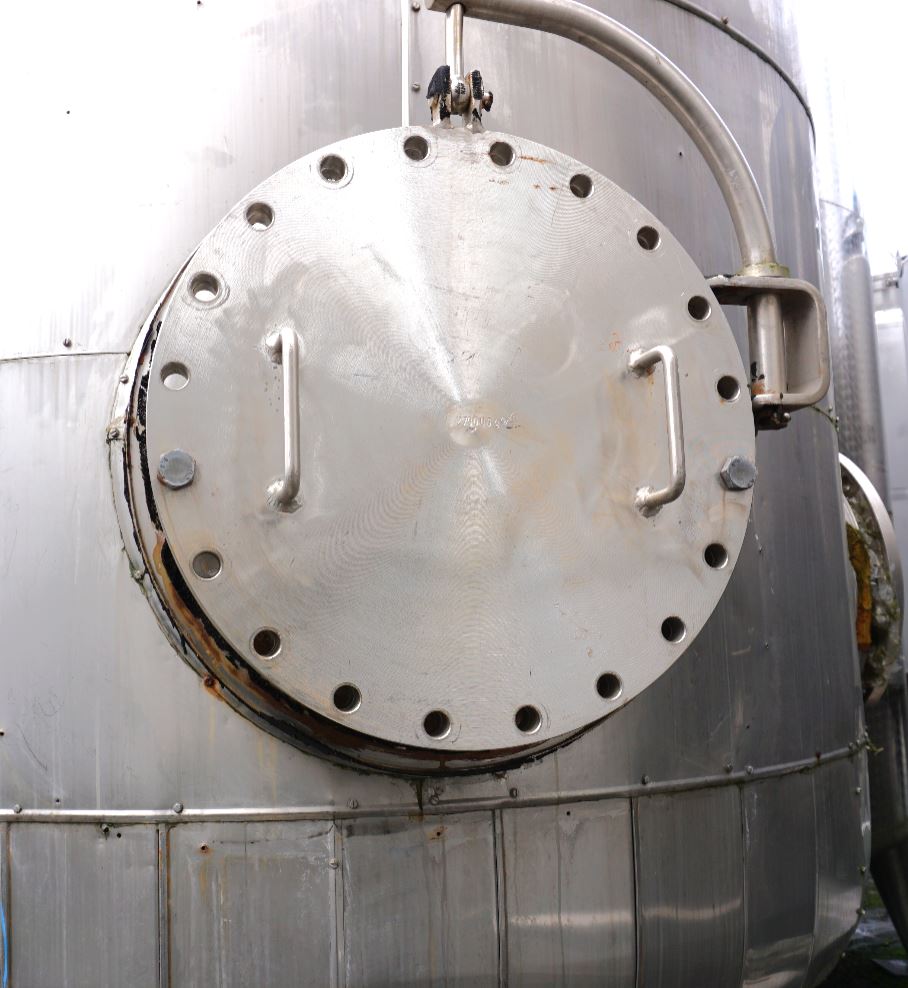

  • Manway 1 size

  • 500 DN mm

  • Manway position

  • In shell

  • Nozzle connector

  • Flange

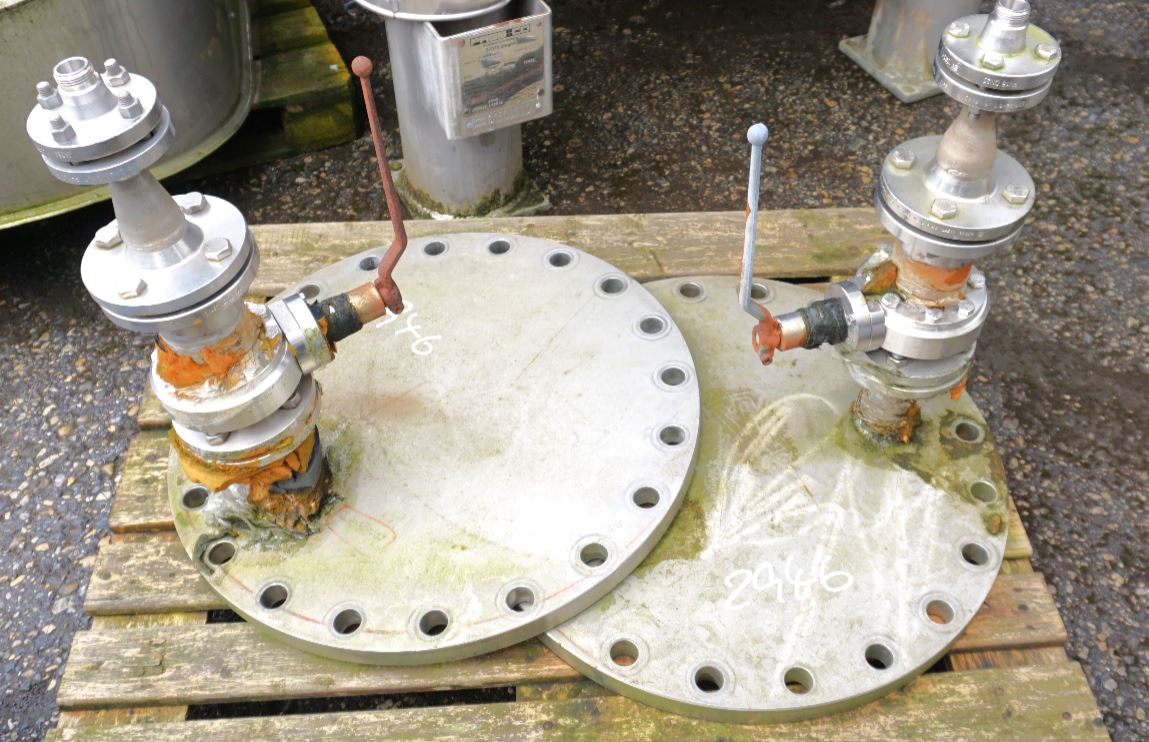

  • Nozzles/connectors in shell

  • 4xDN 490 1xDN50 (piece)

  • Additional fixtures and fittings

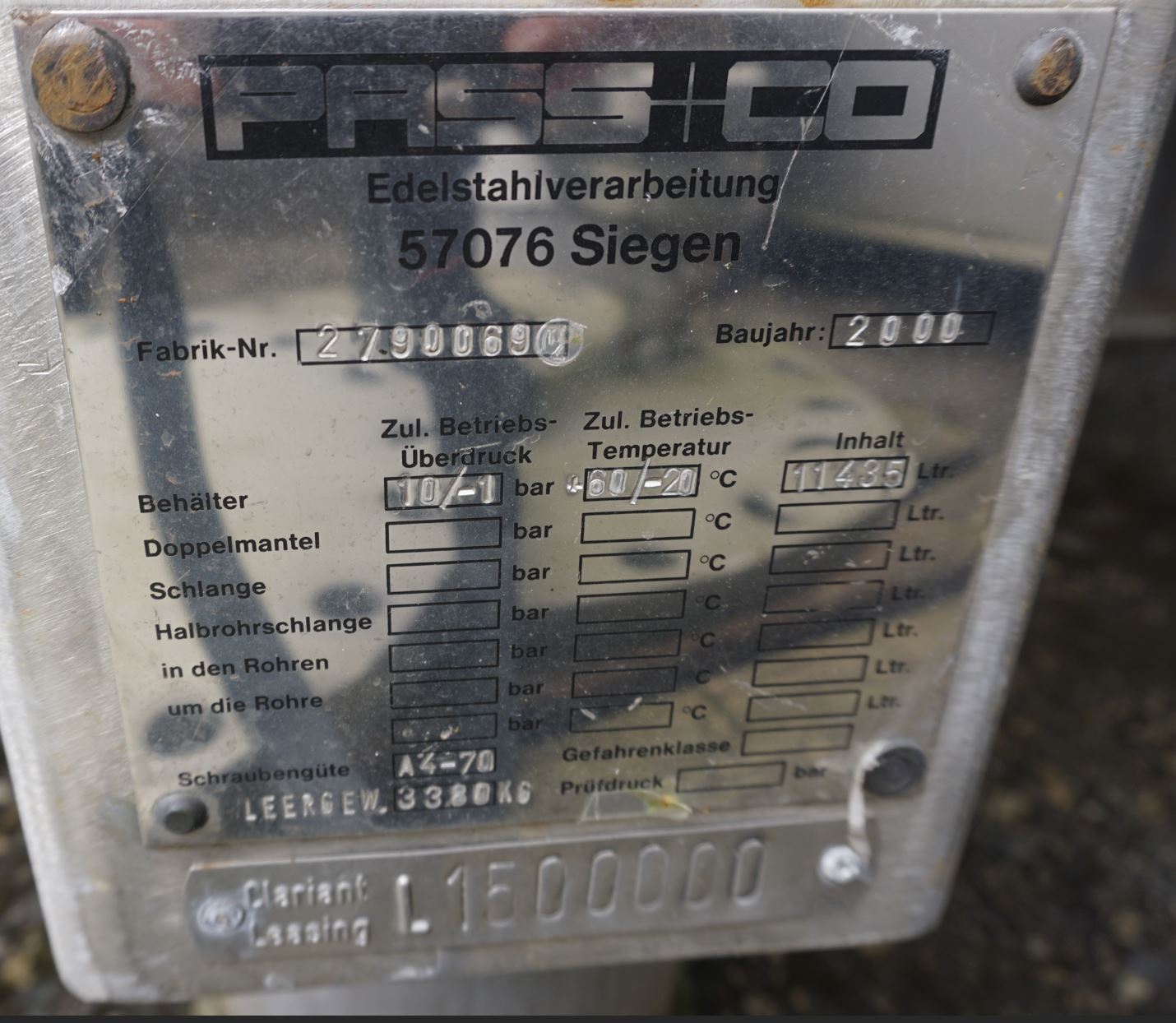

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Chemical tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank,
