Product no. M-2812

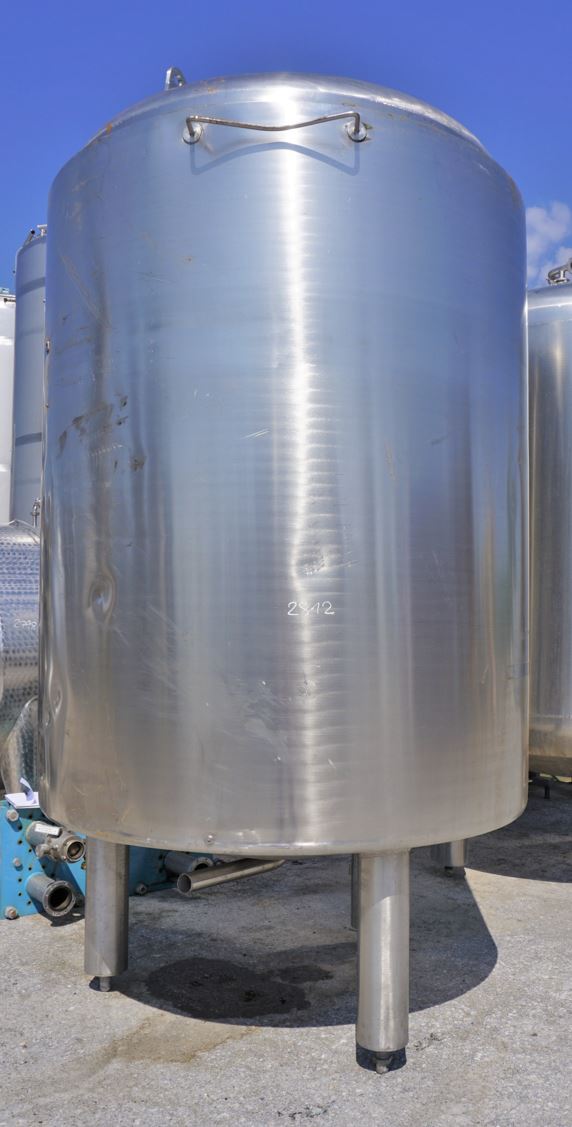

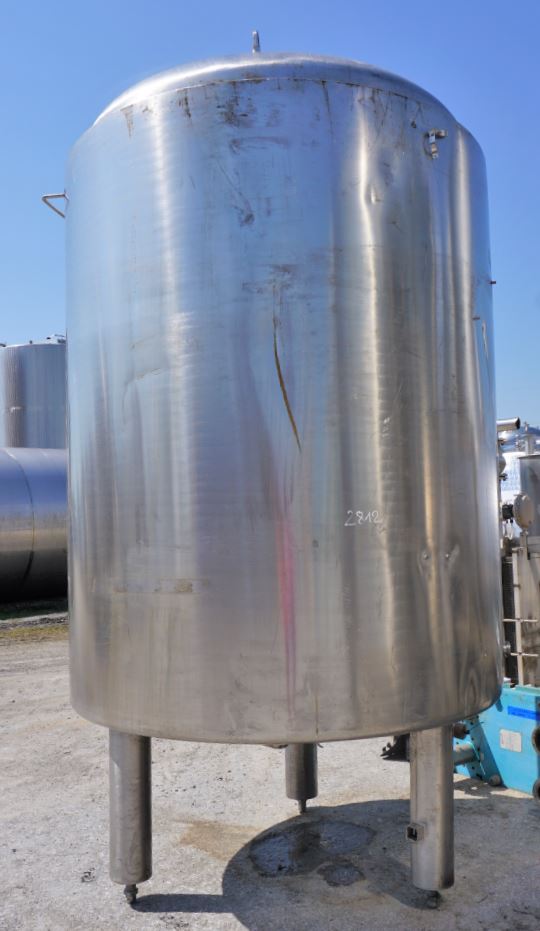

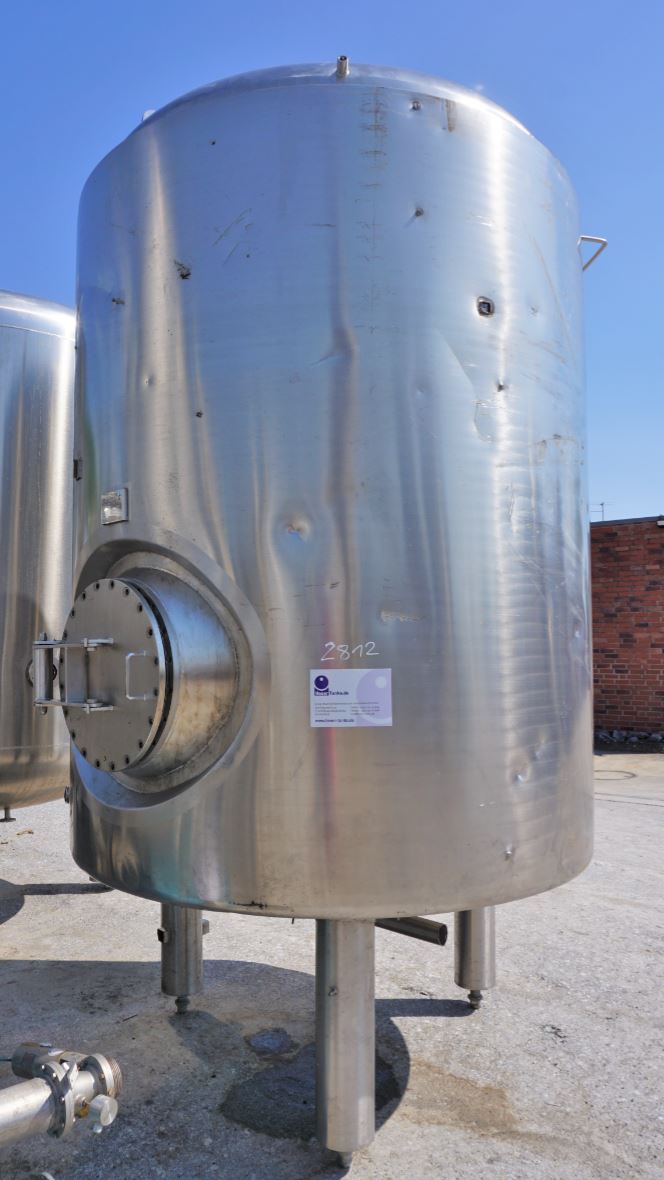

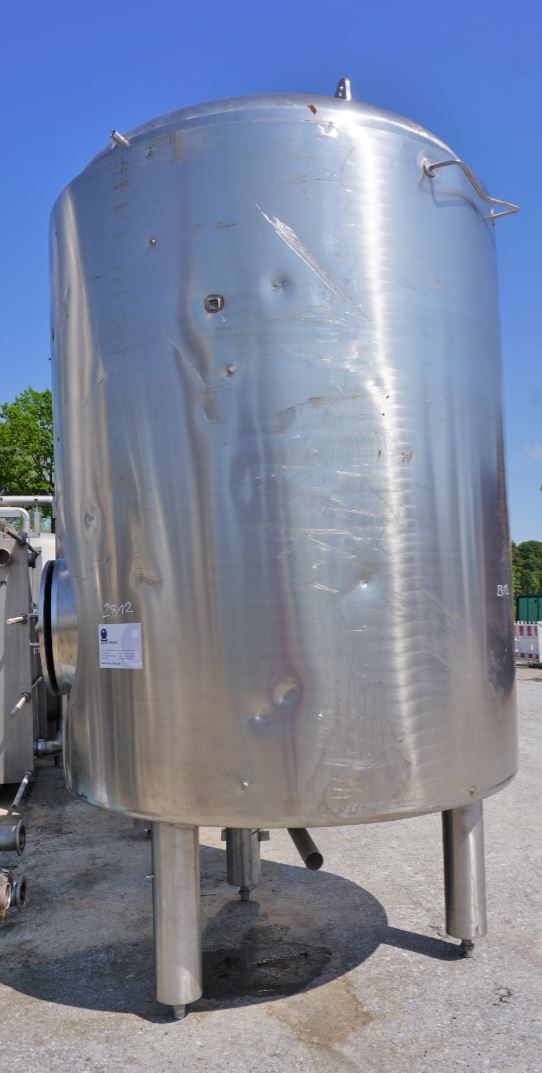

Pressure tank 5.600 liters made of V2A isolated, used, standing

EUR 6.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 5,600.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 5.600 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 5,600.00 litres. The diameter inside includes 1,700 mm.  Pressure tank 5.600 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Volume approx.

  • 5.600,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1994

  • Manufacturer

  • Apparate u. Behälter Harrislee

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.700 mm

  • External diameter

  • 1.820 mm

  • Cyl. height

  • 2.200 mm

  • Foot height

  • 780 mm

  • Total height

  • 3.500 mm

Design

  • Weight approx.

  • 1.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

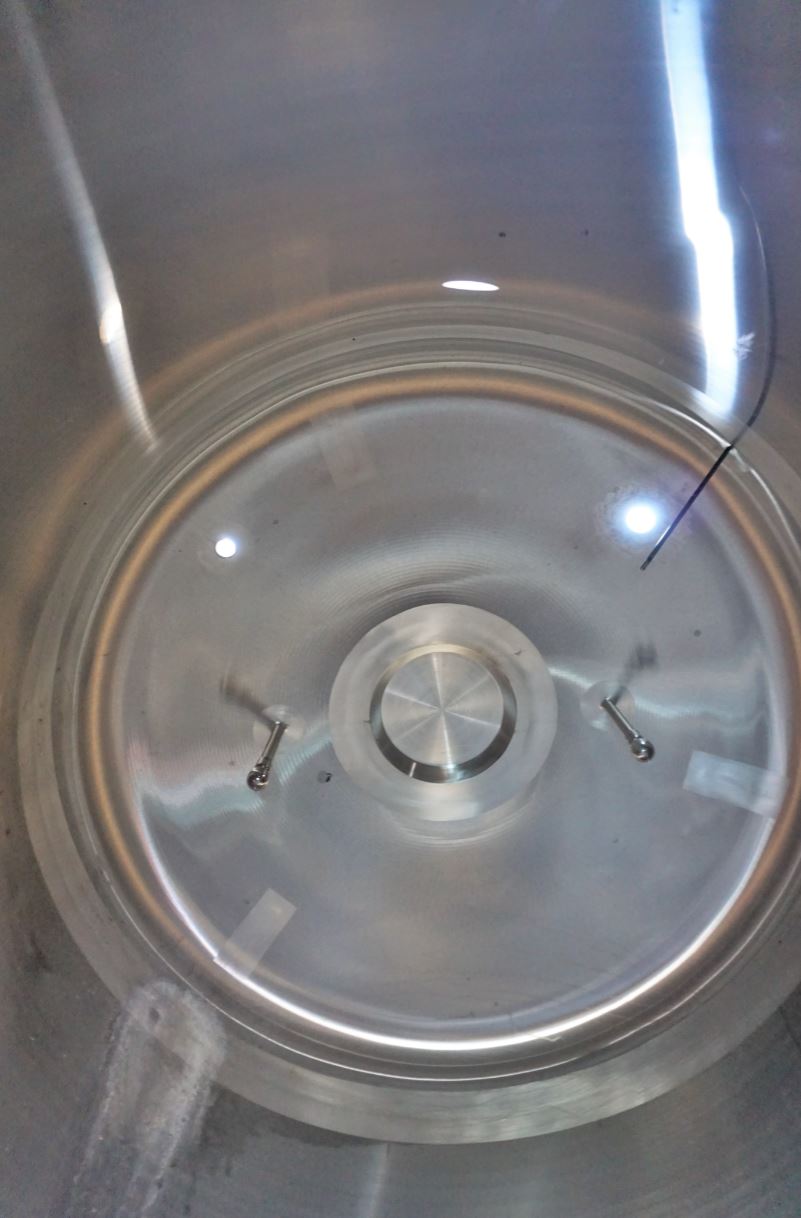

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

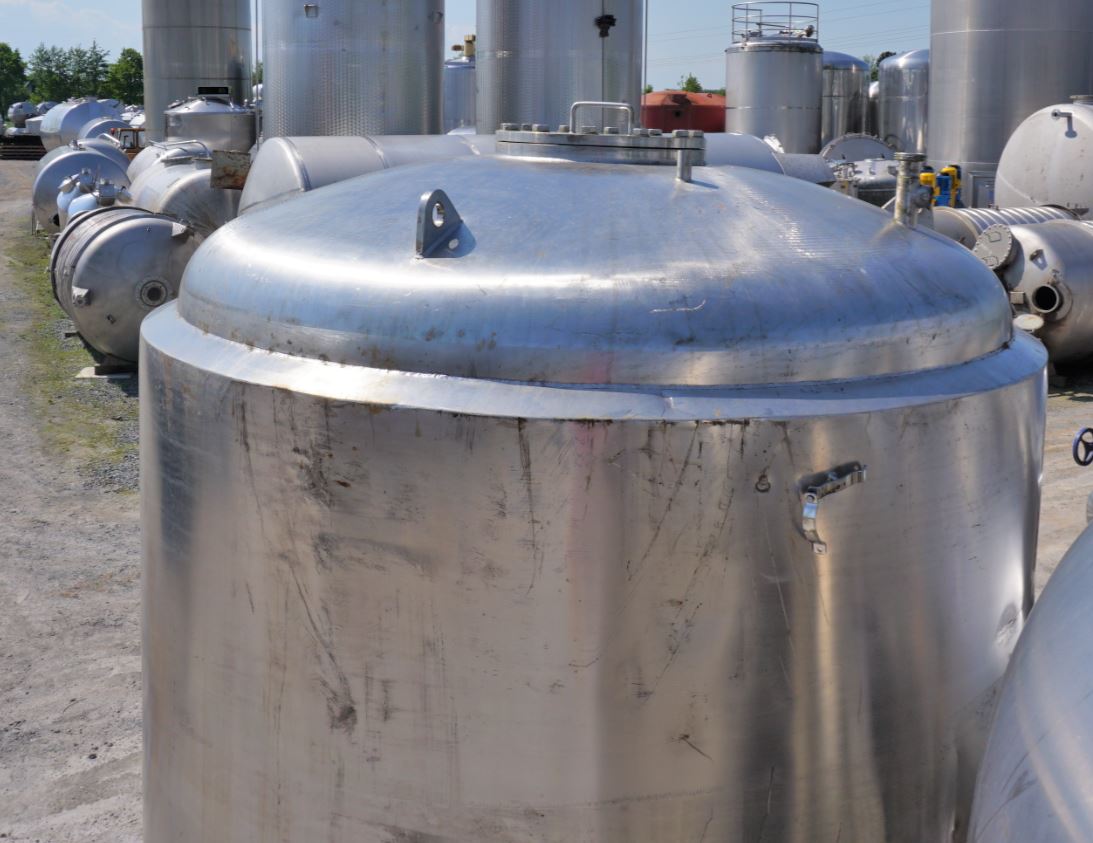

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 3,20 bar

  • Product chamber operating under-pressure

  • -1 bar

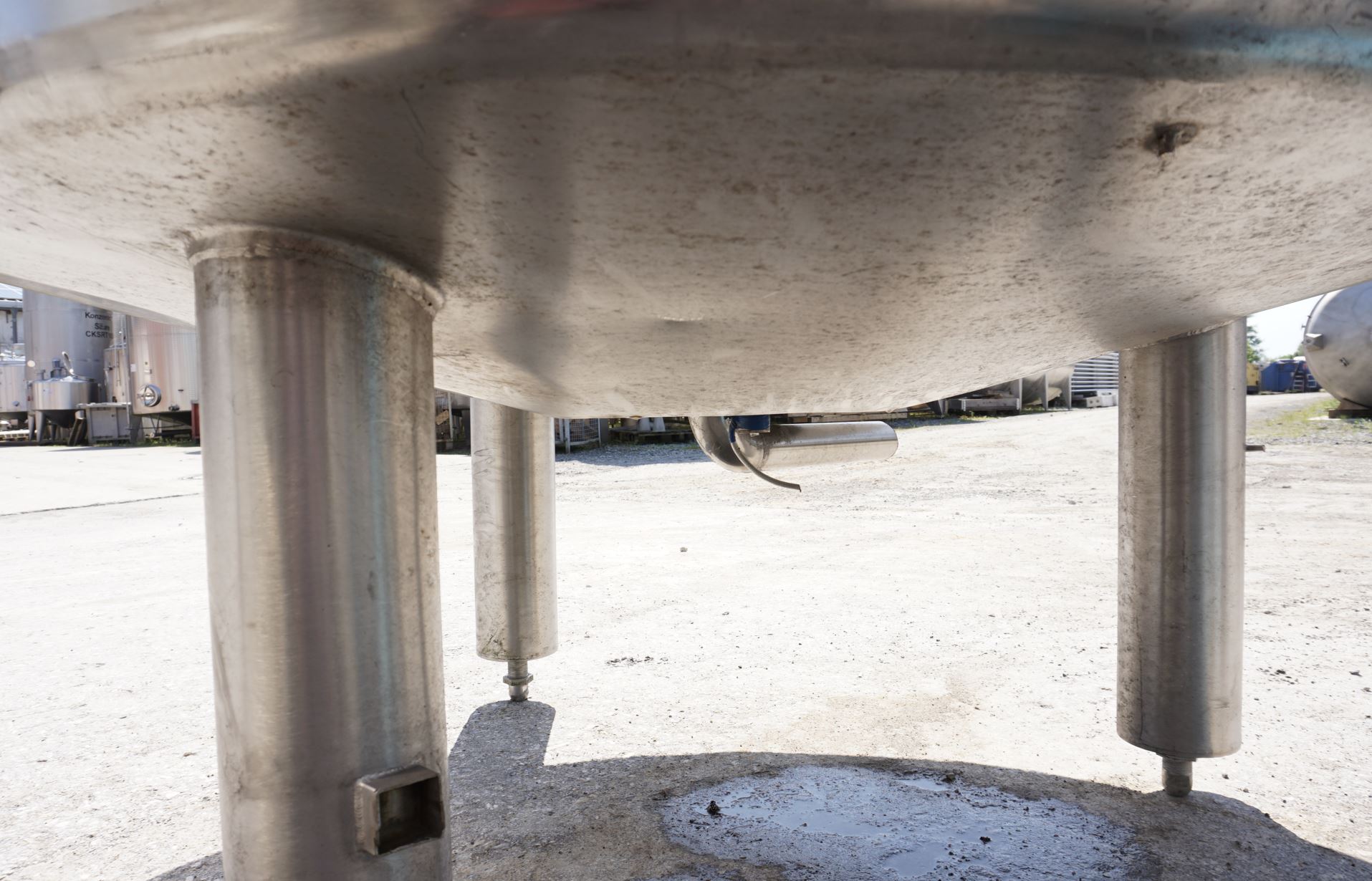

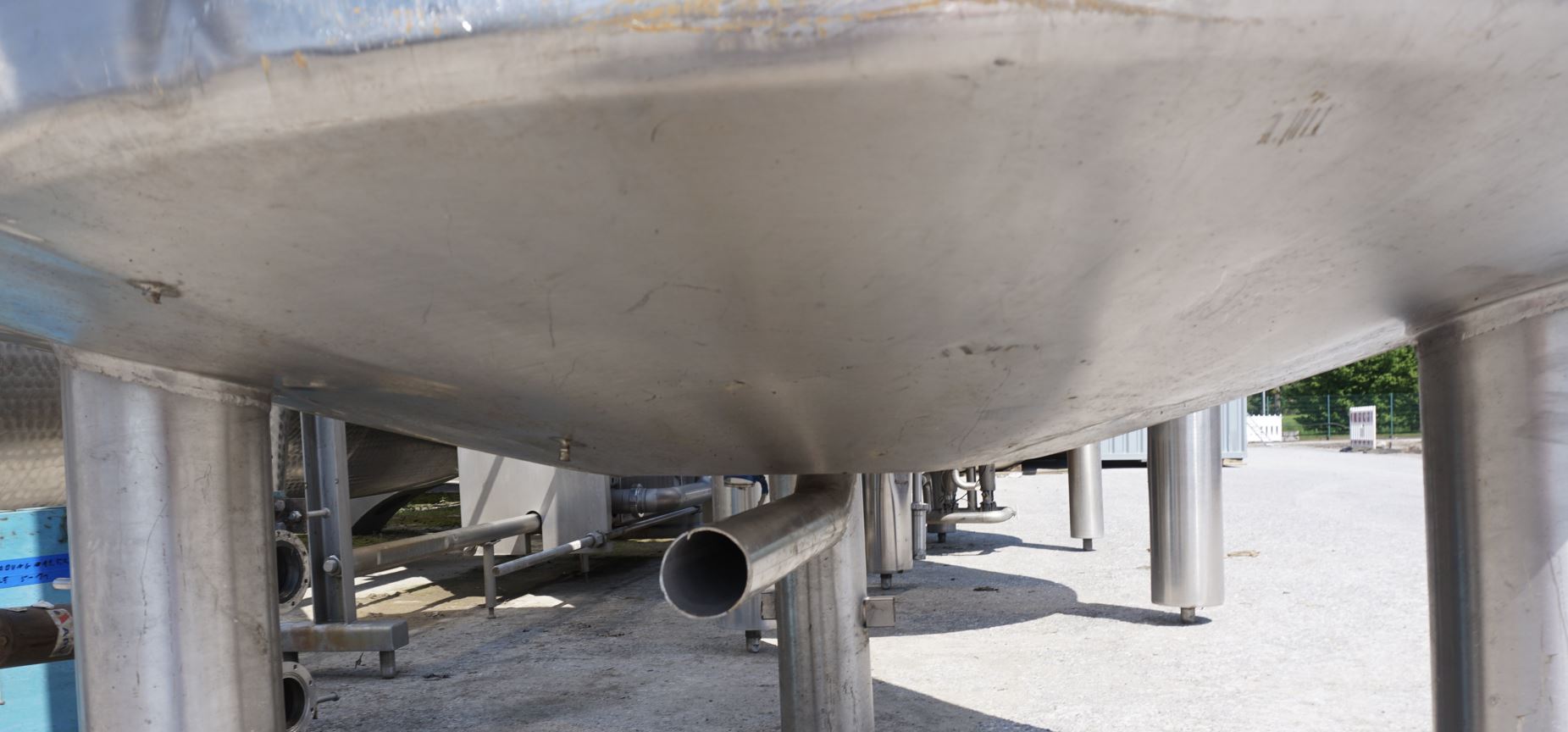

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

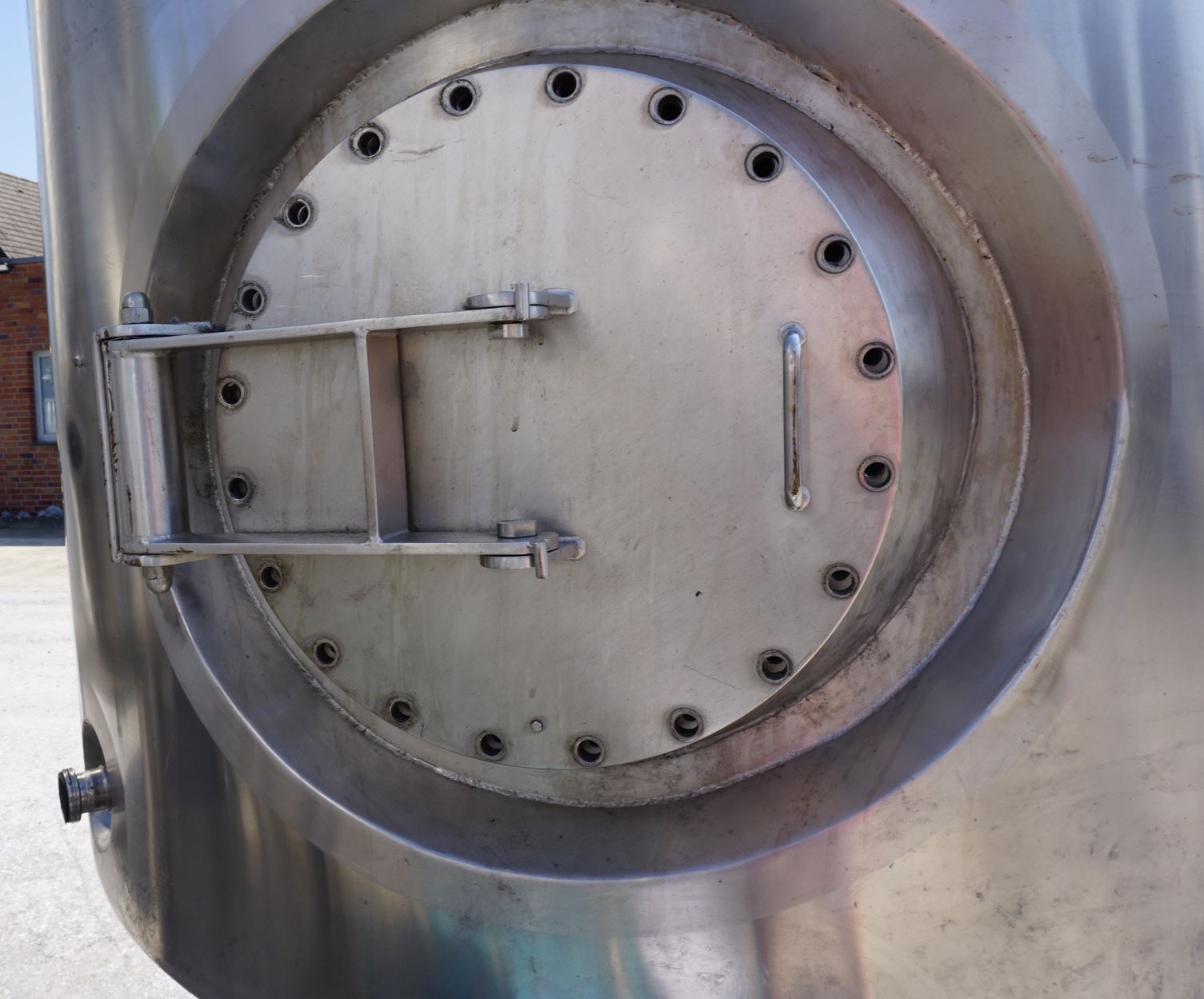

  • Manway position

  • In shell

  • Nozzles/connectors in shell

  • 1xDN50 (piece)

  • Nozzles/connectors in head

  • 2xDN50 (piece)

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Ladder stay

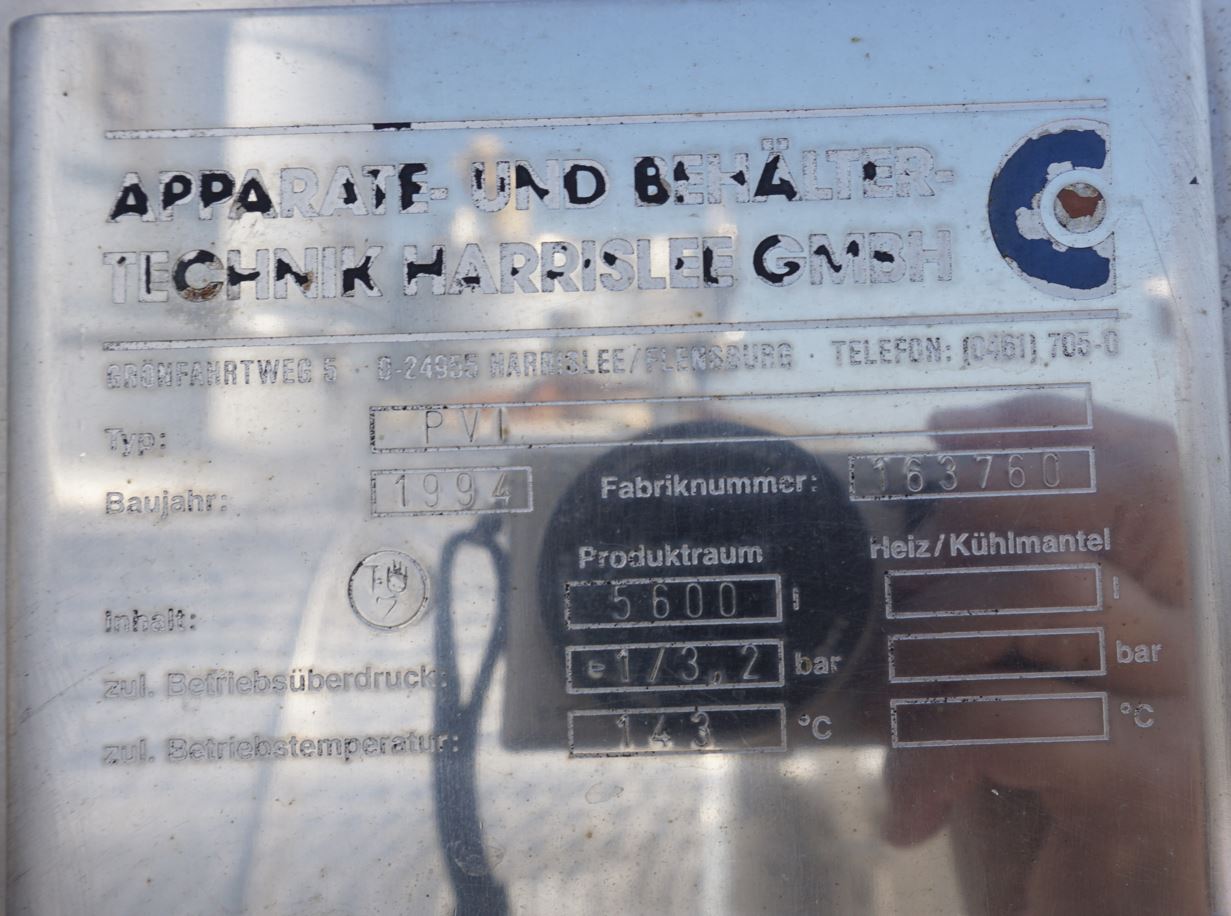

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Kratzer und kleine Beulen in der Isolierverkleidung

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Fruit juice tank, Spirituous beverages tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank,

Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Pressure tank,
