Product no. M-2857

Pressure tank 5.850 liters made of V4A temperature-controllable, isolated, used, standing

EUR 14.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 5,850.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

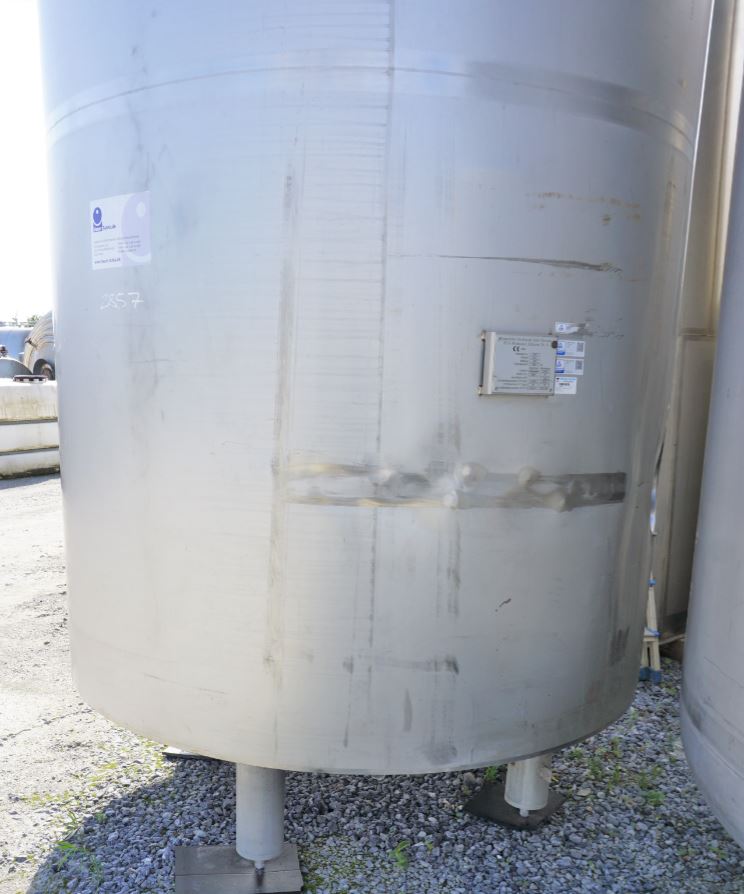

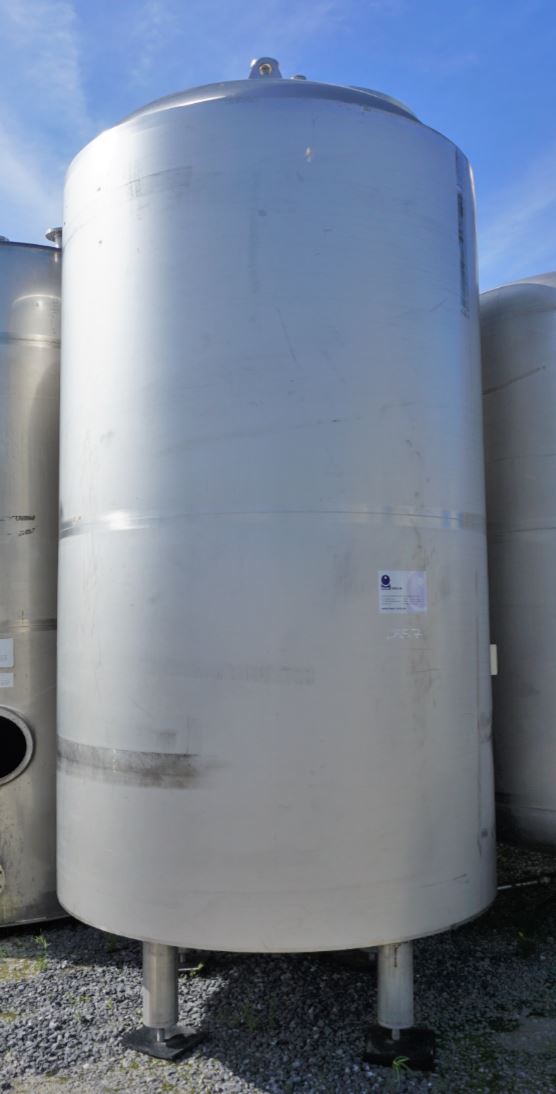

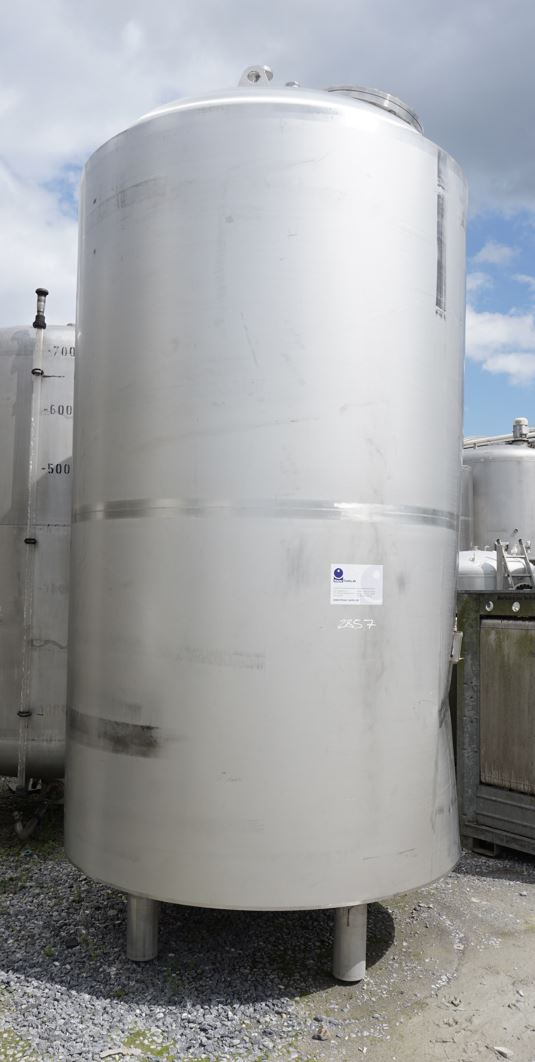

Pressure tank 5.850 liters made of V4A temperature-controllable, isolated, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 5,850.00 litres. The diameter inside includes 1,600 mm.  Pressure tank 5.850 liters made of V4A temperature-controllable, isolated, used was last used in the following area: Pharmaceuticals. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure, Processes,

General

  • Volume approx.

  • 5.850,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2004

  • Manufacturer

  • Apparatebau Nordhausen

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.600 mm

  • External diameter

  • 1.800 mm

  • Cyl. height

  • 2.960 mm

  • Foot height

  • 430 mm

  • Total height

  • 4.200 mm

Design

  • Weight approx.

  • 1.800,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

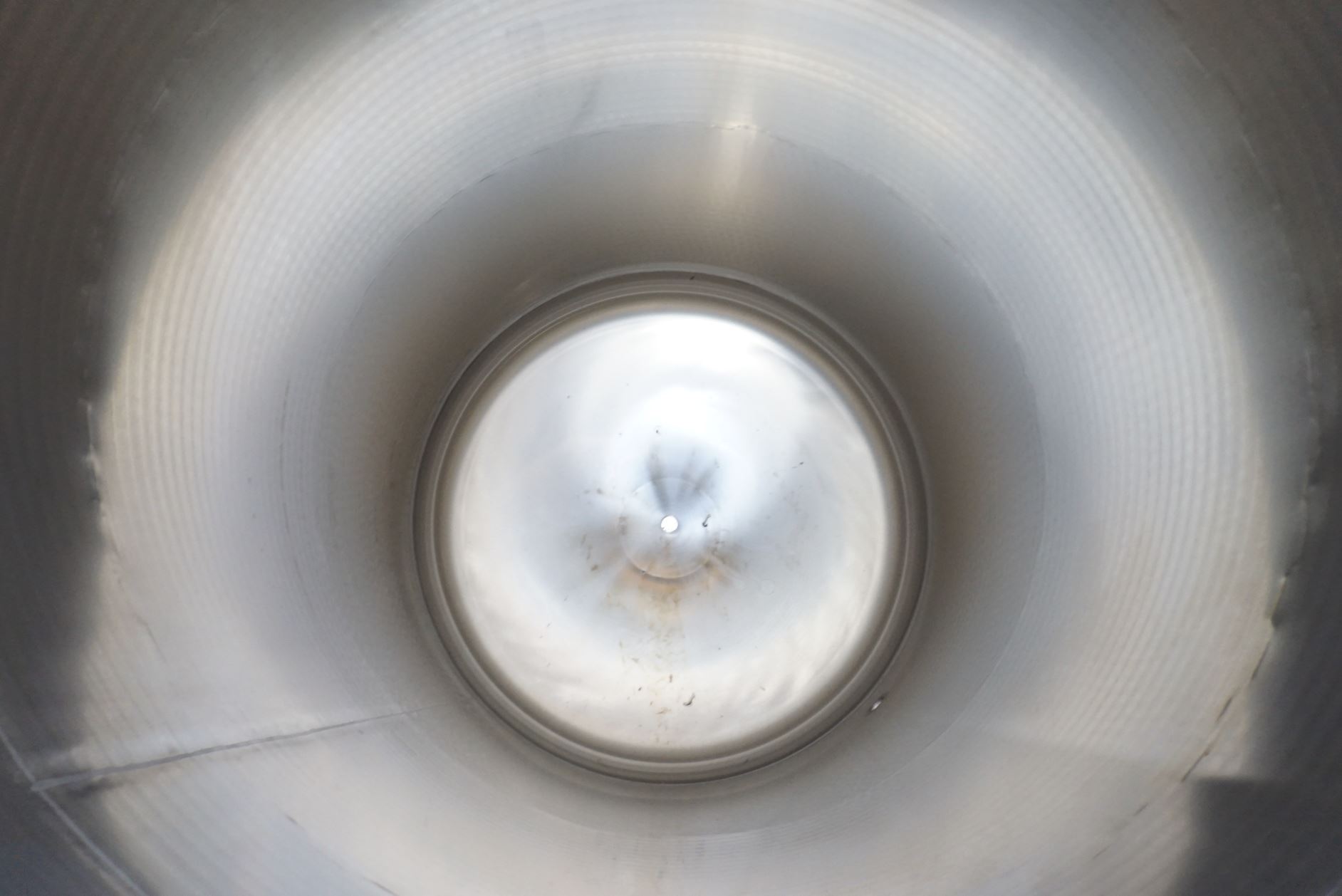

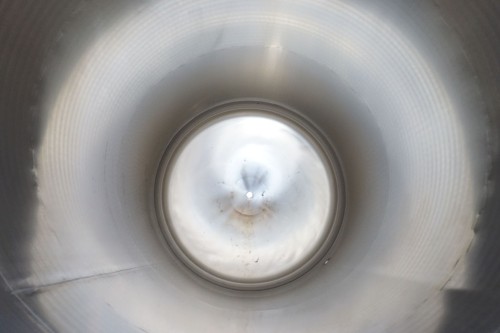

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 2,50 bar

  • Product chamber operating under-pressure

  • -1 bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell area

  • Temperature control system

  • Half-pipe coils

  • Operating temperature

  • -10/140 °C

  • Heating medium

  • Steam

  • Temperature control system operating pressure/pipe chamber

  • 3,5 bar

  • Temperature control system operating temperature/pipe chamber

  • 140 °C

  • Temperature control system/pipe chamber capacity

  • 70 litres

Supports

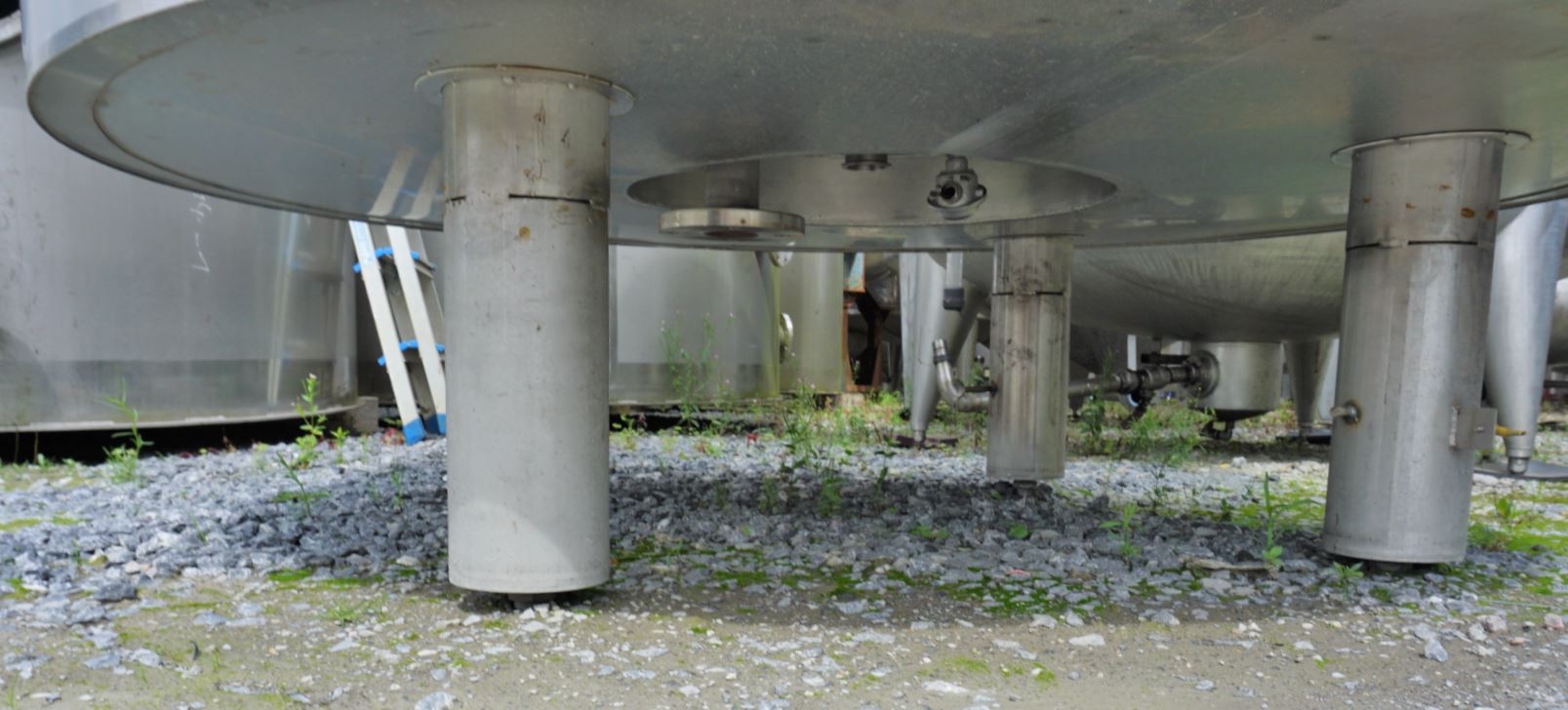

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • höhenverstellbar, Fußverkleidung eingeflext

Fixtures and fittings

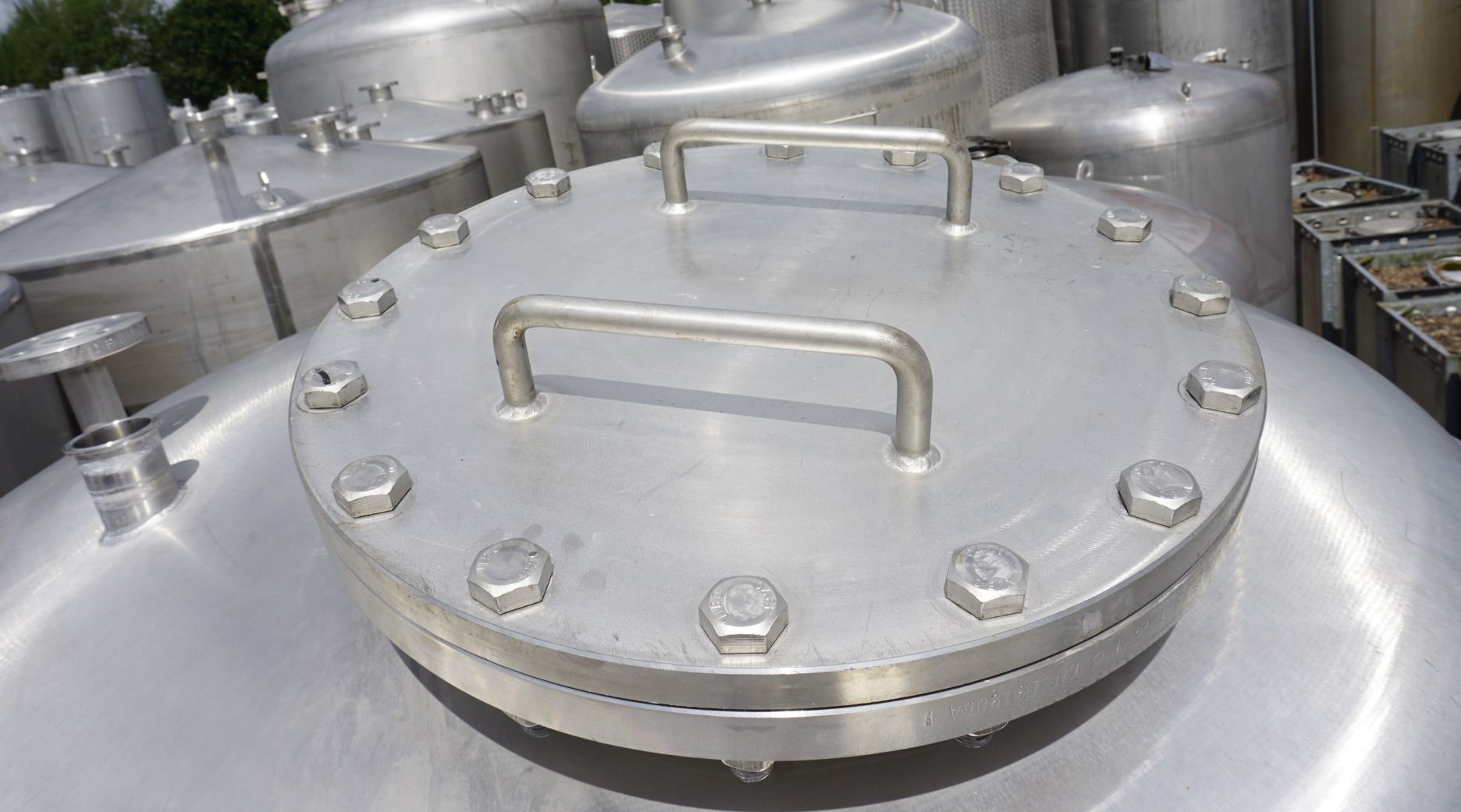

  • Manway 1 size

  • 400 DN mm

  • Manway position

  • In head

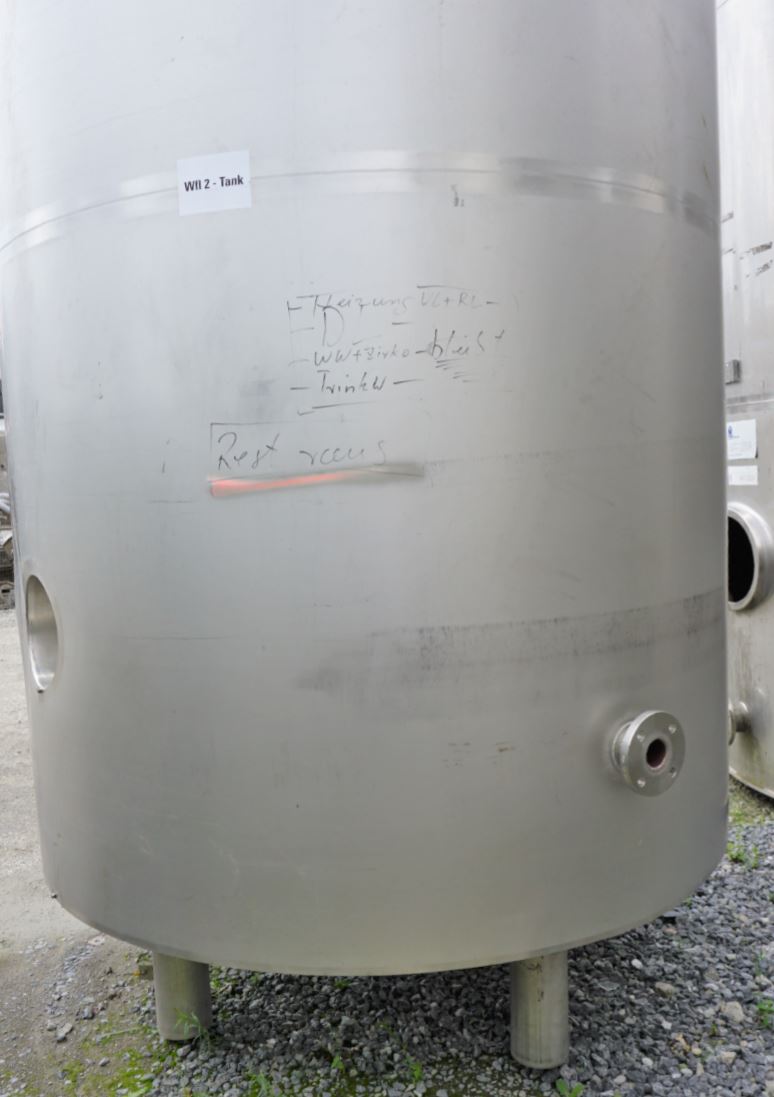

  • Outlet nozzle

  • 50

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

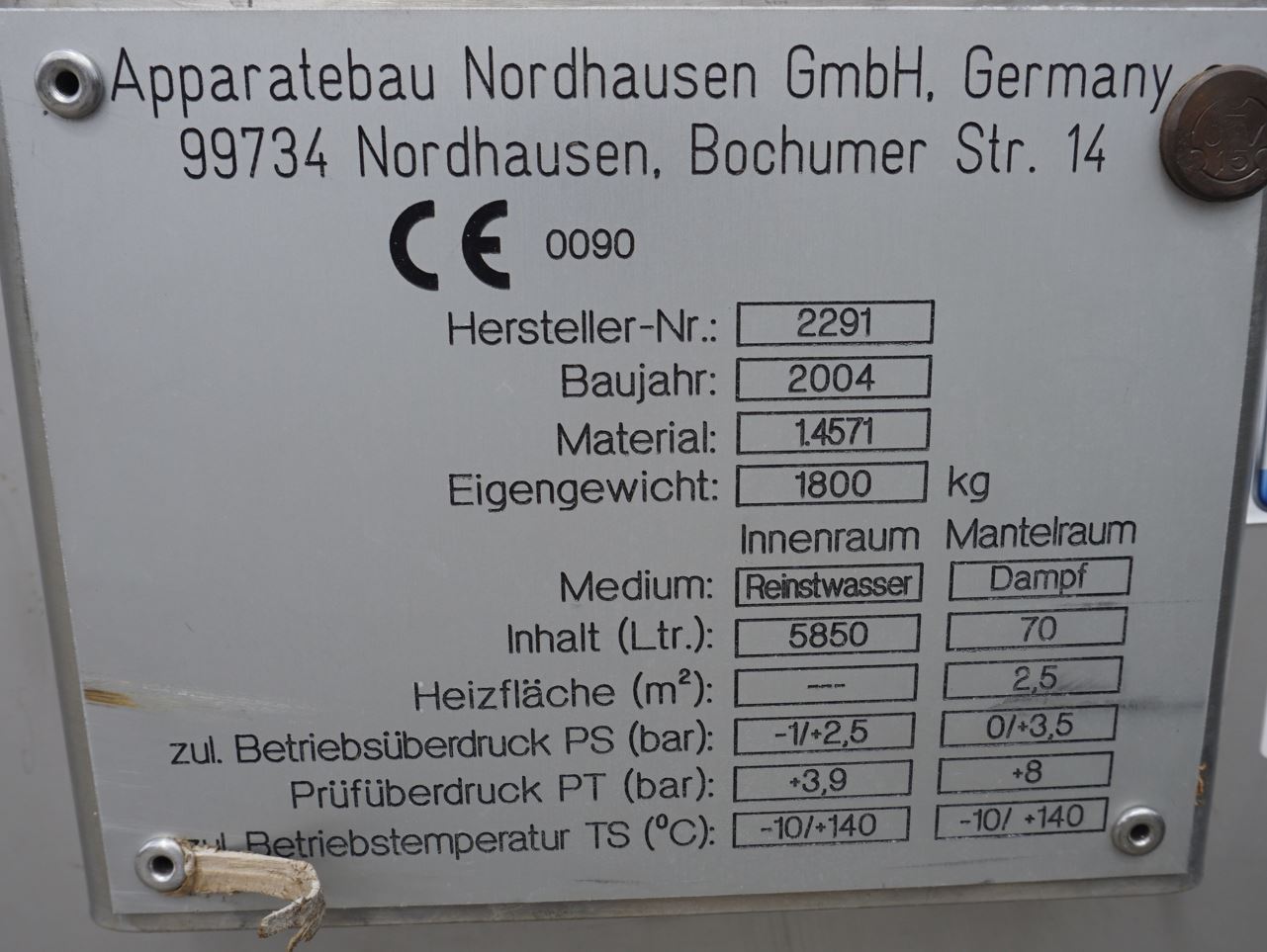

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Kleine Beulen im Isoliermantel.

  • Last usage

  • Pharmaceuticals

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Fruit juice tank, Spirituous beverages tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, Process tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, Process tank,

Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Pressure tank, Process tank,
