Product no. M-2652

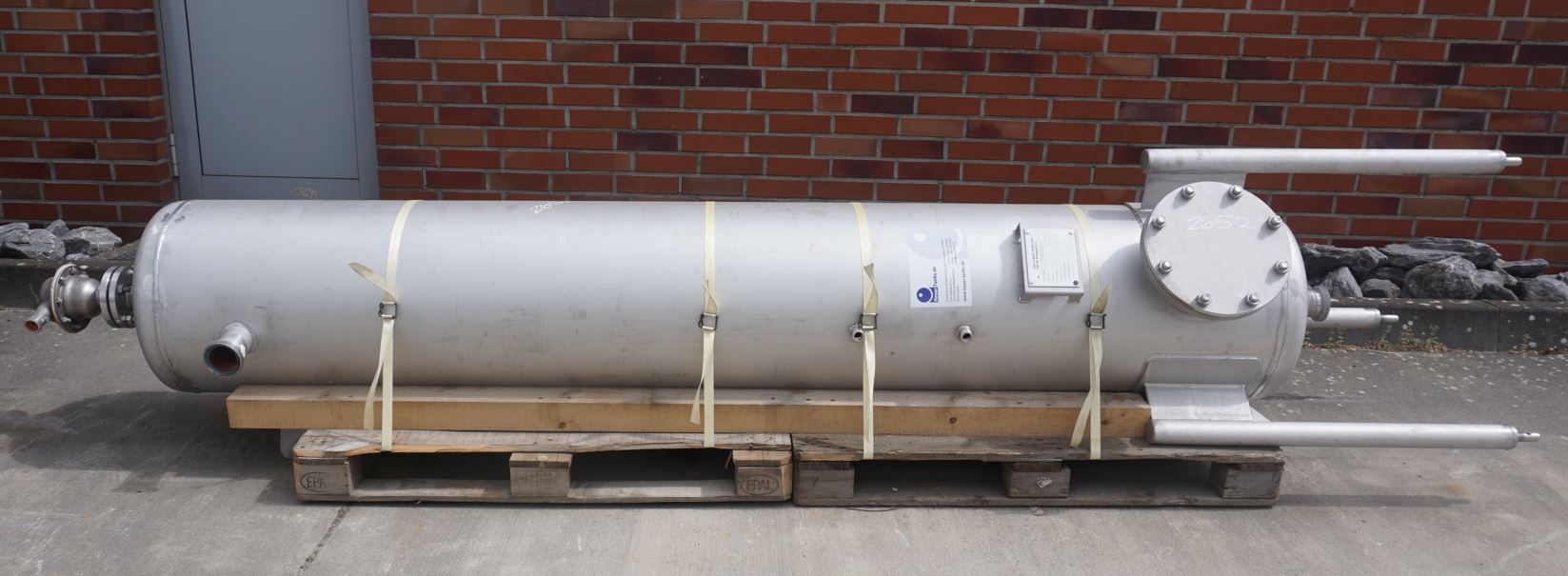

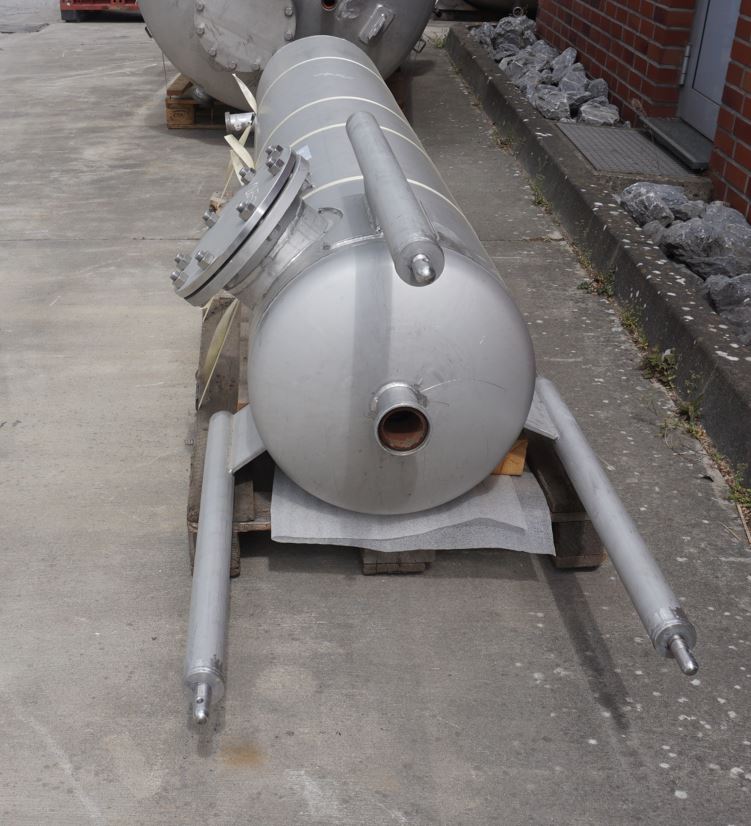

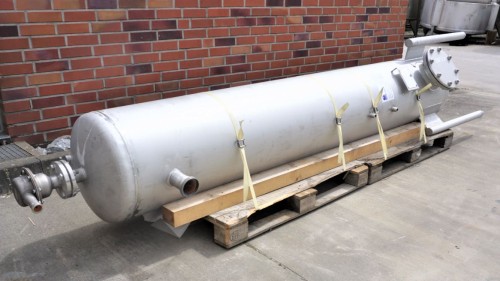

Pressure tank 550 liters made of V4A, single-walled, used, standing

EUR 2.100,00

add. 19 % VAT excl. shipping costs


Volume approx. 550.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 550 liters made of V4A, single-walled, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 550.00 litres.  Pressure tank 550 liters made of V4A, single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Filtering, Under/over-pressure,

General

  • Volume approx.

  • 550,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1996

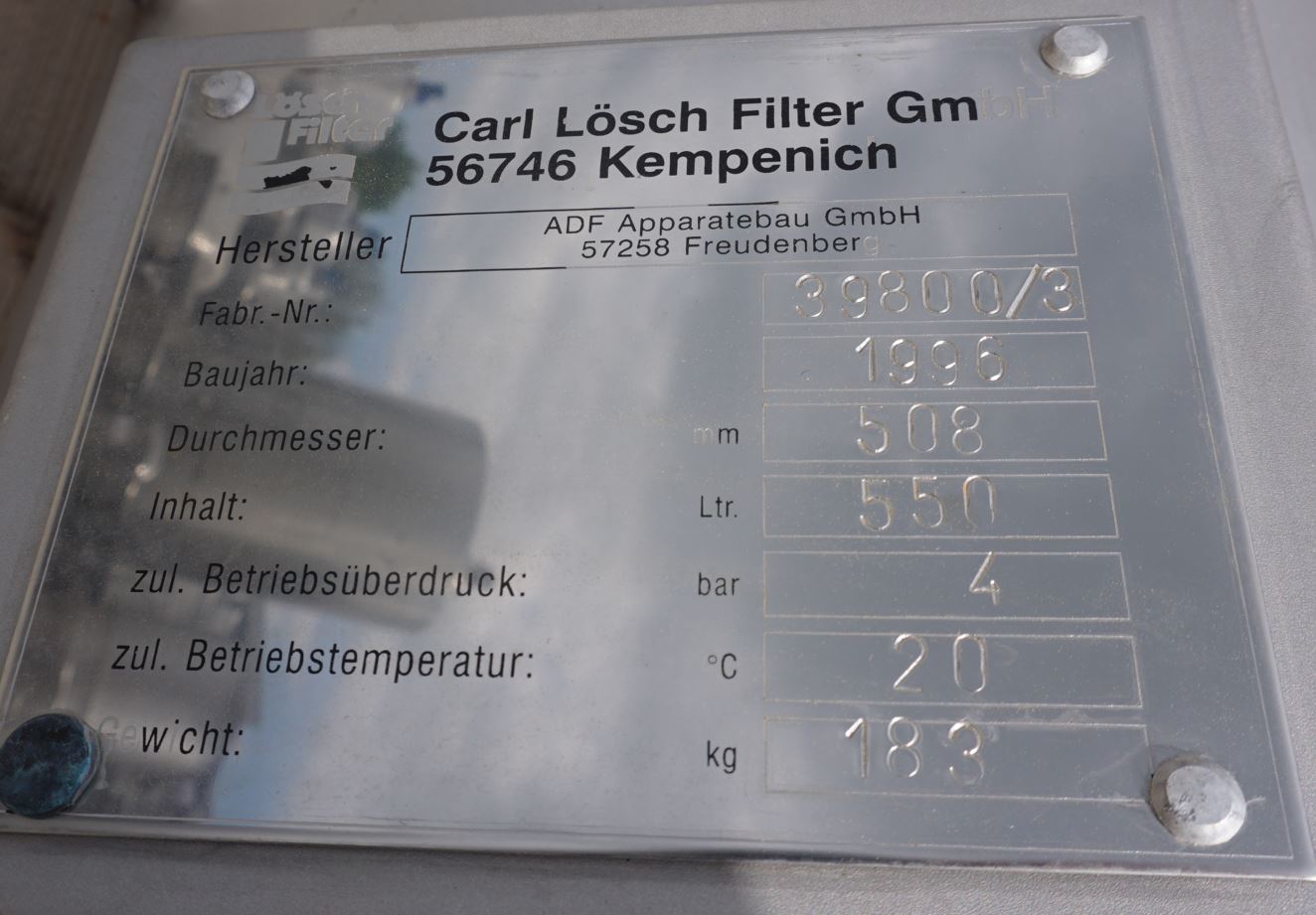

  • Manufacturer

  • ADF Apparatebau Freudenberg

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 508 mm

  • Cyl. height

  • 2.750 mm

  • Foot height

  • 630 mm

  • Total height

  • 3.600 mm

Design

  • Weight approx.

  • 183,00 kg

  • Insulation

  • no

  • Interior surface

  • Matt

  • Exterior surface

  • Matt

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 4,00 bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

  • Manway 1 size

  • 210 DN mm

  • Manway position

  • In shell

  • Nozzles/connectors in shell

  • 1xDN65 (piece)

  • Nozzles/connectors in head

  • 1xDN50 (piece)

  • Outlet nozzle

  • 65

Other

  • Note

  • Filterbehälter mit Düsenboden

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Pressure tank, Filter tank,

Chemistry and pharmaceuticals : IBC container, Storage tank, Pressure tank, Filter tank,
