Product no. M-3077

Pressure tank 6.815 liters made of V4A temperature-controllable, used, hanging

EUR 10.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 6,815.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 6.815 liters made of V4A temperature-controllable, used consists of the material 1.4404(AISI316) V4A. The volume is approx. 6,815.00 litres.  Pressure tank 6.815 liters made of V4A temperature-controllable, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering, Mixing, Under/over-pressure, Reactor,

General

  • Volume approx.

  • 6.815,00 litres

  • Structure

  • Hanging

  • Year of manufacture

  • 1993

  • Manufacturer

  • Apparatebau Pitton

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.000 mm

  • Cyl. height

  • 1.600 mm

  • Total height

  • 3.400 mm

Design

  • Weight approx.

  • 2.000,00 kg

  • Insulation

  • no

  • Interior surface

  • Matt

  • Exterior surface

  • Matt

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 6,00 bar

  • Product chamber operating under-pressure

  • -1 bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell area

  • Temperature control system

  • Half-pipe coils

  • Operating temperature

  • 250 °C

  • Temperature control system operating pressure/pipe chamber

  • 20,0 bar

  • Temperature control system operating temperature/pipe chamber

  • 250 °C

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Note on agitator

  • Ex-Motor entspricht den aktuellen Richtlinien

  • Agitator position

  • Head off-centre

  • Agitator manufacturer

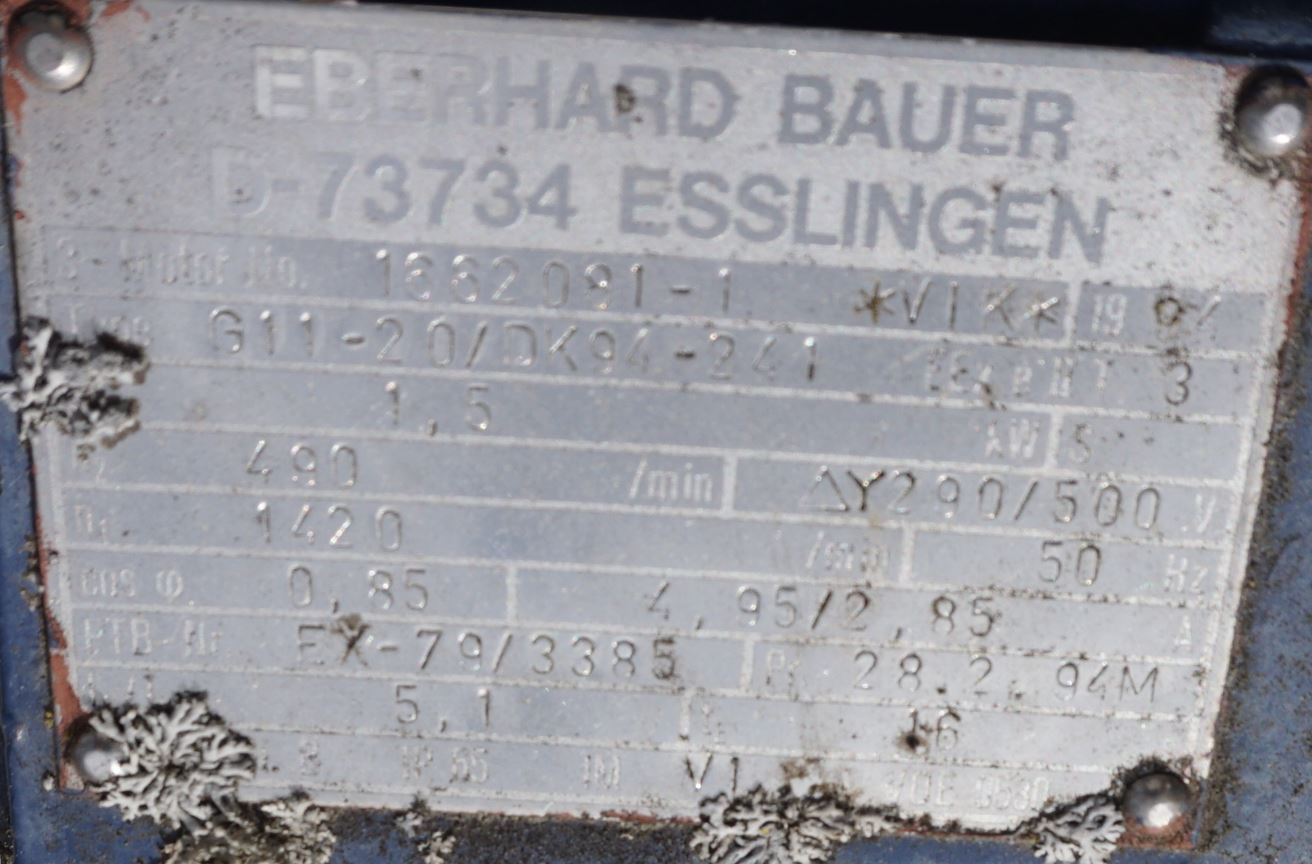

  • Eberhard Bauer

  • Agitator 1 - Output

  • 1,5 kW

  • Agitator 1 - RPM

  • 490 UpM

  • Agitator 1 - Voltage

  • 500 V

Supports

  • Supports

  • Bracket supports

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway 1 size

  • 400 DN mm

  • Manway position

  • In head

  • Nozzle connector

  • Flange

  • Nozzles/connectors in head

  • 5xDN100 (piece)

  • Outlet nozzle

  • 100

  • Additional fixtures and fittings

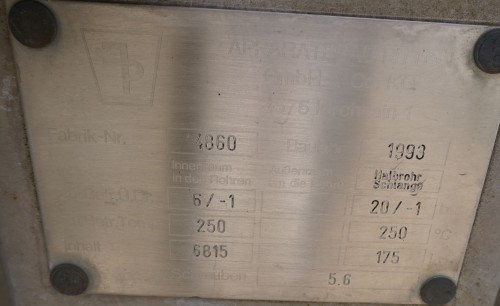

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Mixing tank, Pressure tank, Process tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Mixing tank, Pressure tank, Process tank,
