Product no. M-3144

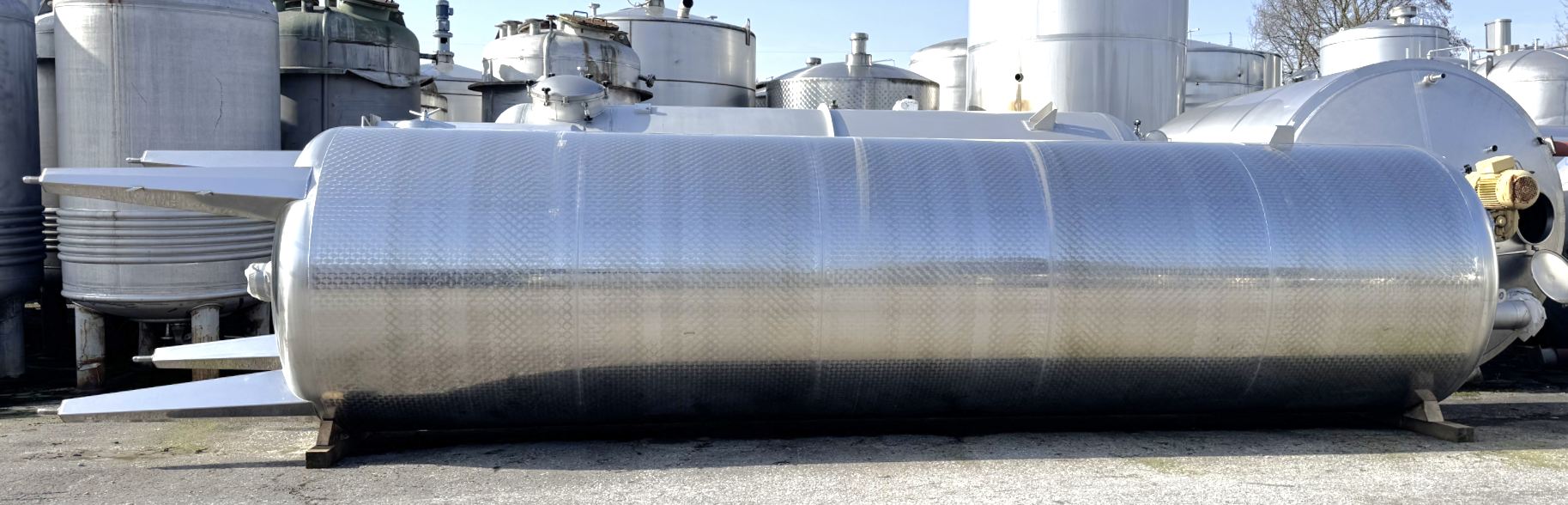

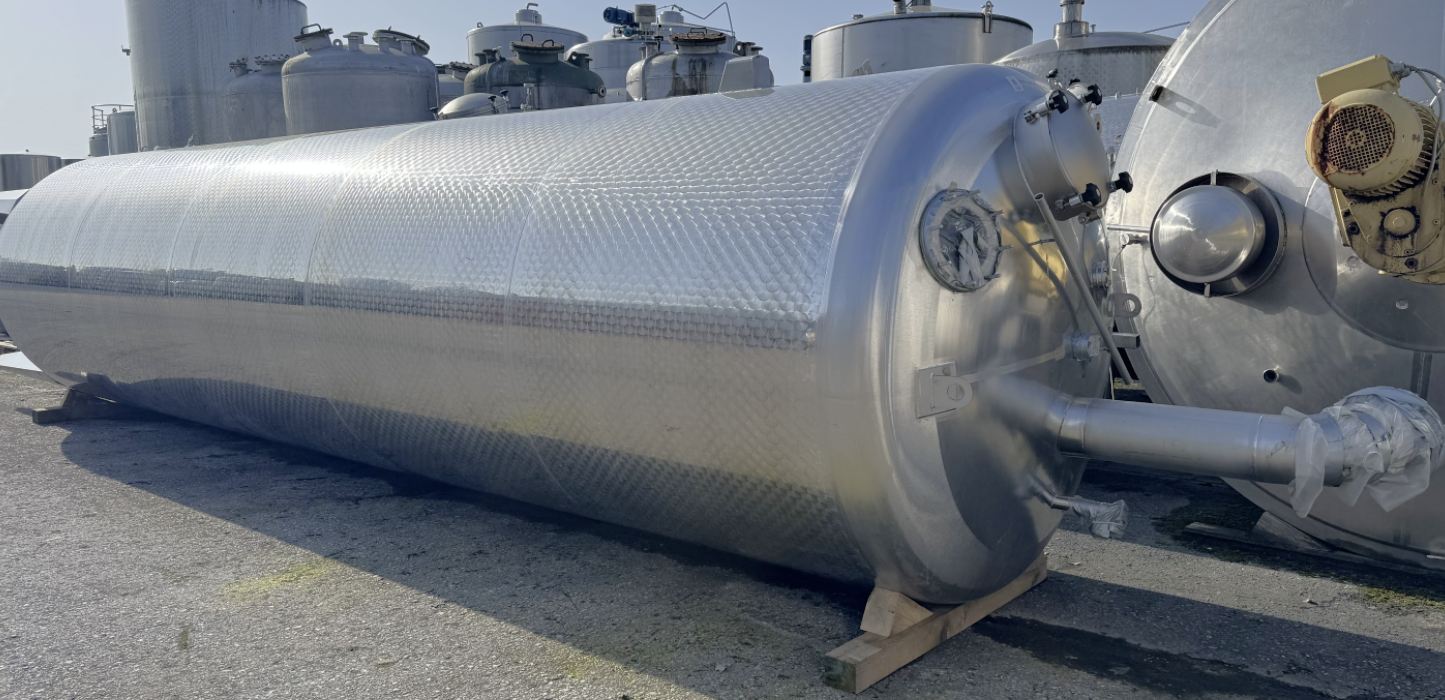

Konzentrattank 25.000 liters made of V2A, single-walled, used, standing
EUR 13.800,00
add. 19 % VAT excl. shipping costs
Volume approx. 25,000.00 litres
Product description
Konzentrattank 25.000 liters made of V2A, single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 25,000.00 litres. Konzentrattank 25.000 liters made of V2A, single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage,General
Volume approx.
25.000,00 litres
Structure
Standing
Year of manufacture
1996
Manufacturer
Möschle
Condition
Used
Dimensions approx.
External diameter
2.000 mm
Cyl. height
7.500 mm
Foot height
1.500 mm
Outlet height
1.000 mm
Total height
9.700 mm
Wall thickness of product chamber head
3,00 mm
Wall thickness of product chamber shell
3,00 mm
Wall thickness of product chamber floor
4,00 mm
Design
Weight approx.
2.000,00 kg
Weight per unit volume approx.
1.300,00 kg/m³
Insulation
no
Interior surface
Smoothed
Exterior surface
Marbled
Floor type
Torispherical bottom
Head design
Torispherical bottom

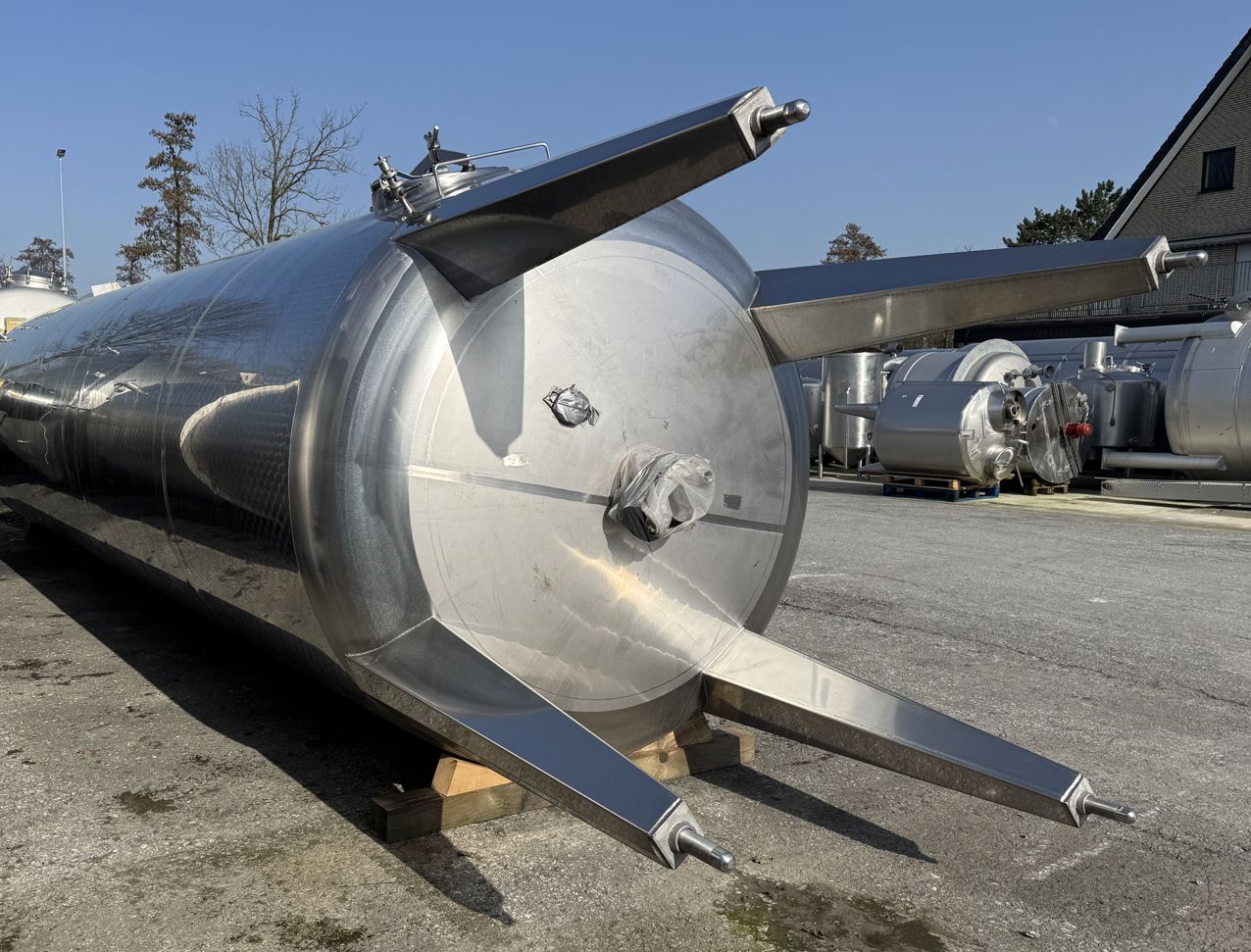

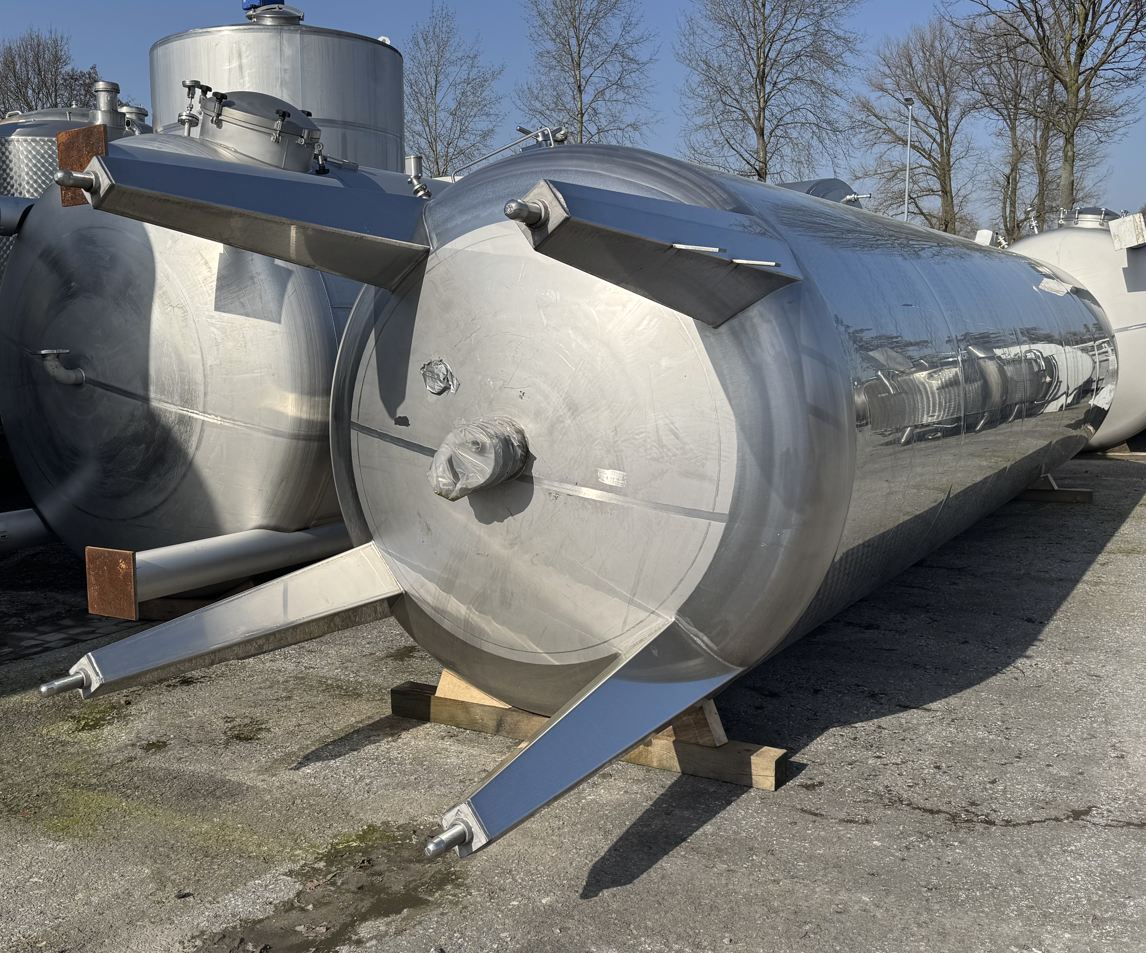

Supports
Supports
Stainless steel feet
Number of feet
4 (piece)
Note on supports
höhenverstellbar
Fixtures and fittings

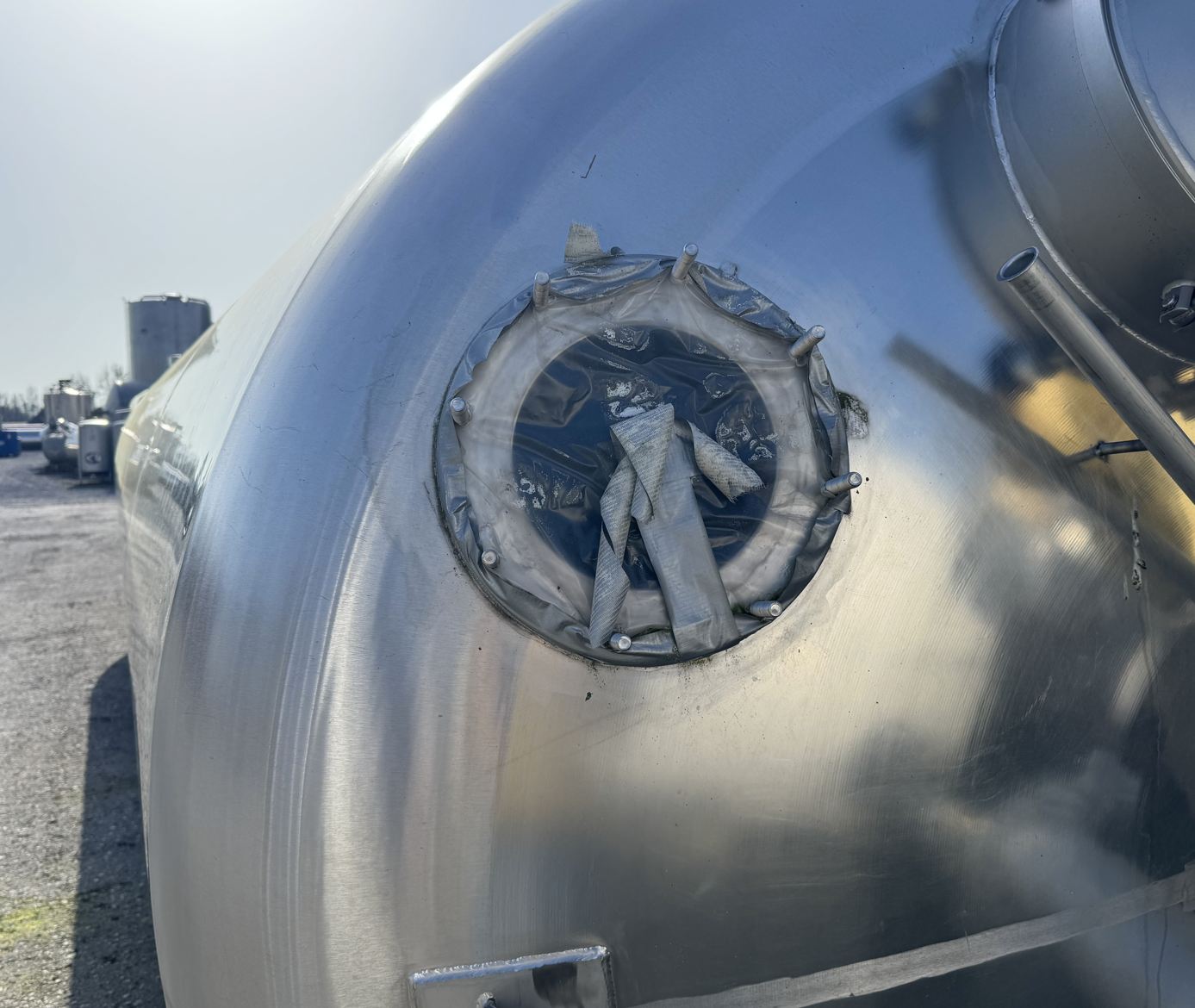

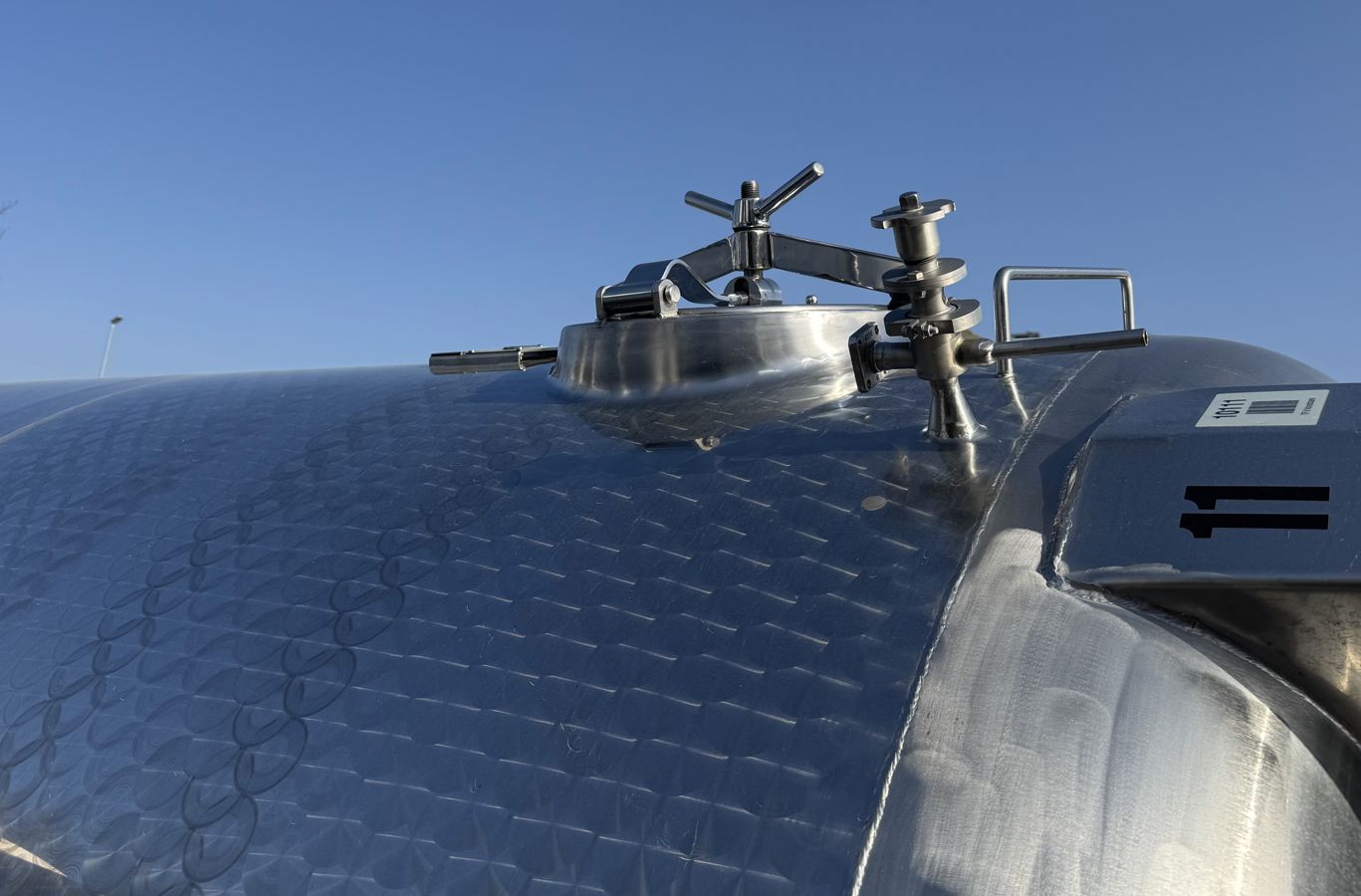

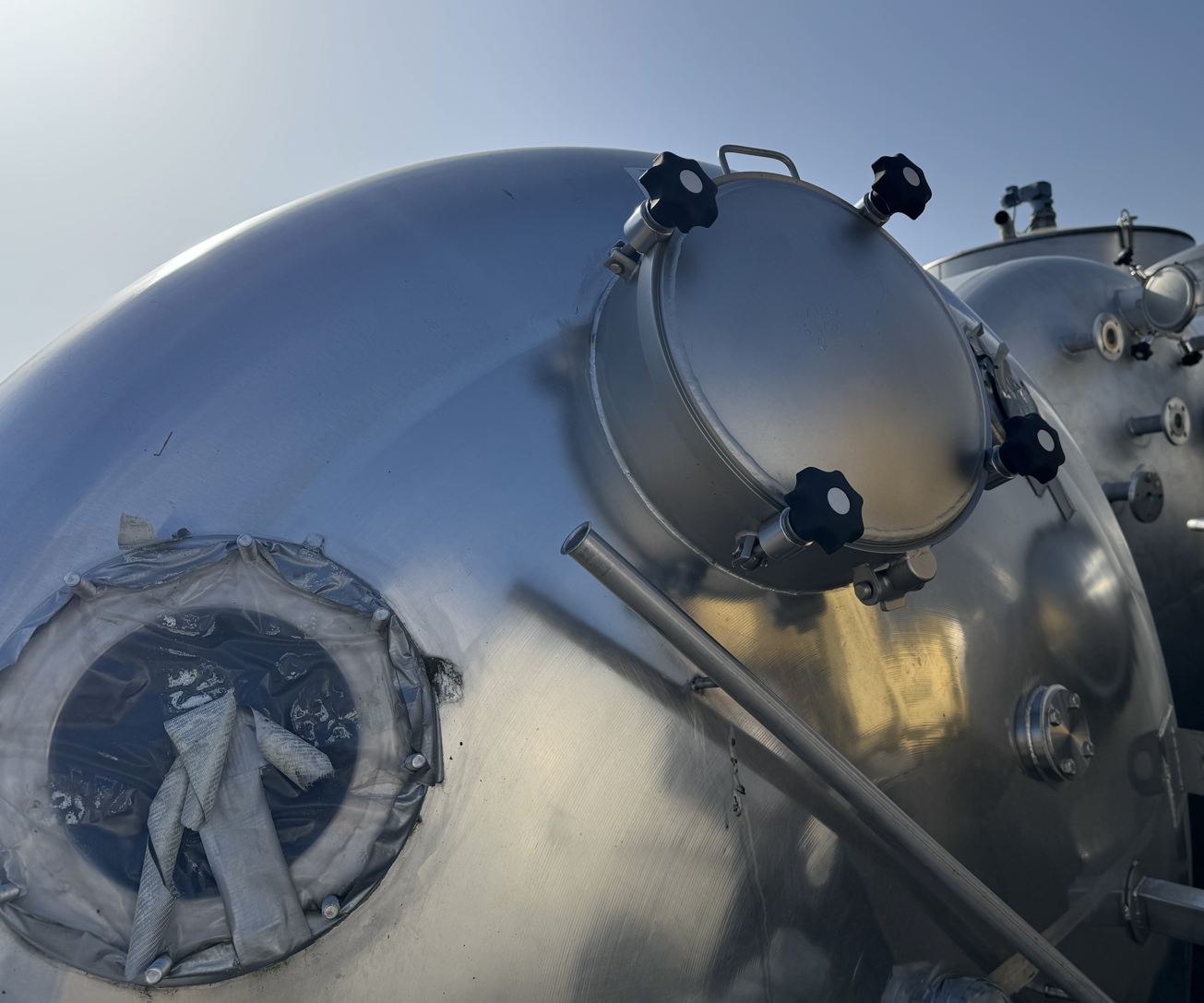

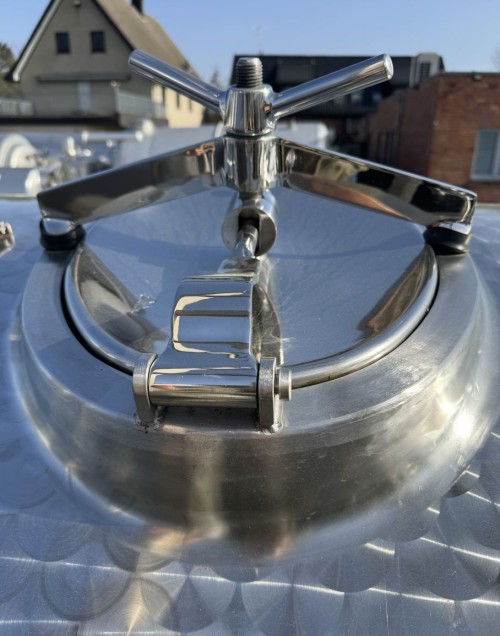

Manway 1 size
340x440 DN mm
Manway 2 size
400 DN mm
Manway position
In shell and head

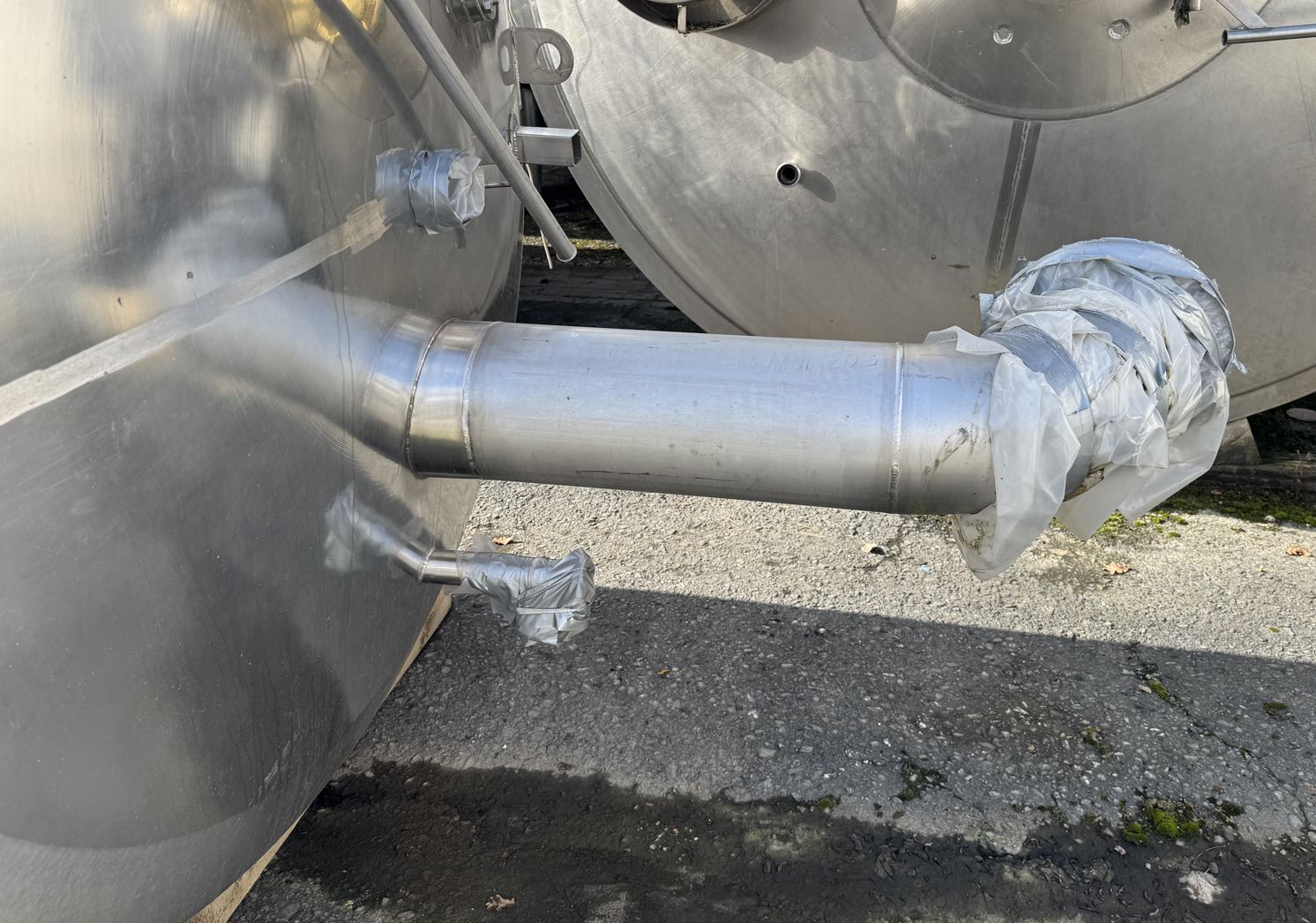

Outlet nozzle
125
Additional fixtures and fittings

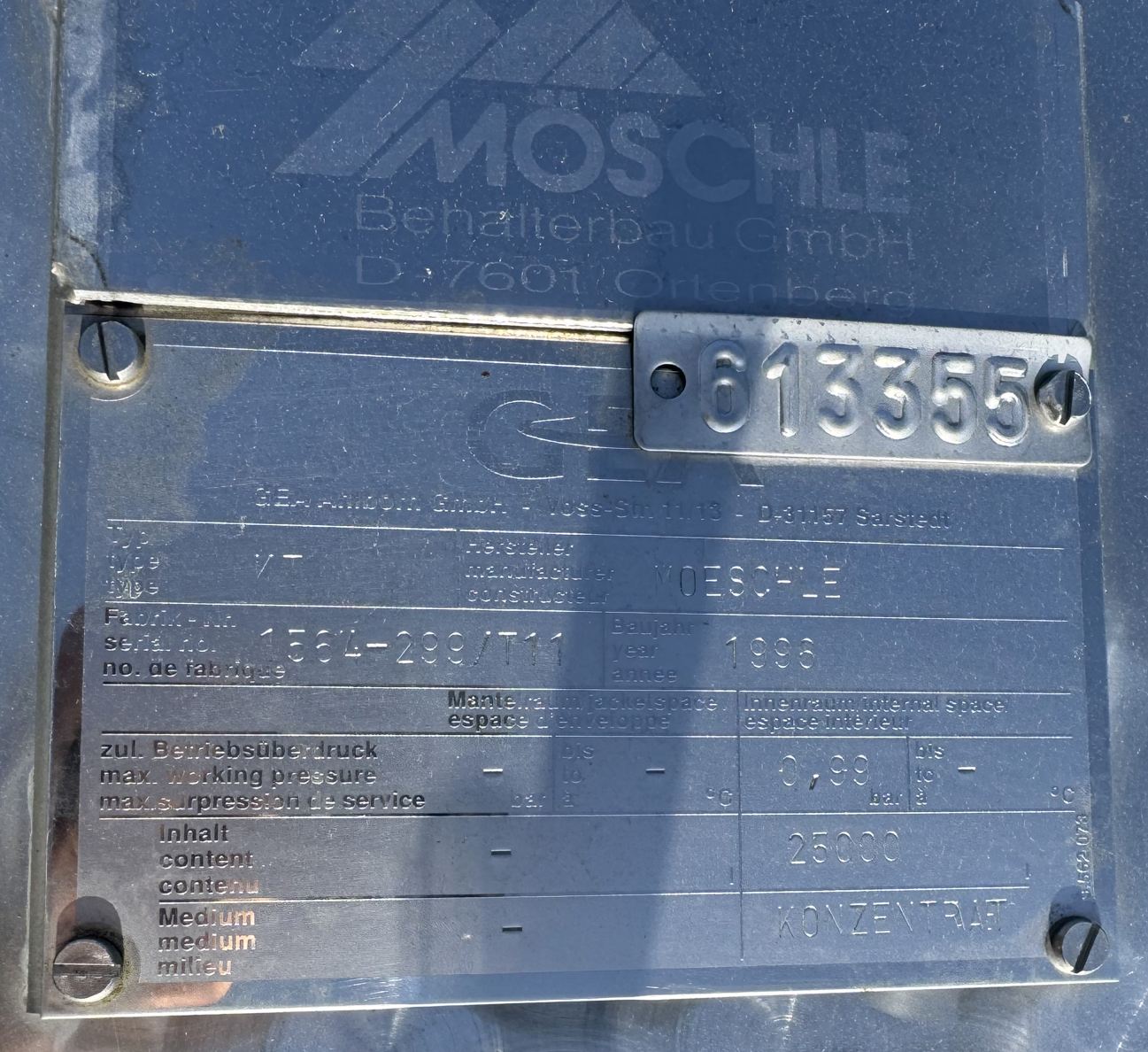

Nameplate
Technical documentation
Technical documentation
Designation
Other
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, CIP tank, Cold water tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,
Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Cold water tank,
