Product no. M-3034

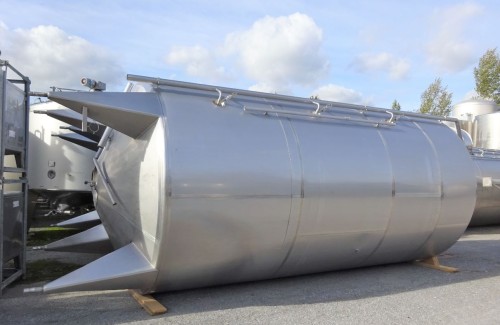

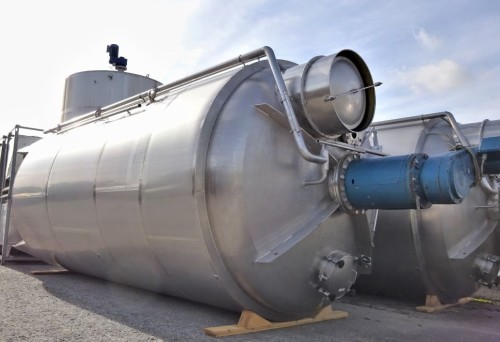

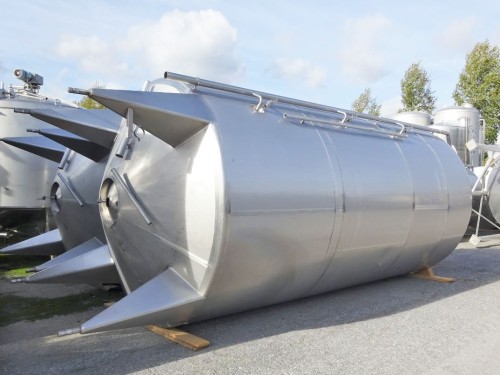

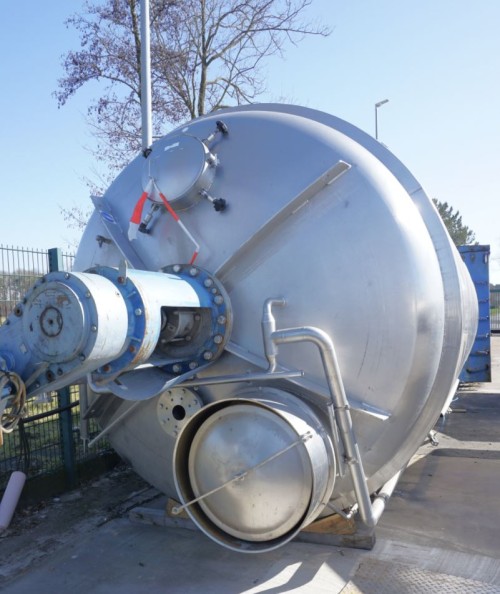

Mixing container 25.500 liters made of V2A isolated, used, standing

EUR 19.800,00

add. 19 % VAT excl. shipping costs

Volume approx. 25,500.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details   Downloads

Product description

Mixing container 25.500 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 25,500.00 litres. The diameter inside includes 2,500 mm.  Mixing container 25.500 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 25.500,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1993

  • Manufacturer

  • Ullmann & Co

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.500 mm

  • External diameter

  • 2.650 mm

  • Cyl. height

  • 5.000 mm

  • Foot height

  • 1.120 mm

  • Outlet height

  • 580 mm

  • Total height

  • 7.400 mm

  • Wall thickness of product chamber head

  • 6 mm

  • Wall thickness of product chamber shell

  • 4 mm

  • Wall thickness of product chamber floor

  • 5 mm

Design

  • Weight approx.

  • 3.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

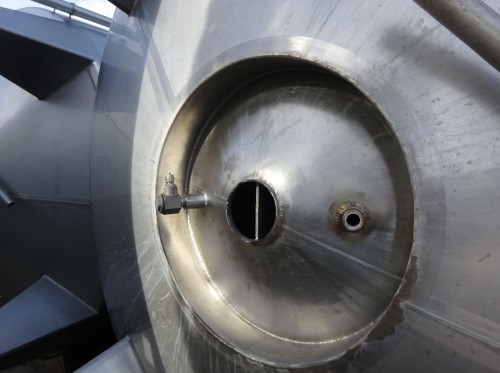

  • Floor type

  • Conical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 0,4 bar

  • Product chamber operating temperature

  • 95 °C

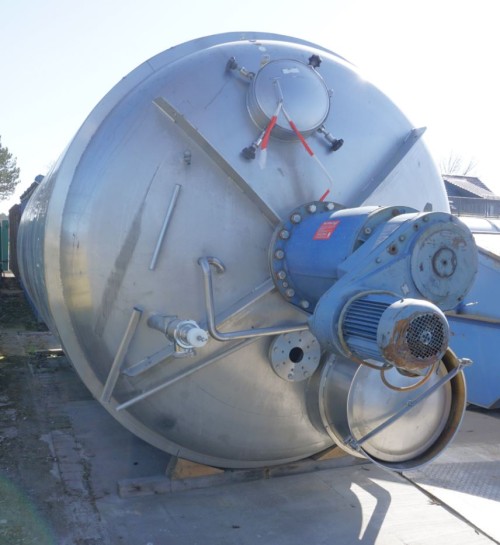

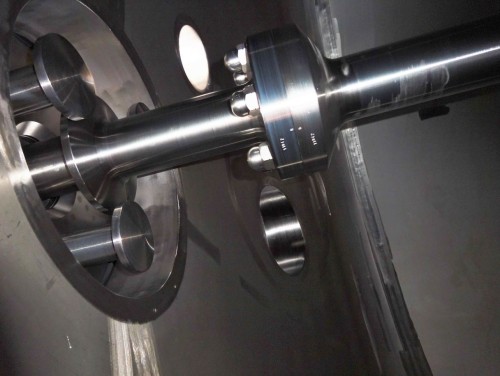

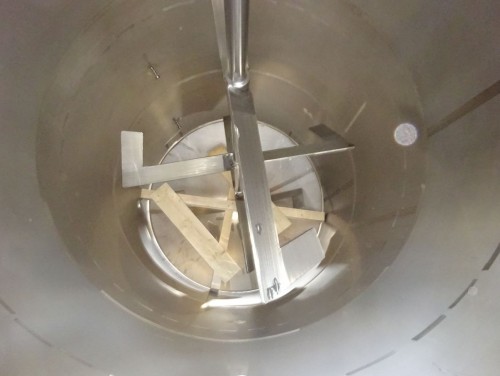

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator position

  • Head central

  • Agitator manufacturer

  • Eberhard Bauer

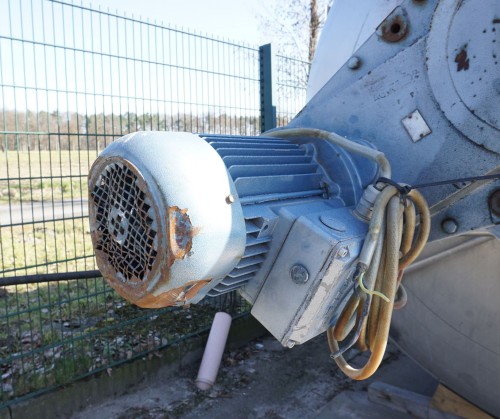

  • Agitator 1 - Output

  • 4,4 kW

  • Agitator 1 - RPM

  • 16 UpM

  • Agitator 1 - Voltage

  • 380 V

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

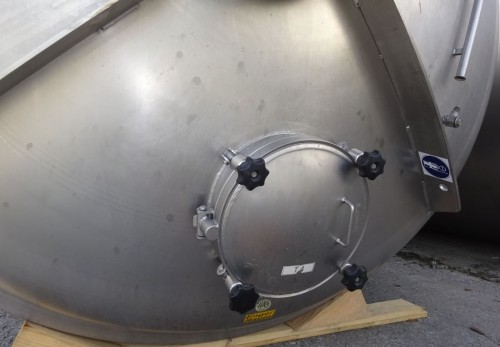

  • Manway position

  • In head

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Air vent

Technical documentation

  • Technical documentation

  • Designation

Other

  • Note

  • Auslauf abgeflext

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Hot water tank, Thermal buffer, Cold water tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank, Hot water tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Hot water tank, Thermal buffer, Cold water tank,
