Product no. M-3097

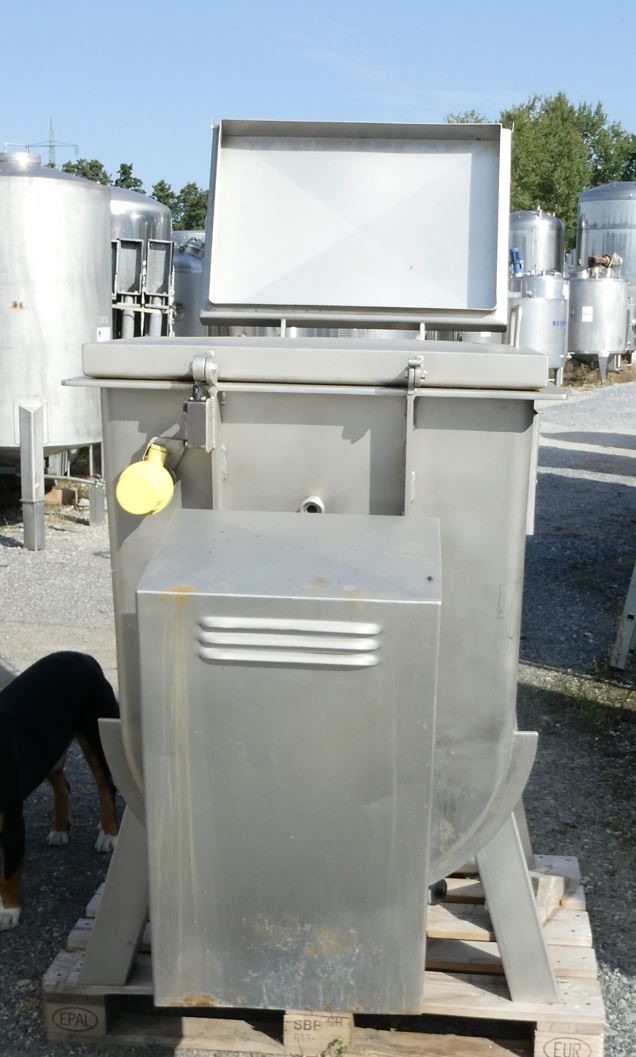

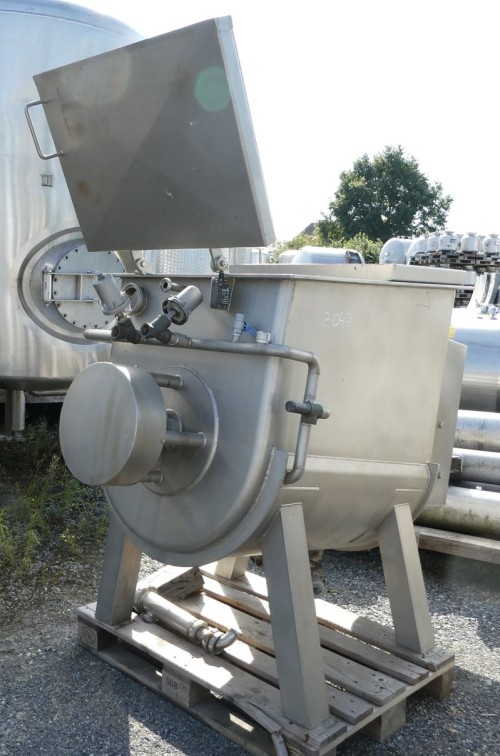

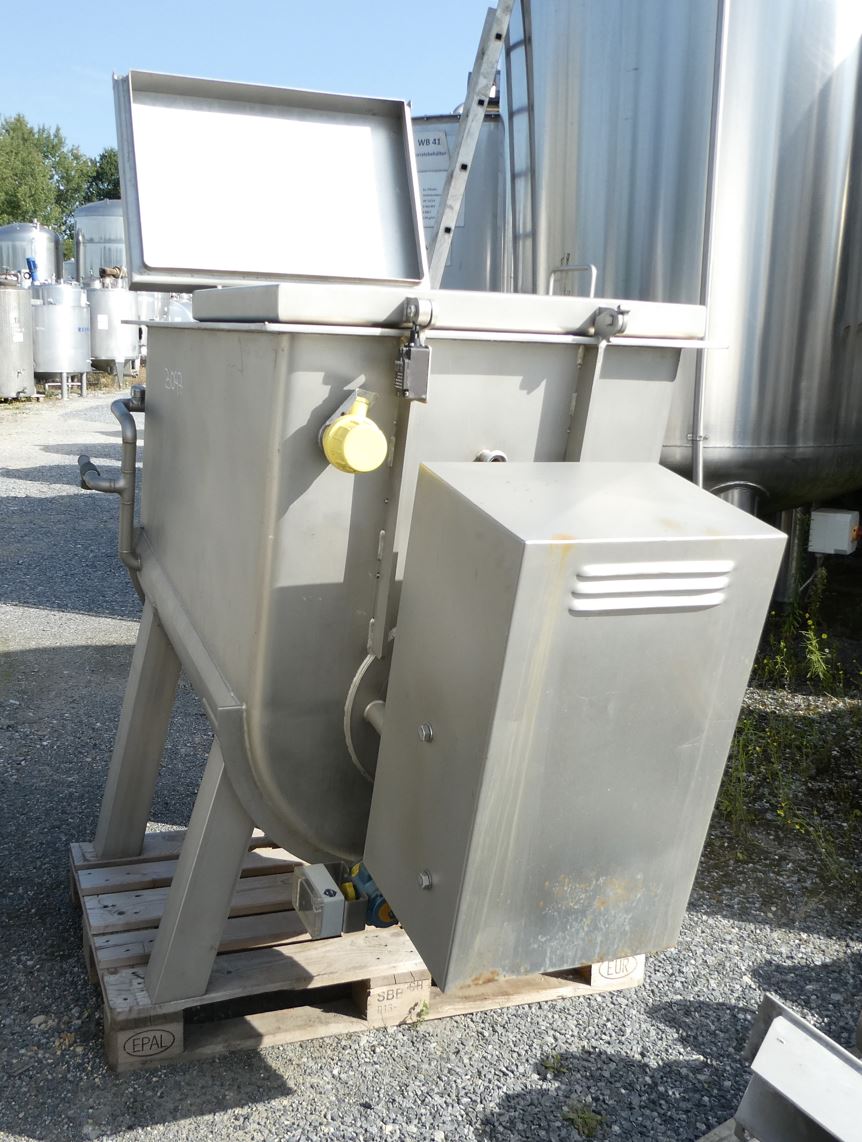

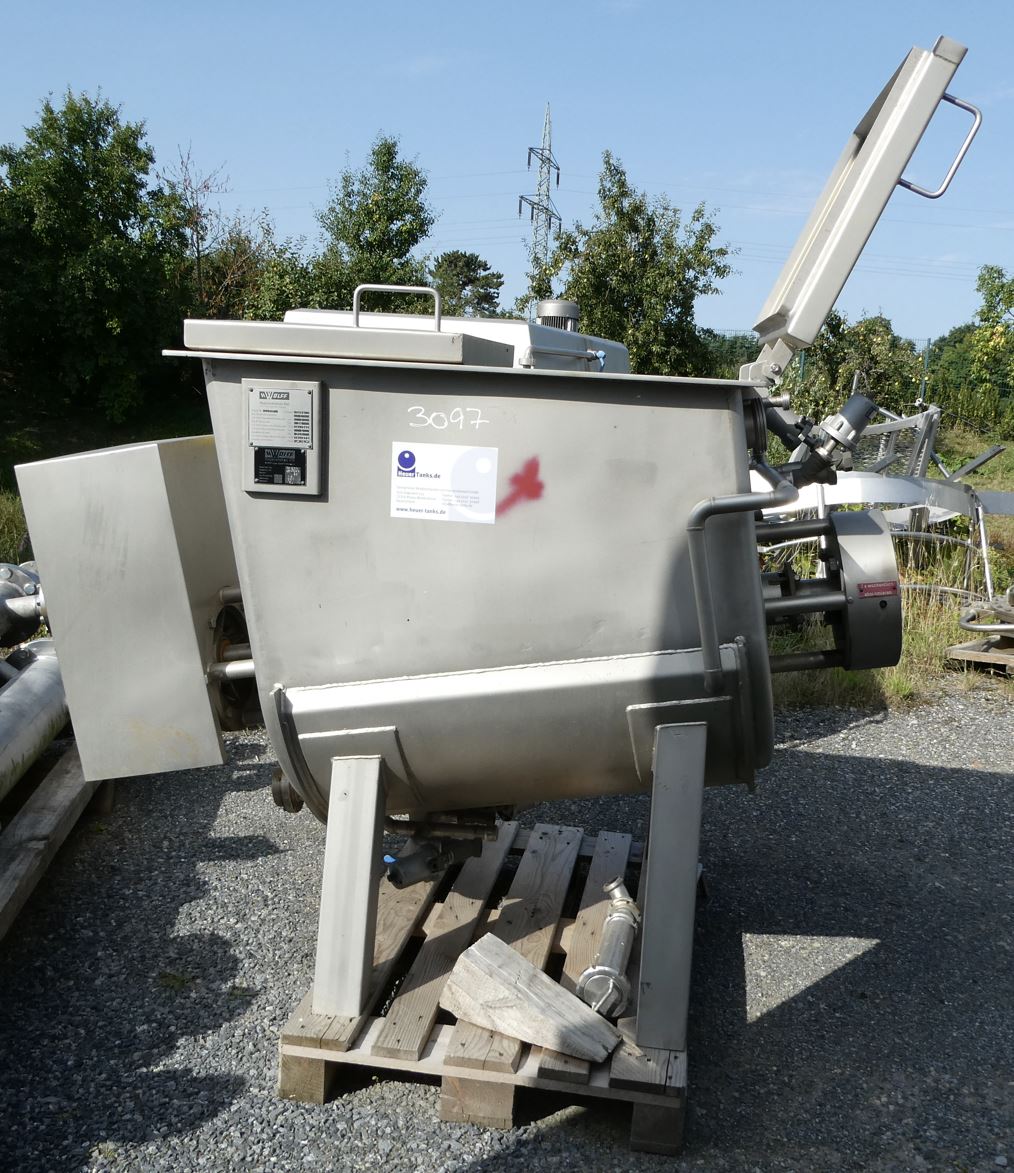

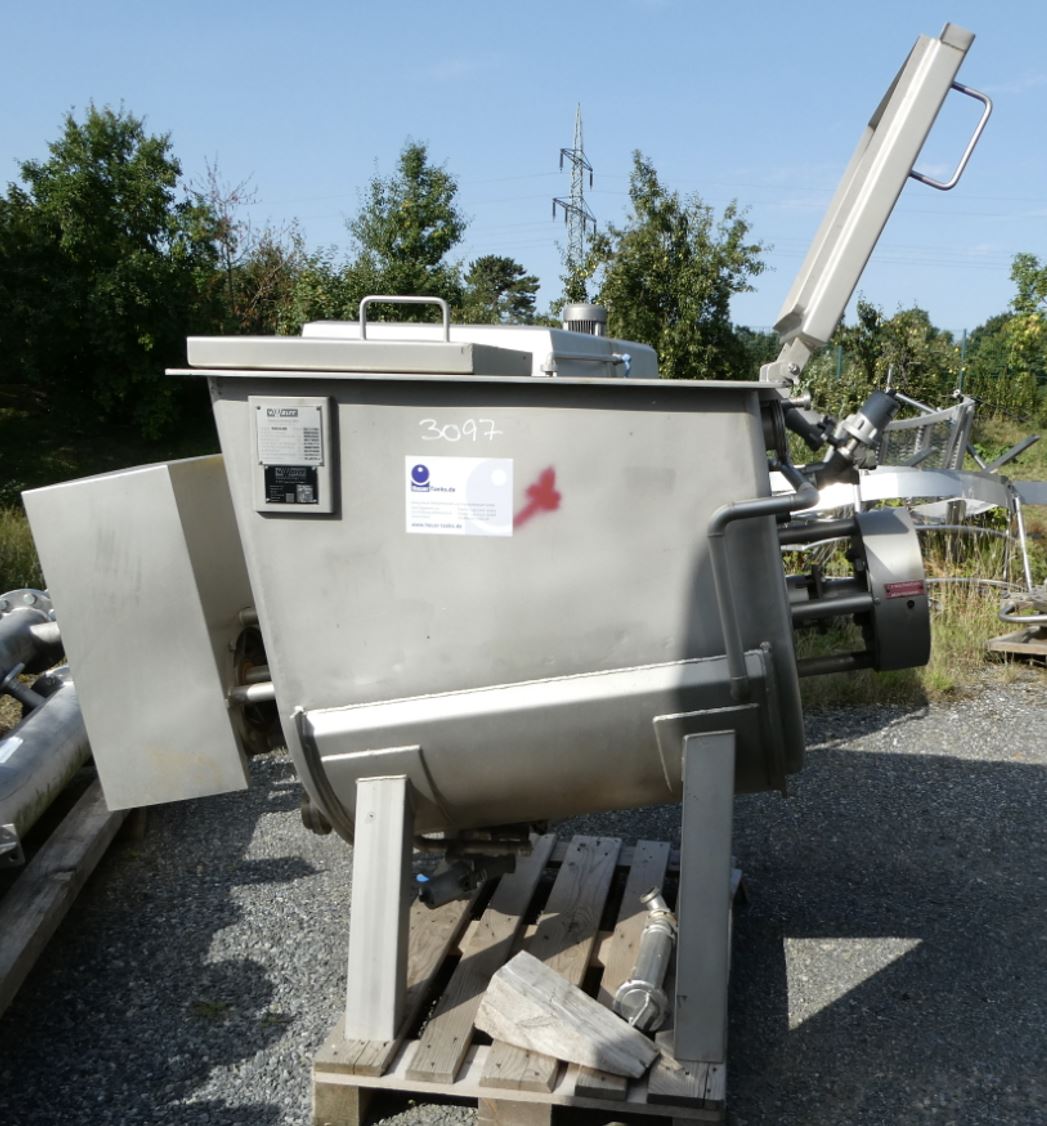

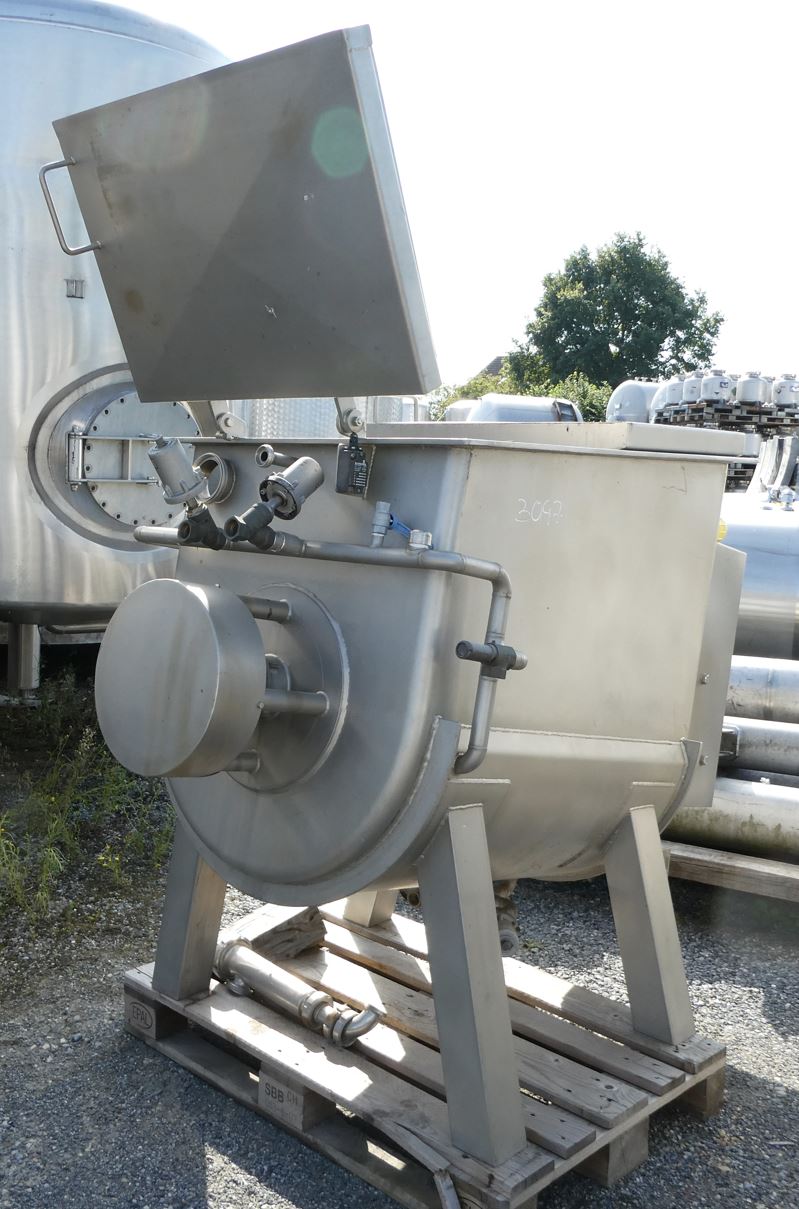

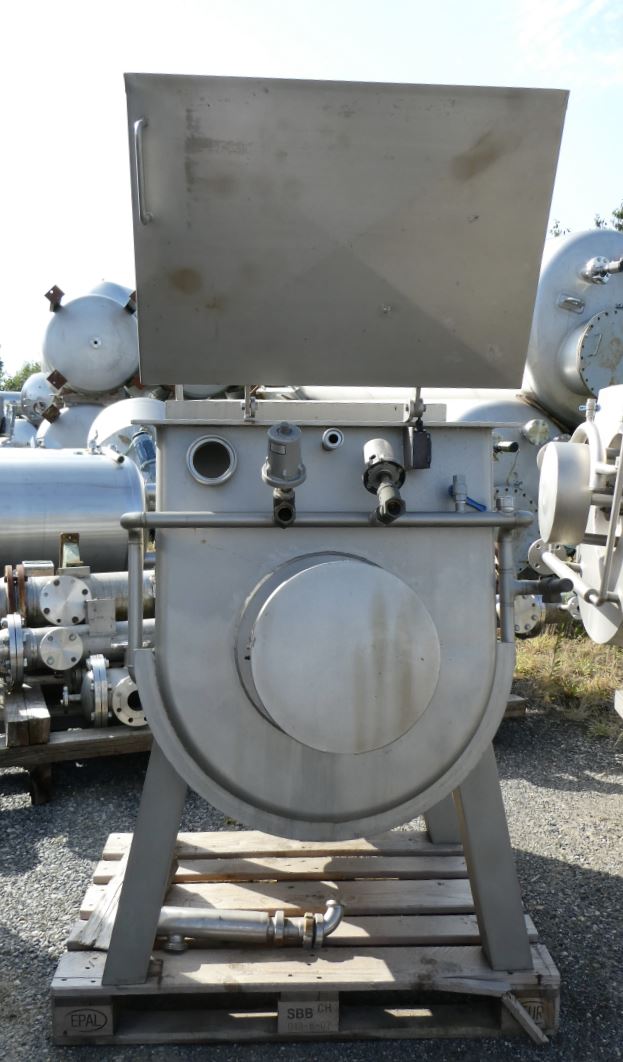

Mixing container 700 liters, temperature-controllable, used, horizontal

EUR 5.300,00

add. 19 % VAT excl. shipping costs


Volume approx. 700.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Mixing container 700 liters, temperature-controllable, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 700.00 litres. Mixing container 700 liters, temperature-controllable, used has the following dimensions: length 1,900 mm, width 900 mm,  Mixing container 700 liters, temperature-controllable, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Boiling, Cooling, Tempering, Mixing, Processes,

General

  • Volume approx.

  • 700,00 litres

  • Structure

  • Horizontal

  • Year of manufacture

  • 1989

  • Manufacturer

  • Wolf Apparatebau KG

  • Condition

  • Used

Dimensions approx.

  • Total height

  • 1.400 mm

  • Length

  • 1.900 mm

  • Width

  • 900 mm

Design

  • Weight approx.

  • 600,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Dished with slope towards outlet

  • Head design

  • Split hinged lid

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Floor area

  • Operating temperature

  • 100 °C

  • Temperature control system operating pressure/pipe chamber

  • 1,0 bar

  • Temperature control system operating temperature/pipe chamber

  • 120 °C

  • Temperature control system/pipe chamber capacity

  • 29 litres

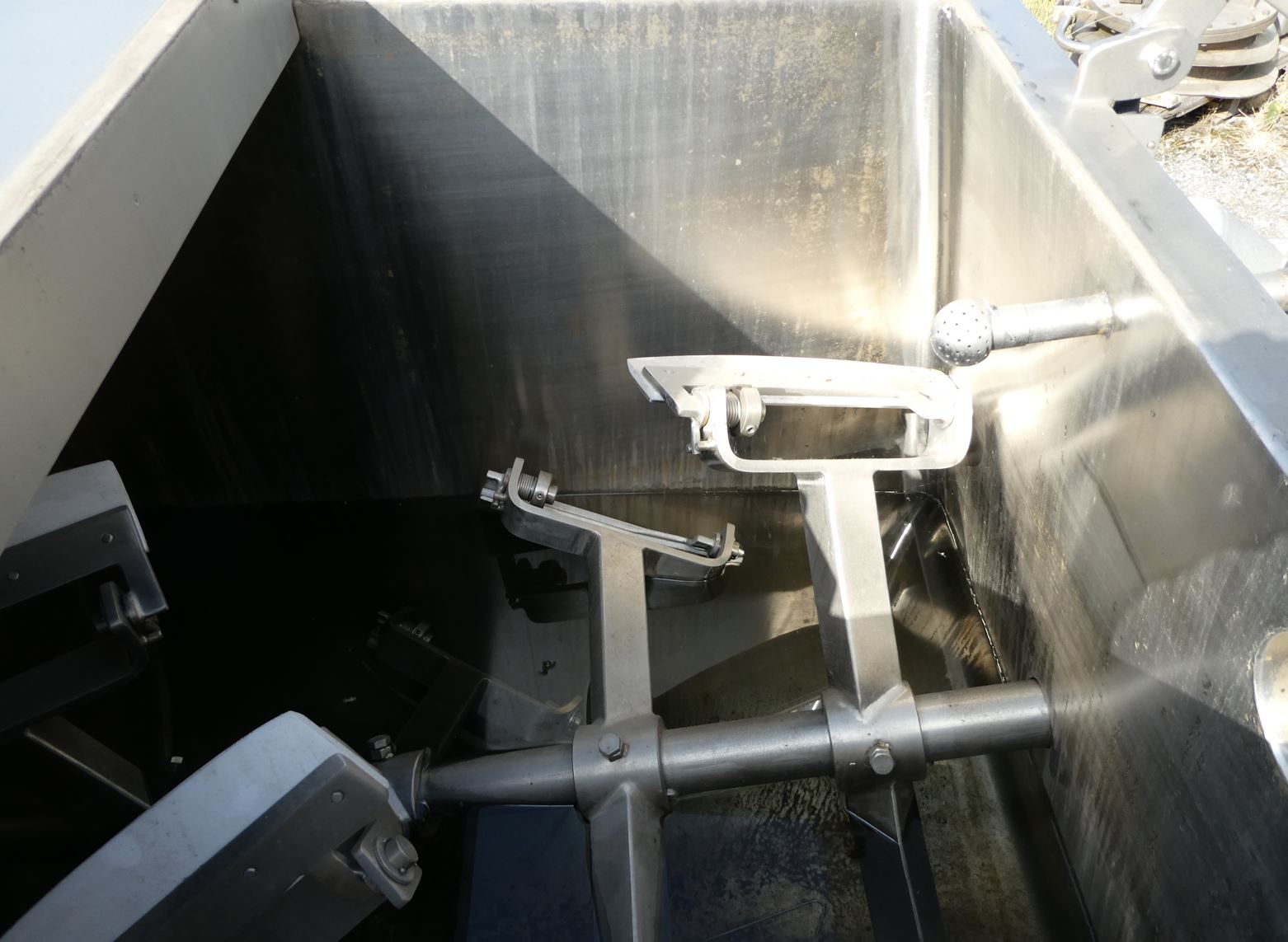

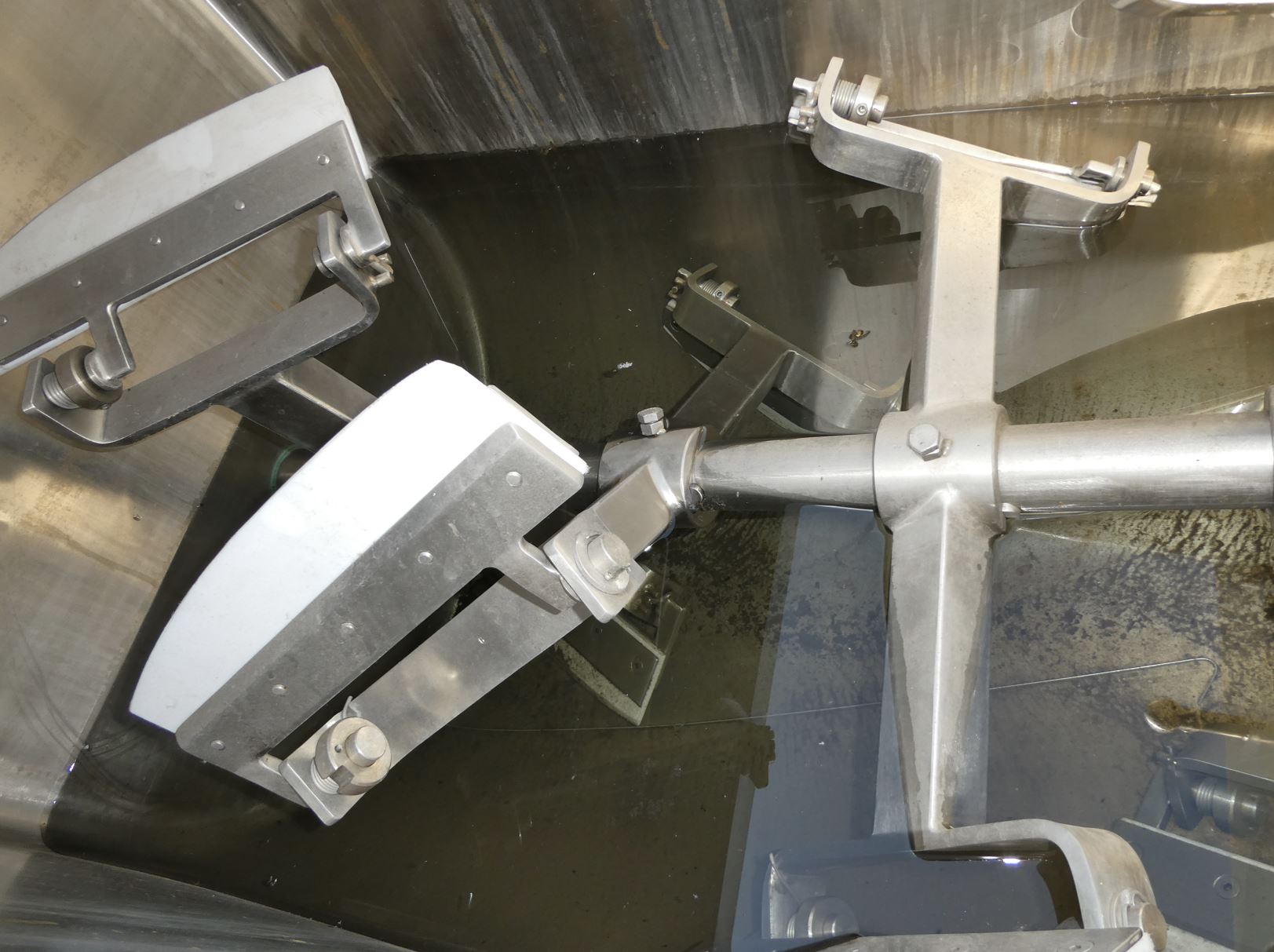

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Wall scraper

  • Agitator position

  • Front face

  • Agitator 1 - Output

  • 1,5 kW

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

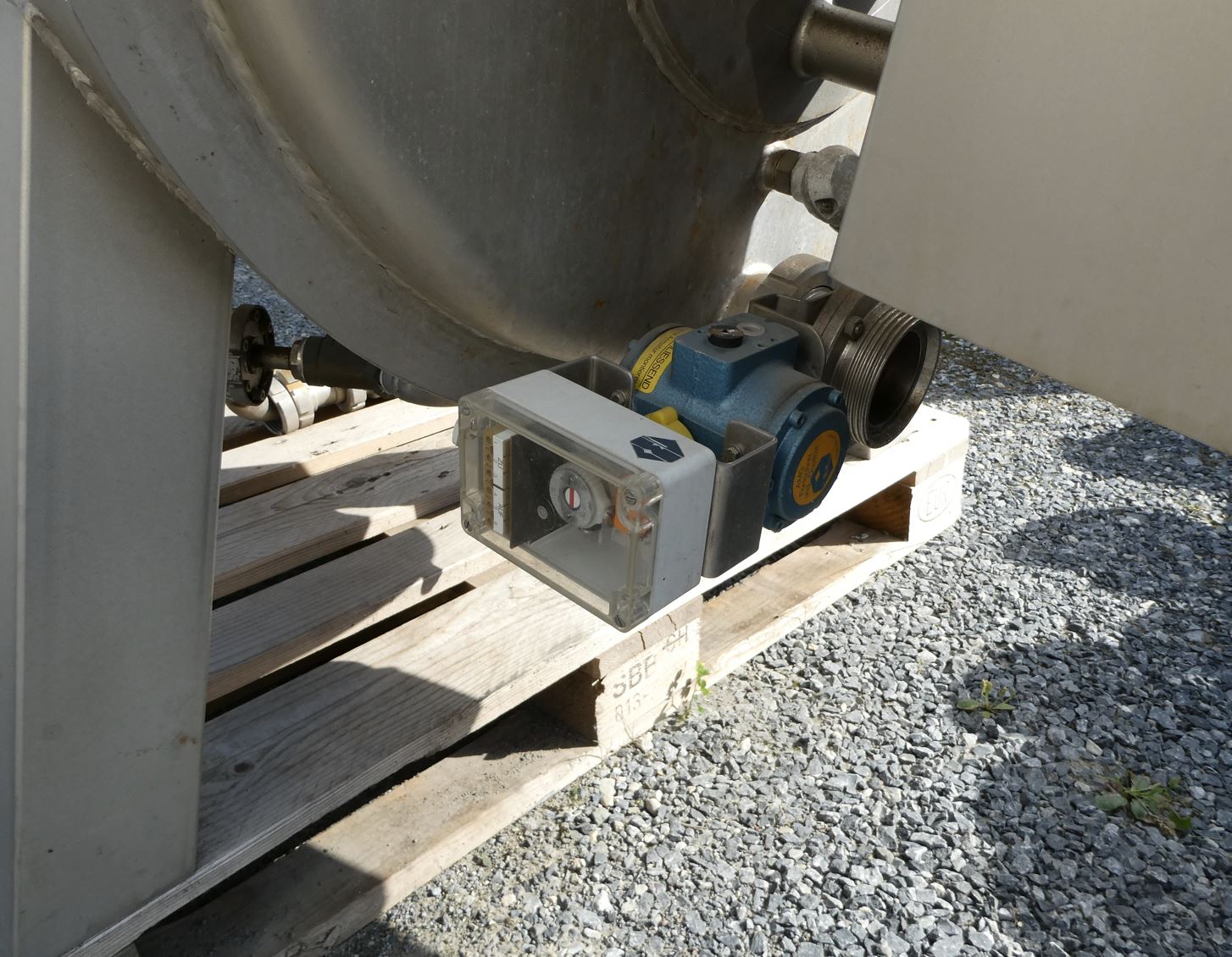

  • Outlet nozzle

  • 80

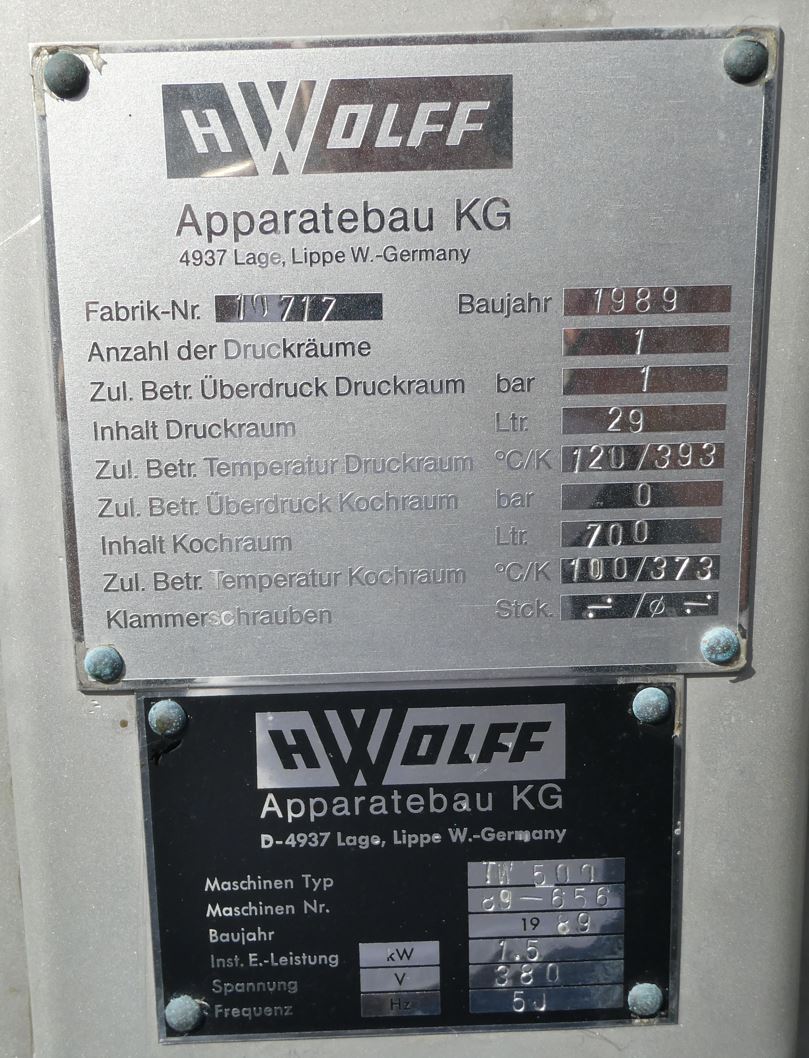

  • Additional fixtures and fittings

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Mixing tank, Process tank, Boiling tank, Cooling tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, Cooling tank, Boiling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, Anaerobic digestion tank, Cooling tank,
