Product no. M-2047

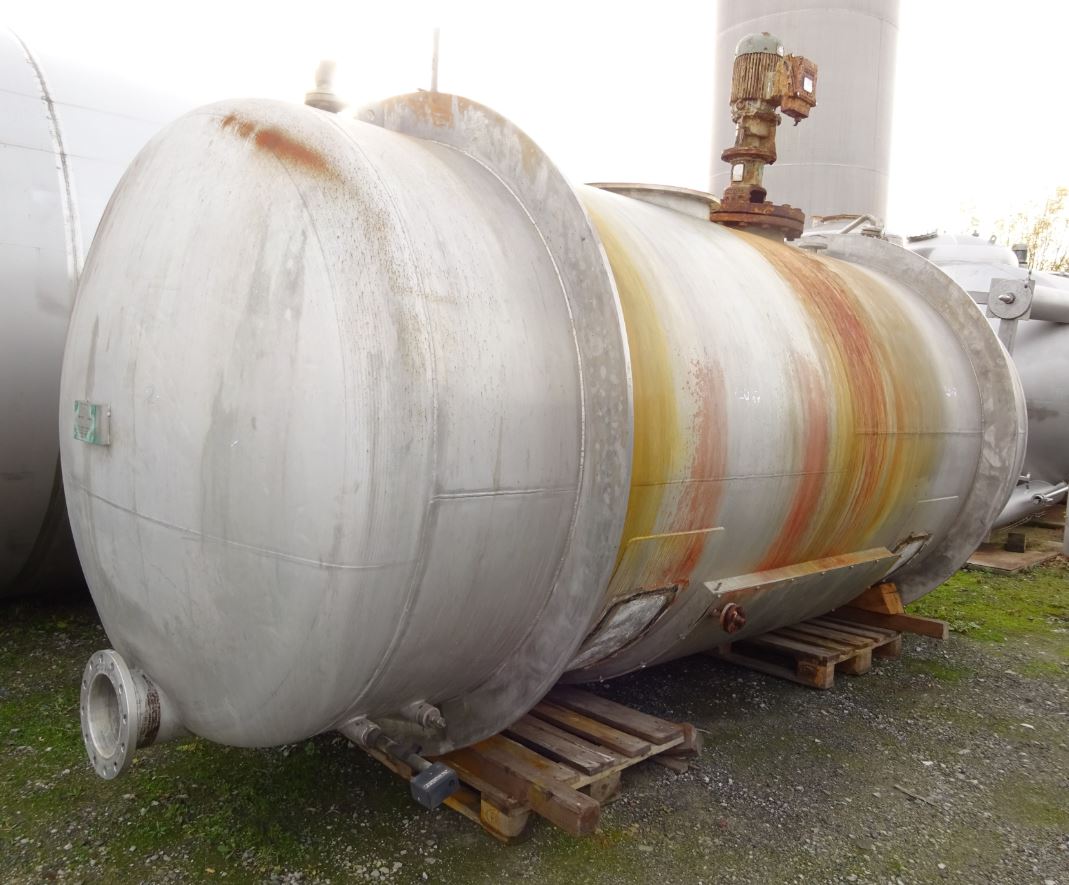

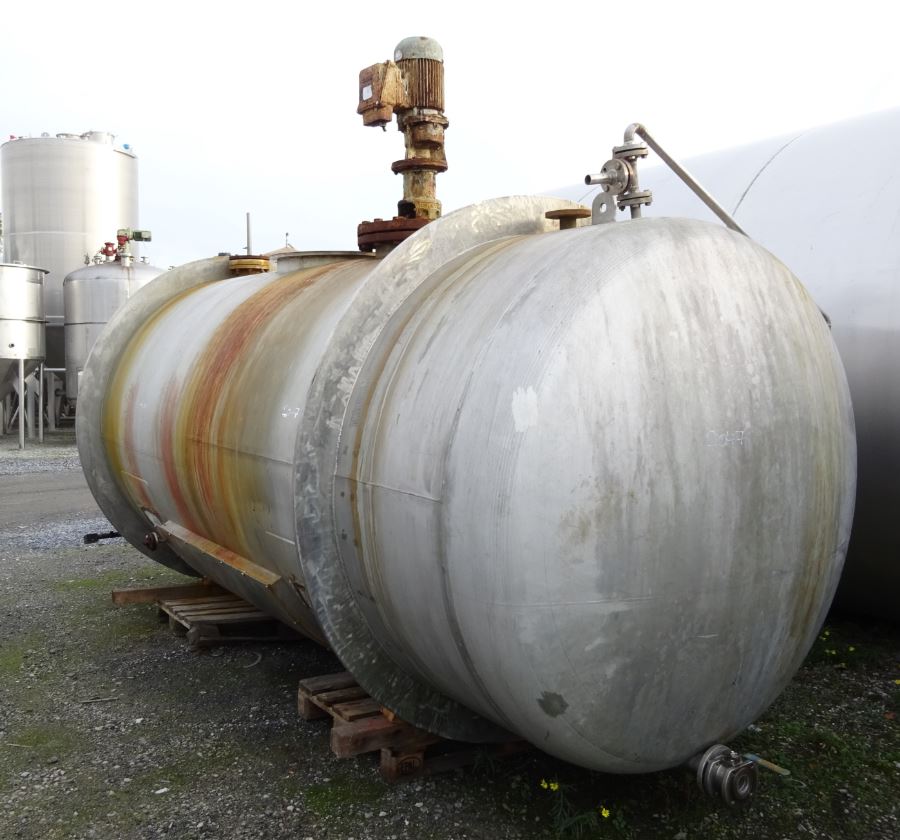

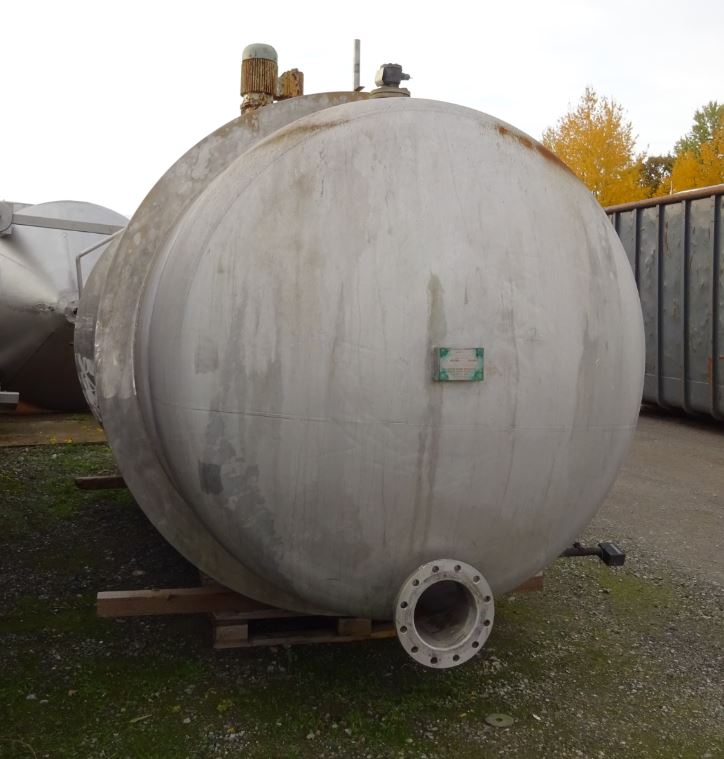

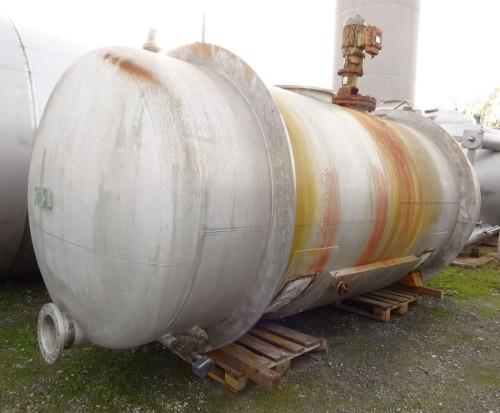

Container 10.100 liters made of V2A, used, temperature-controllable, single-walled, horizontal

EUR 7.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 10,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 10.100 liters made of V2A, used, temperature-controllable, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 10,000.00 litres.  Container 10.100 liters made of V2A, used, temperature-controllable, single-walled was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Processes, Cleaning/CIP,

General

  • Volume approx.

  • 10.000,00 litres

  • Structure

  • Horizontal

  • Year of manufacture

  • 1980

  • Manufacturer

  • Jagri

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.810 mm

  • Cyl. length

  • 4.000 mm

  • Total length

  • 4.738 mm

  • Wall thickness of product chamber shell

  • 3 mm

  • Wall thickness of product chamber floor

  • 3 mm

Design

  • Weight approx.

  • 975,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Interior surface

  • Brushed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

  • Product chamber operating temperature

  • 50 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Floor area

  • Temperature control system

  • Half-pipe coils

  • Operating pressure

  • 0,8 bar

  • Operating temperature

  • 116 °C

Fixtures and fittings

  • Manway 1 size

  • 600 DN mm

  • Manway position

  • In head

  • Nozzle connector

  • Flange

  • Nozzles/connectors in head

  • 1xDN40 1xDN125 1xDN400 3xDN25-50 (piece)

  • Nozzles/connectors in floor

  • 1xDN200 1xDN25 (piece)

  • Outlet nozzle

  • 50

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Reinforcing ring

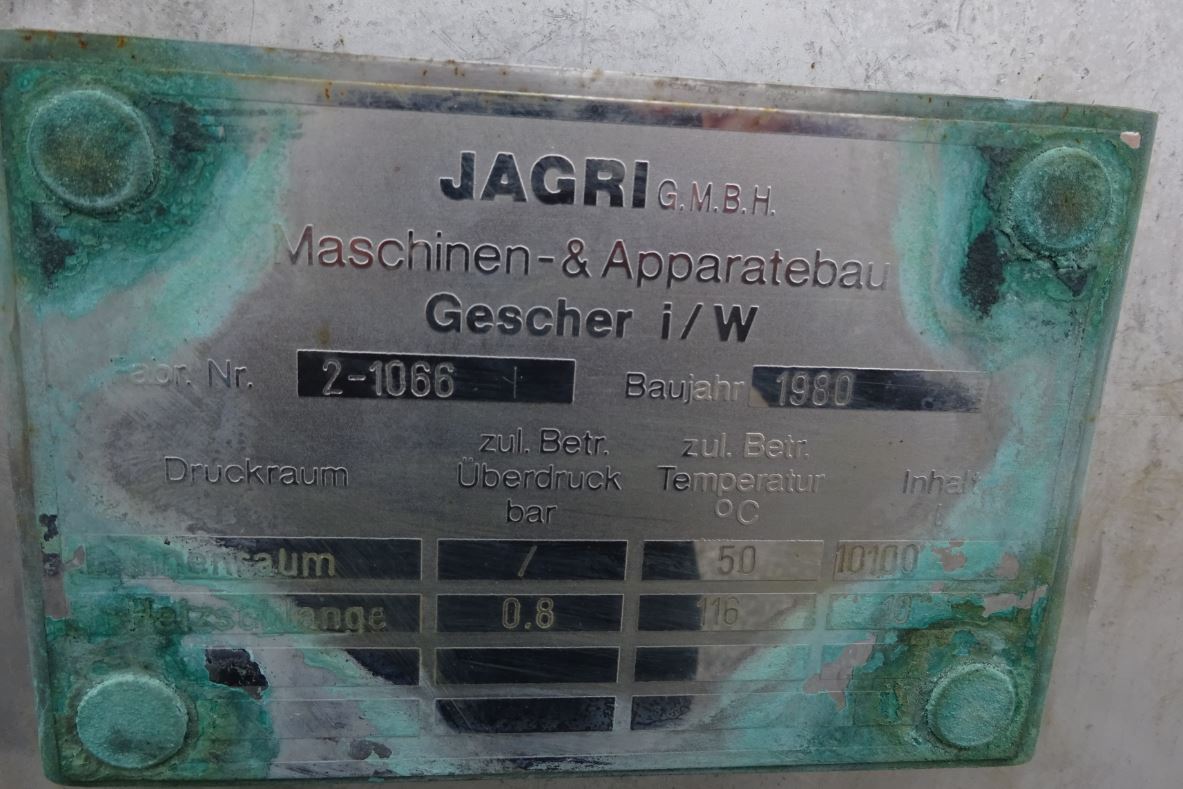

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

  • Test certificate

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Substrate tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Process tank, CIP tank, Cooling tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Septic tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank, CIP tank, Reactor/reaction tank,
