Product no. M-2204

Container 18.500 liters made of V2A, used, temperature-controllable, single-walled, standing

EUR 11.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 18,500.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 18.500 liters made of V2A, used, temperature-controllable, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 18,500.00 litres. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing, Processes, Anaerobic digestion, Cleaning/CIP,

General

  • Volume approx.

  • 18.500,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2005

  • Manufacturer

  • Schwarte Milfor

  • Condition

  • Unused

Dimensions approx.

  • External diameter

  • 2.300 mm

  • Cyl. height

  • 4.800 mm

  • Foot height

  • 1.500 mm

  • Total height

  • 6.600 mm

Design

  • Weight approx.

  • 1.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Inverted bottom with slope towards outlet

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Interior

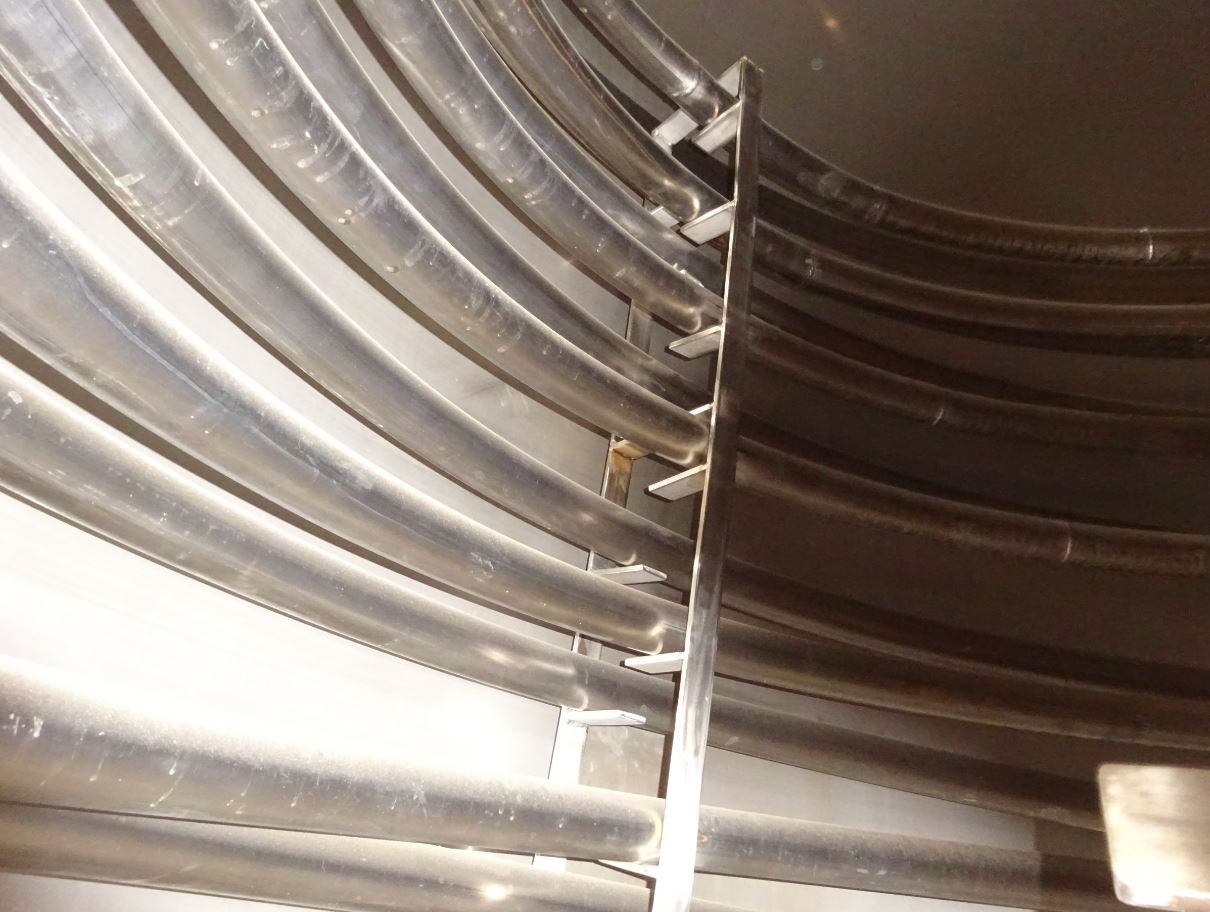

  • Temperature control system

  • Interior pipe coils

  • Operating pressure

  • 3 bar

  • Operating temperature

  • 100 °C

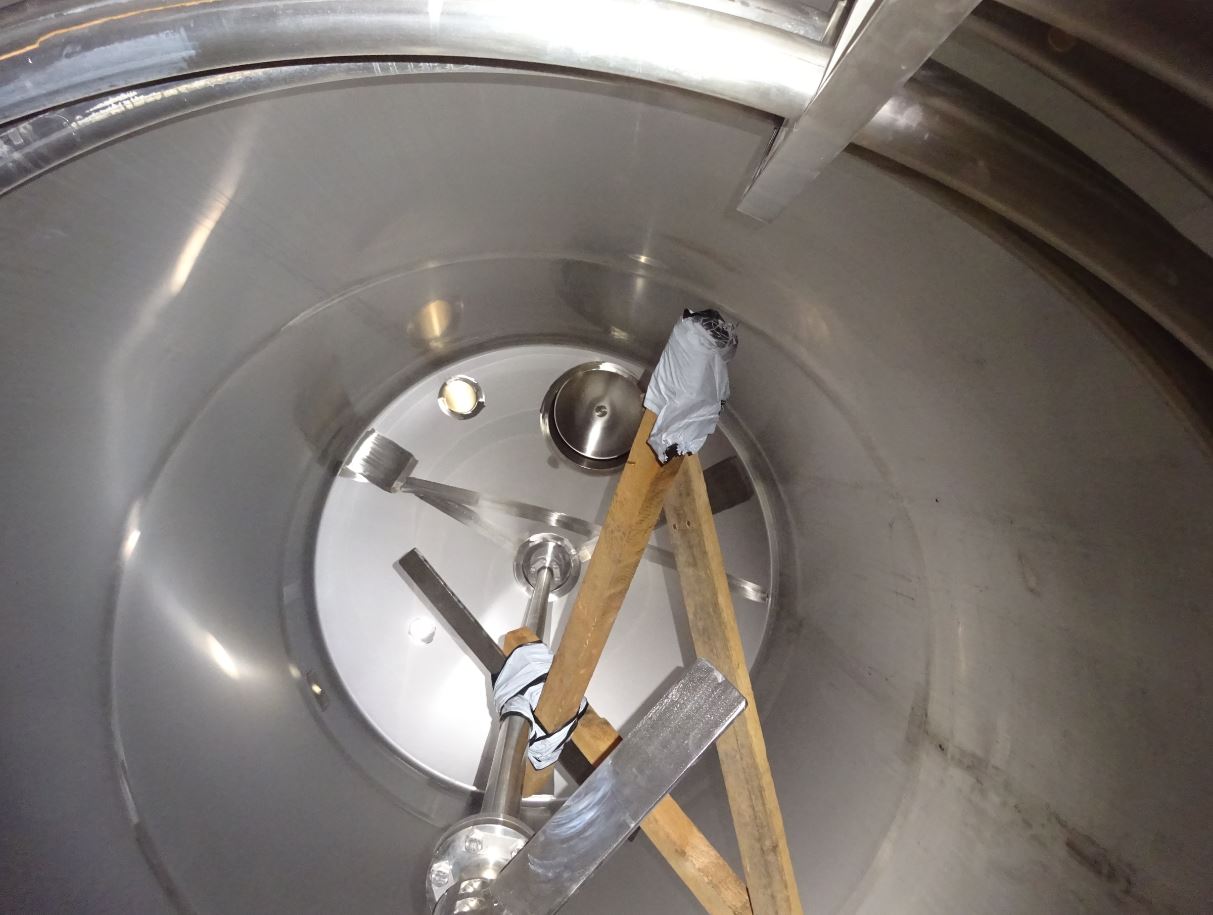

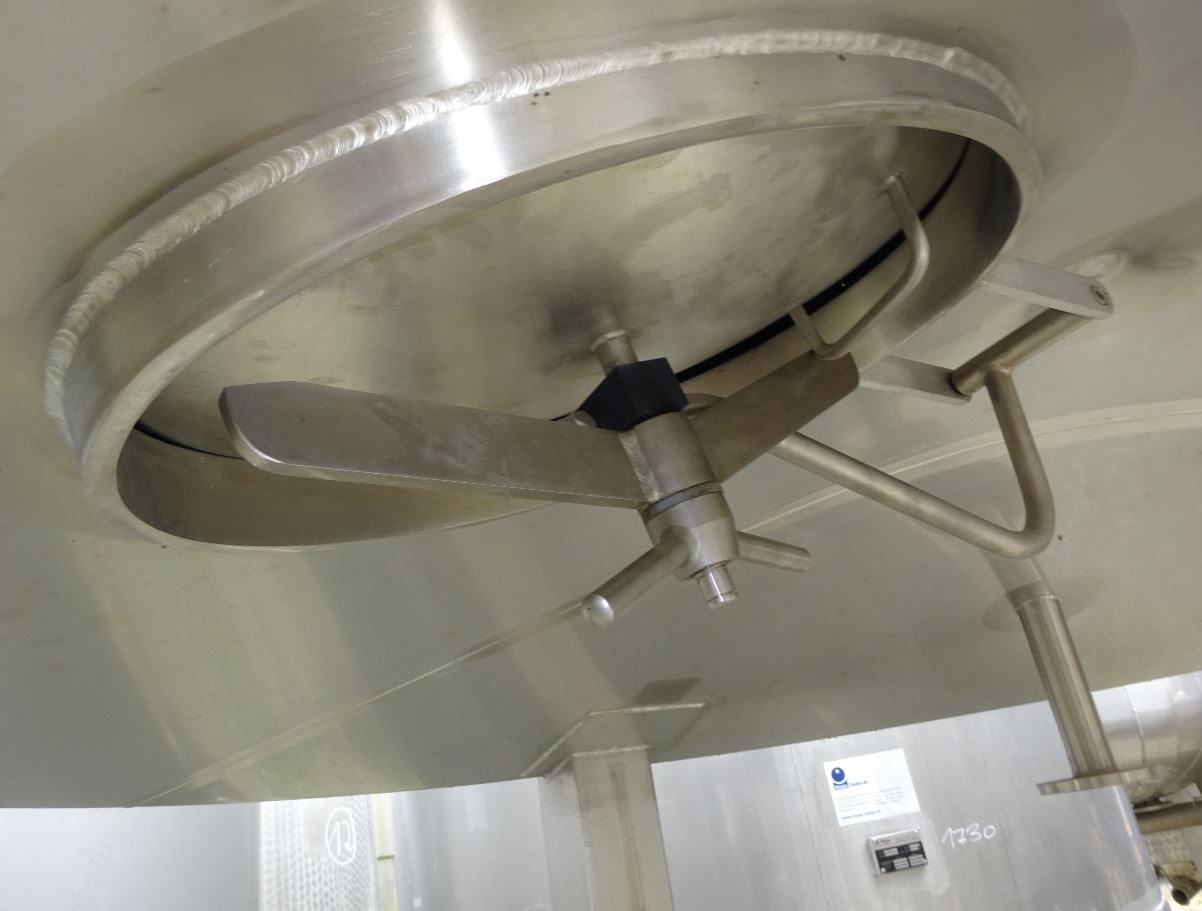

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Paddle agitator

  • Agitator position

  • Head central

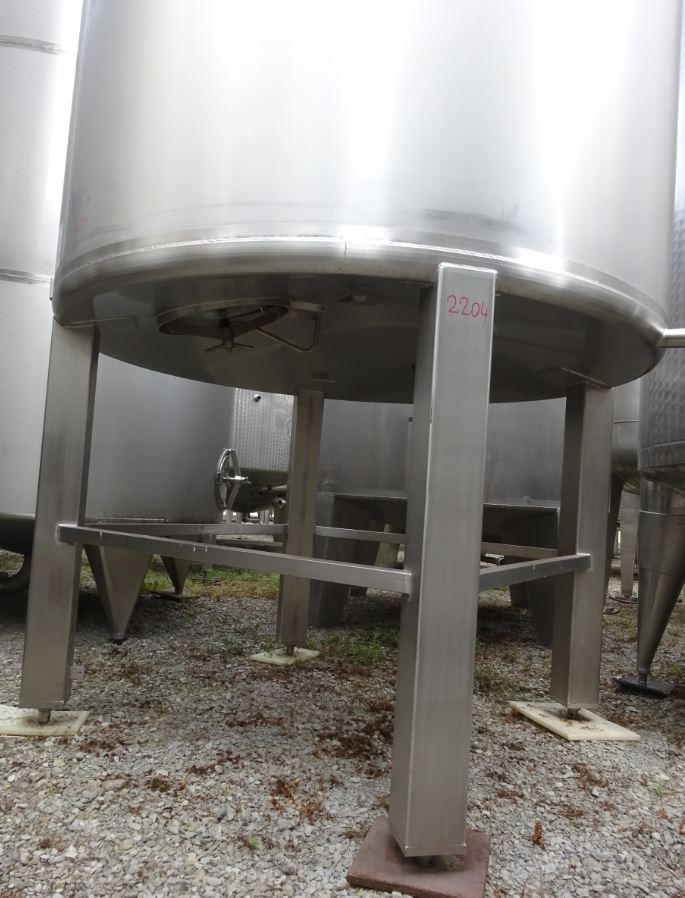

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway position

  • Front face

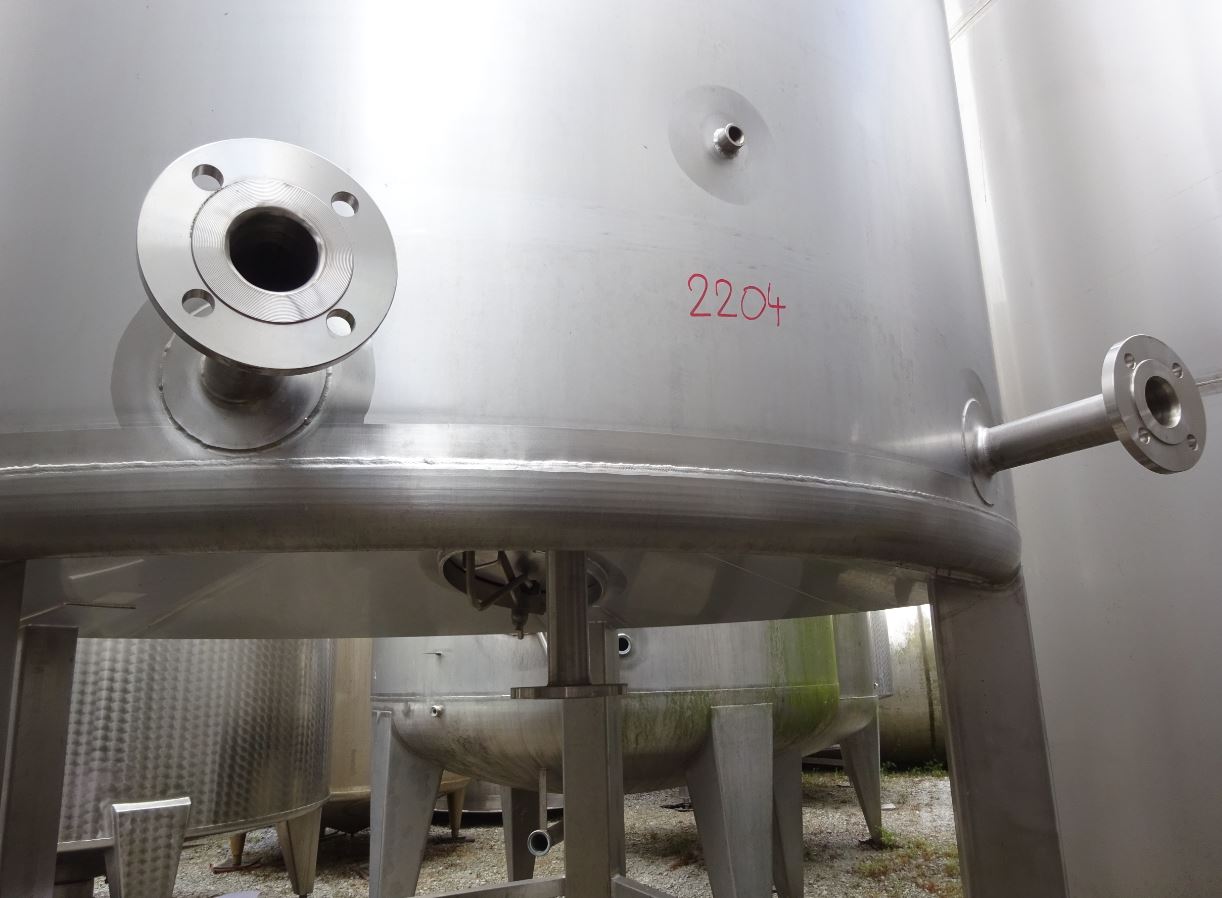

  • Nozzle connector

  • Flange

  • Nozzles/connectors in shell

  • 1xDN65 (piece)

  • Nozzles/connectors in head

  • 1xDN65 (piece)

  • Outlet nozzle

  • 65

  • Additional fixtures and fittings

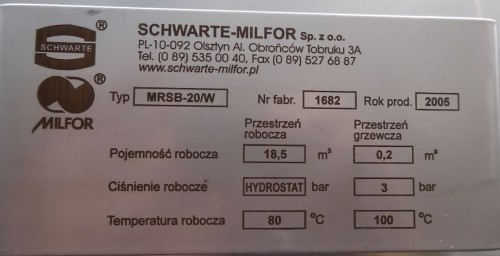

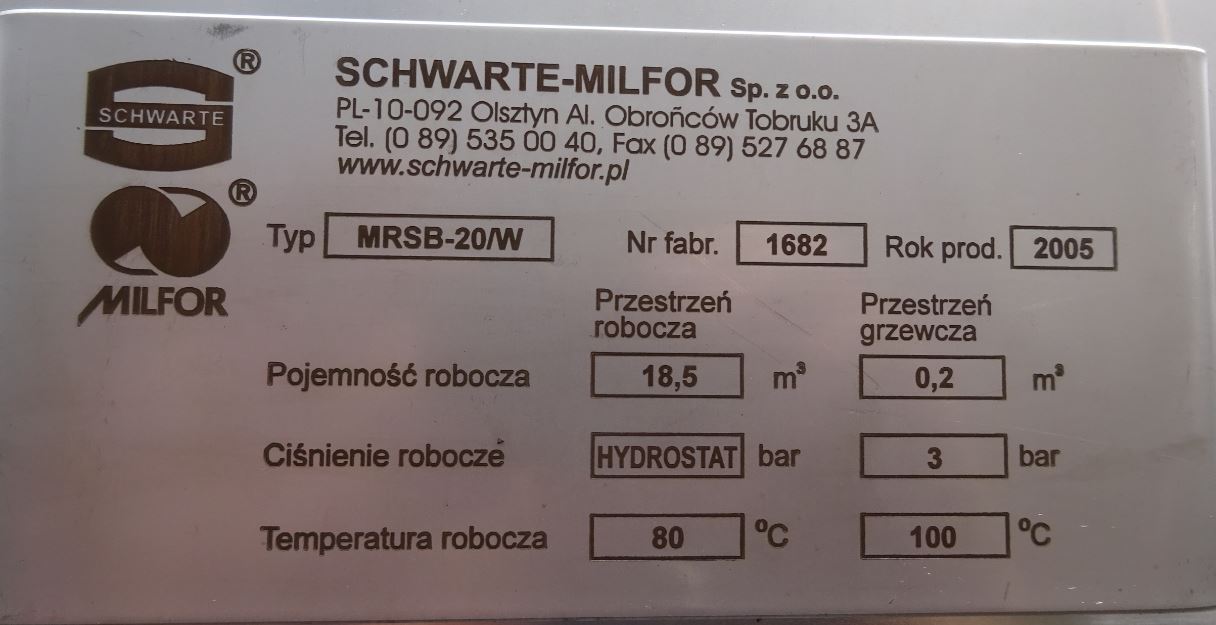

  • Nameplate

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, Process tank, Fermentation tank, Anaerobic digestion tank, CIP tank, Cold water tank,

Agriculture: Substrate tank, Rainwater tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, Process tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Septic tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, Process tank, Fermentation tank, Anaerobic digestion tank, CIP tank, Reactor/reaction tank, Cooling tank, Cold water tank,
