Product no. M-1648

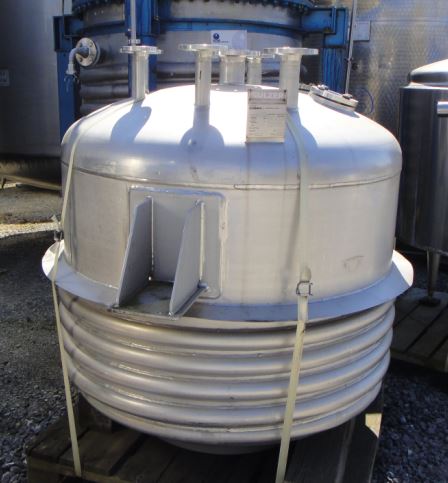

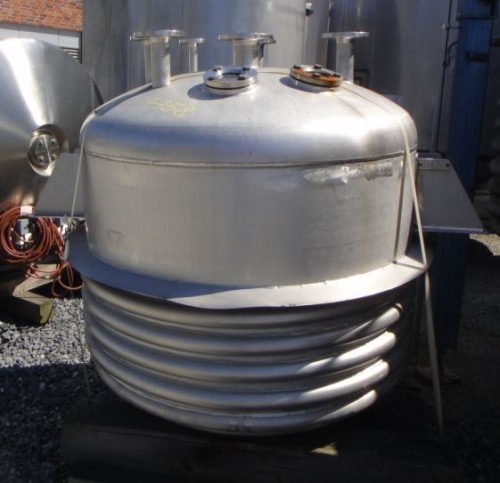

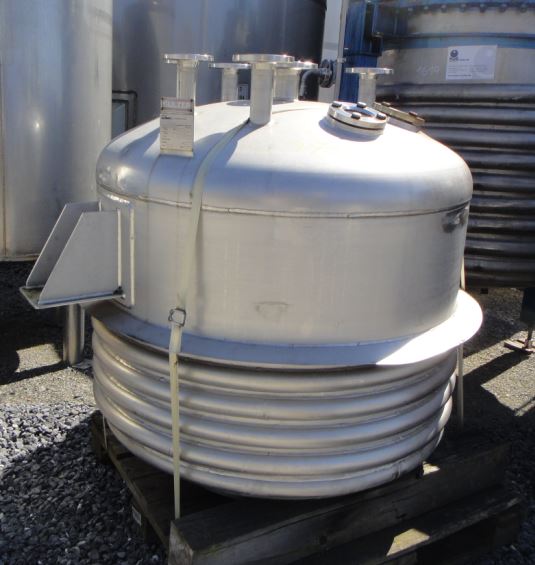

Pressure tank 1.200 liters made of V4A, used, temperature-controllable, hanging

EUR 5.700,00

add. 19 % VAT excl. shipping costs


Volume approx. 1,200.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 1.200 liters made of V4A, used, temperature-controllable consists of the material 1.4435. The volume is approx. 1,200.00 litres. The diameter inside includes 1,200 mm. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure, Processes, Reactor,

General

  • Volume approx.

  • 1.200,00 litres

  • Structure

  • Hanging

  • Condition

  • Unused

Dimensions approx.

  • Internal diameter

  • 1.200 mm

  • Cyl. height

  • 700 mm

  • Total height

  • 1.450 mm

  • Wall thickness of product chamber head

  • 6 mm

  • Wall thickness of product chamber shell

  • 4 mm

  • Wall thickness of product chamber floor

  • 5 mm

Design

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 2 bar

  • Product chamber operating under-pressure

  • -1 bar

  • Product chamber operating temperature

  • 300 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Half-pipe coils

  • Operating pressure

  • 3 bar

  • Operating temperature

  • 300 °C

  • Temperature control system/pipe chamber capacity

  • 30 litres

Supports

  • Supports

  • Bracket supports

  • Number of feet

  • 2 (piece)

Fixtures and fittings

  • Nozzle connector

  • Flange

  • Nozzles/connectors in head

  • 5 (piece)

  • Additional fixtures and fittings

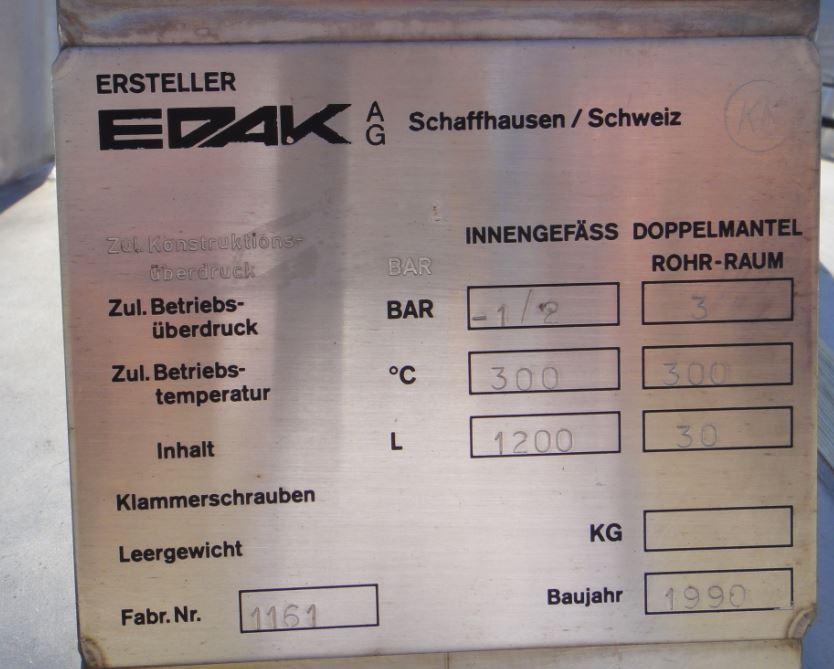

  • Nameplate

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, Process tank, CIP tank, Boiling tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, Process tank, Cooling tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Reactor tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, Reactor/reaction tank, Cooling tank,
