Product no. M-3131

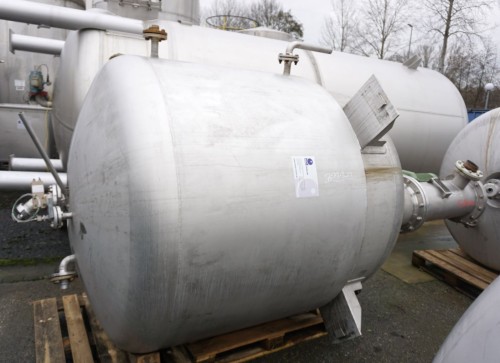

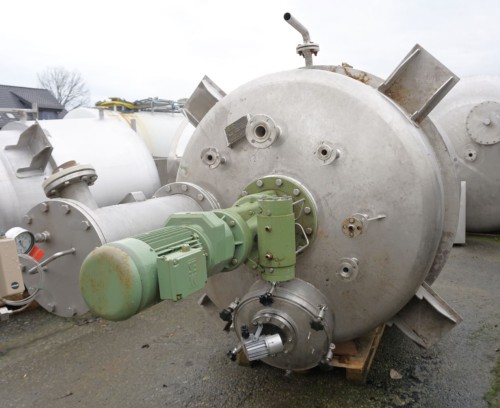

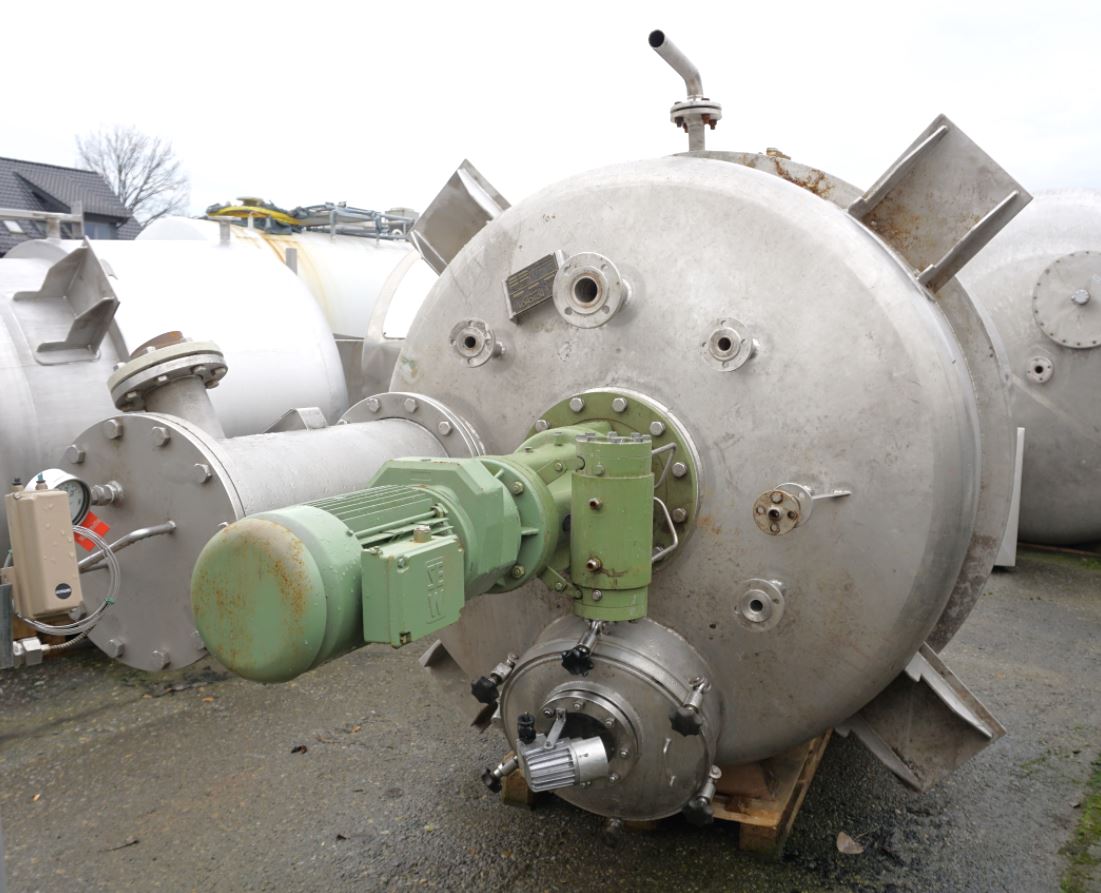

Container 3.640 liters made of V4A temperature-controllable, isolated, used, hanging

EUR 12.500,00

add. 19 % VAT excl. shipping costs

Volume approx. 3,640.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 3.640 liters made of V4A temperature-controllable, isolated, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 3,640.00 litres. The diameter inside includes 1,600 mm.  Container 3.640 liters made of V4A temperature-controllable, isolated, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cooling, Tempering, Mixing, Under/over-pressure,

General

  • Volume approx.

  • 3.640,00 litres

  • Structure

  • Hanging

  • Year of manufacture

  • 1990

  • Manufacturer

  • Roscher

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.600 mm

  • External diameter

  • 1.750 mm

  • Cyl. height

  • 1.450 mm

  • Total height

  • 3.500 mm

Design

  • Weight approx.

  • 1.600,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 0,49 bar

  • Product chamber operating under-pressure

  • -1 bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Half-pipe coils

  • Operating pressure

  • 0,49 bar

  • Operating temperature

  • -20/200 °C

  • Temperature control system operating pressure/pipe chamber

  • 10,0 bar

  • Temperature control system operating temperature/pipe chamber

  • 200 °C

  • Temperature control system/pipe chamber capacity

  • 132 litres

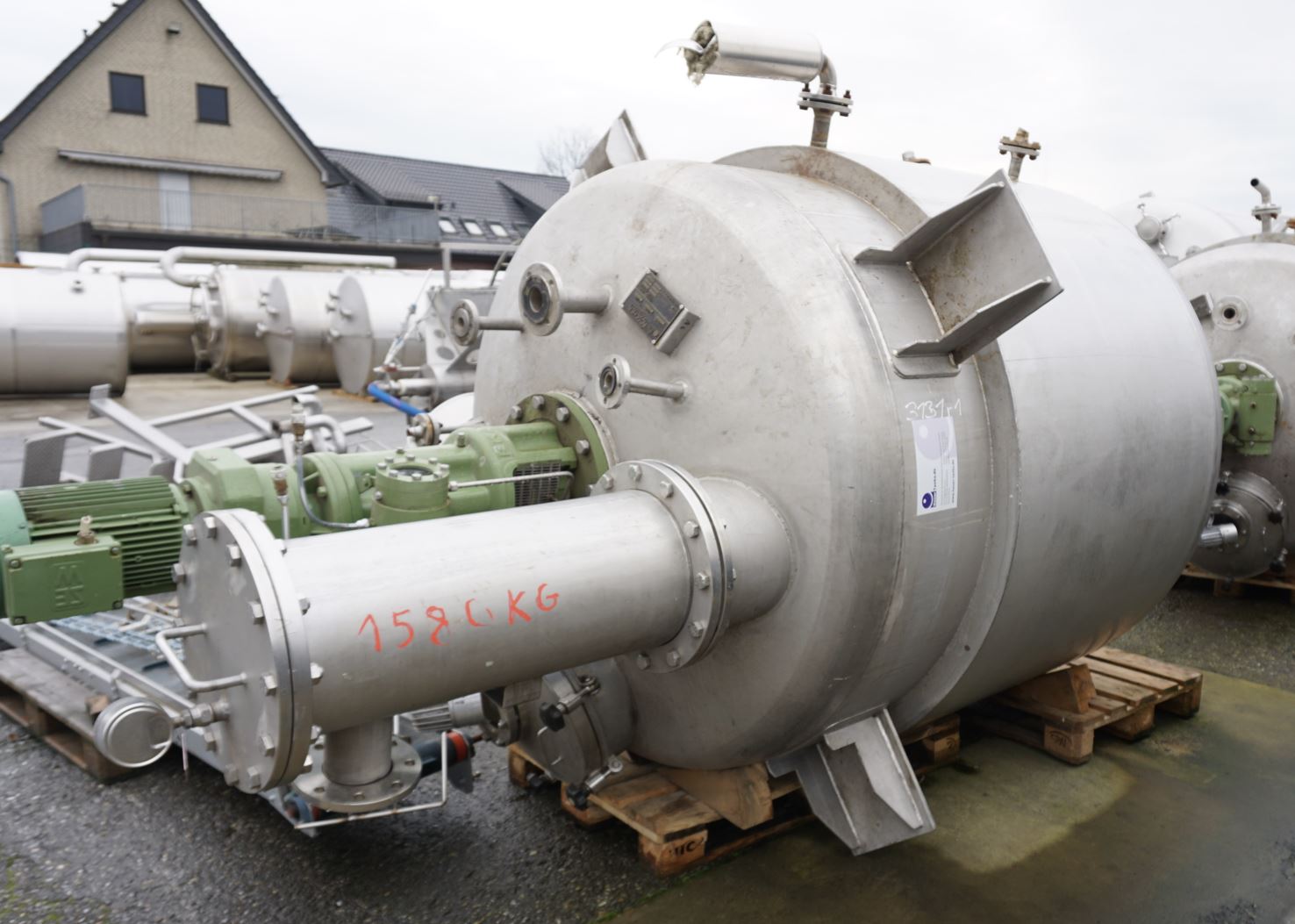

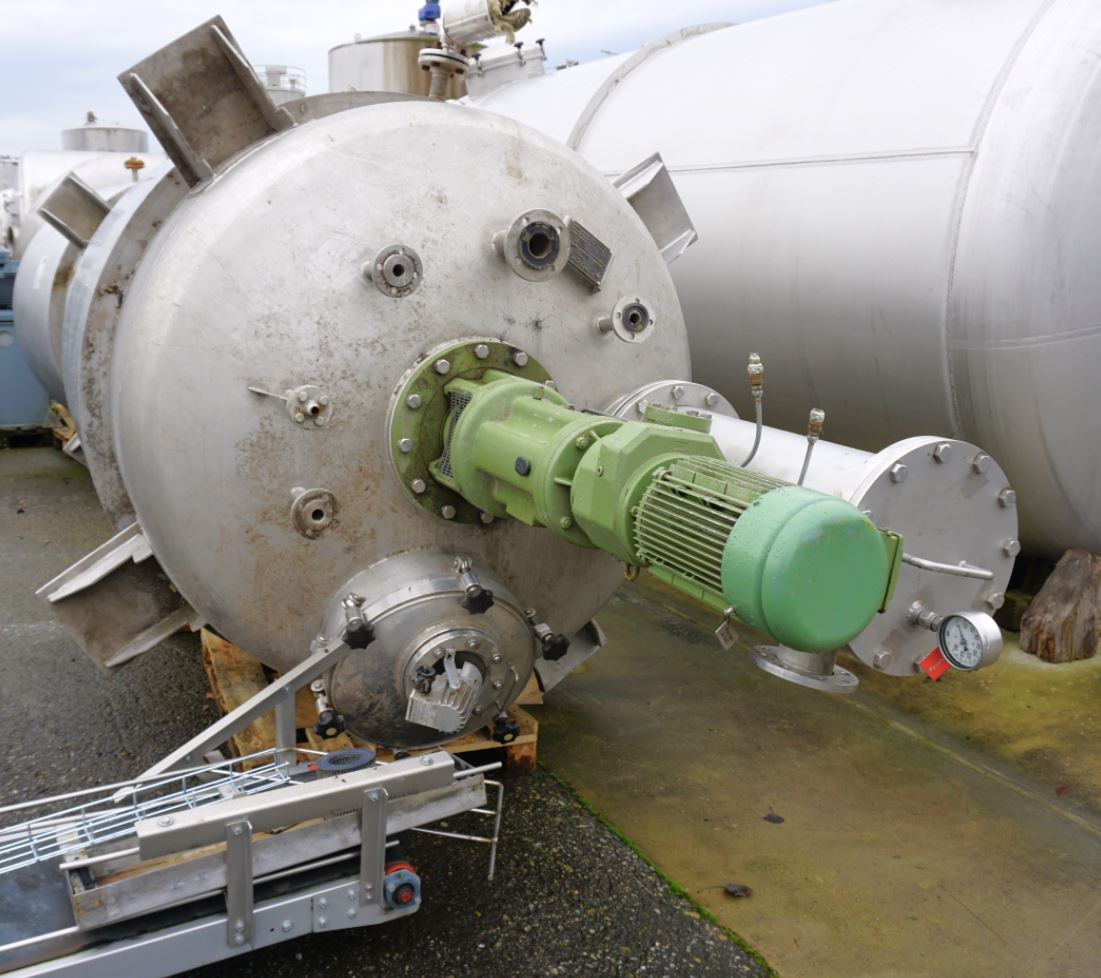

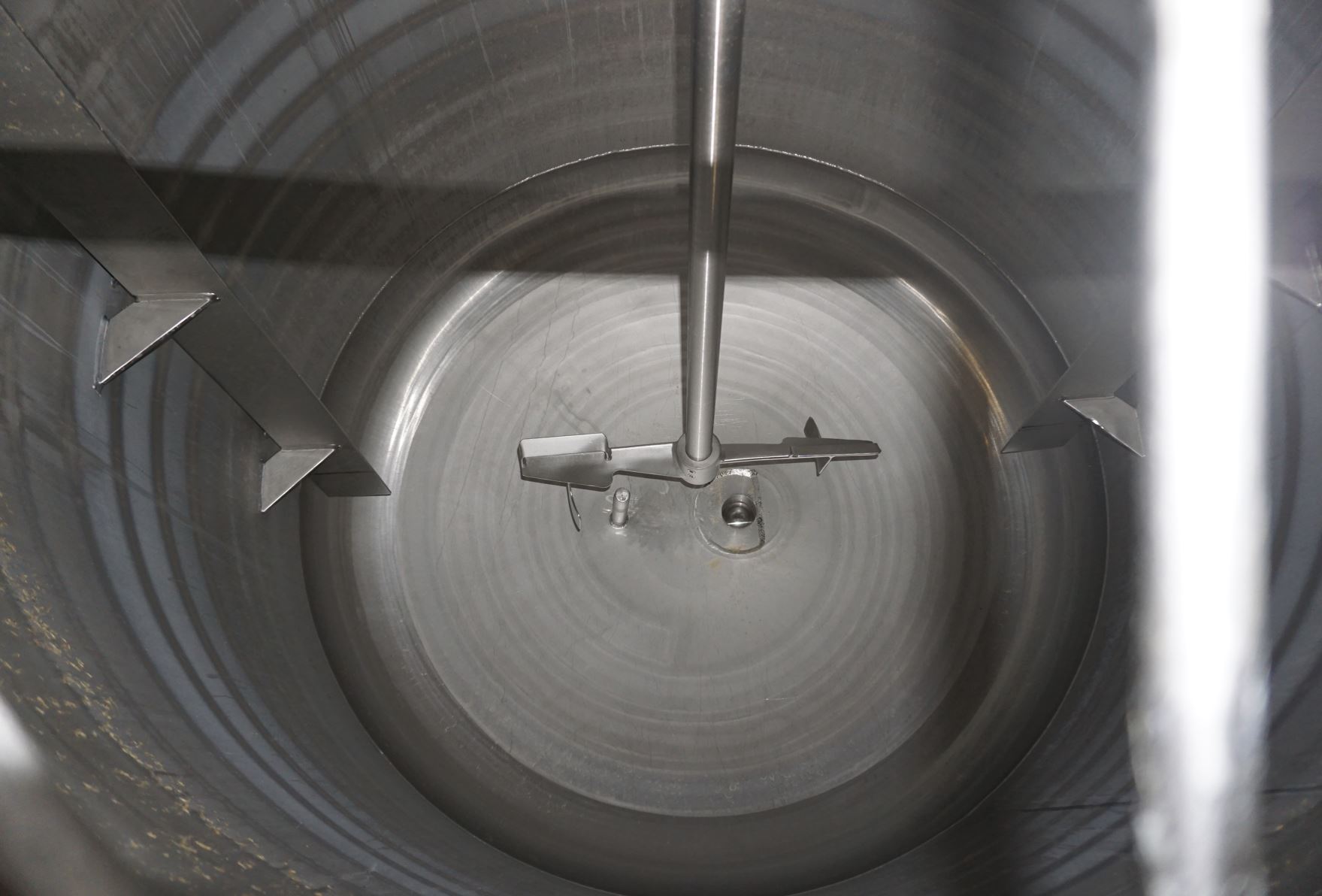

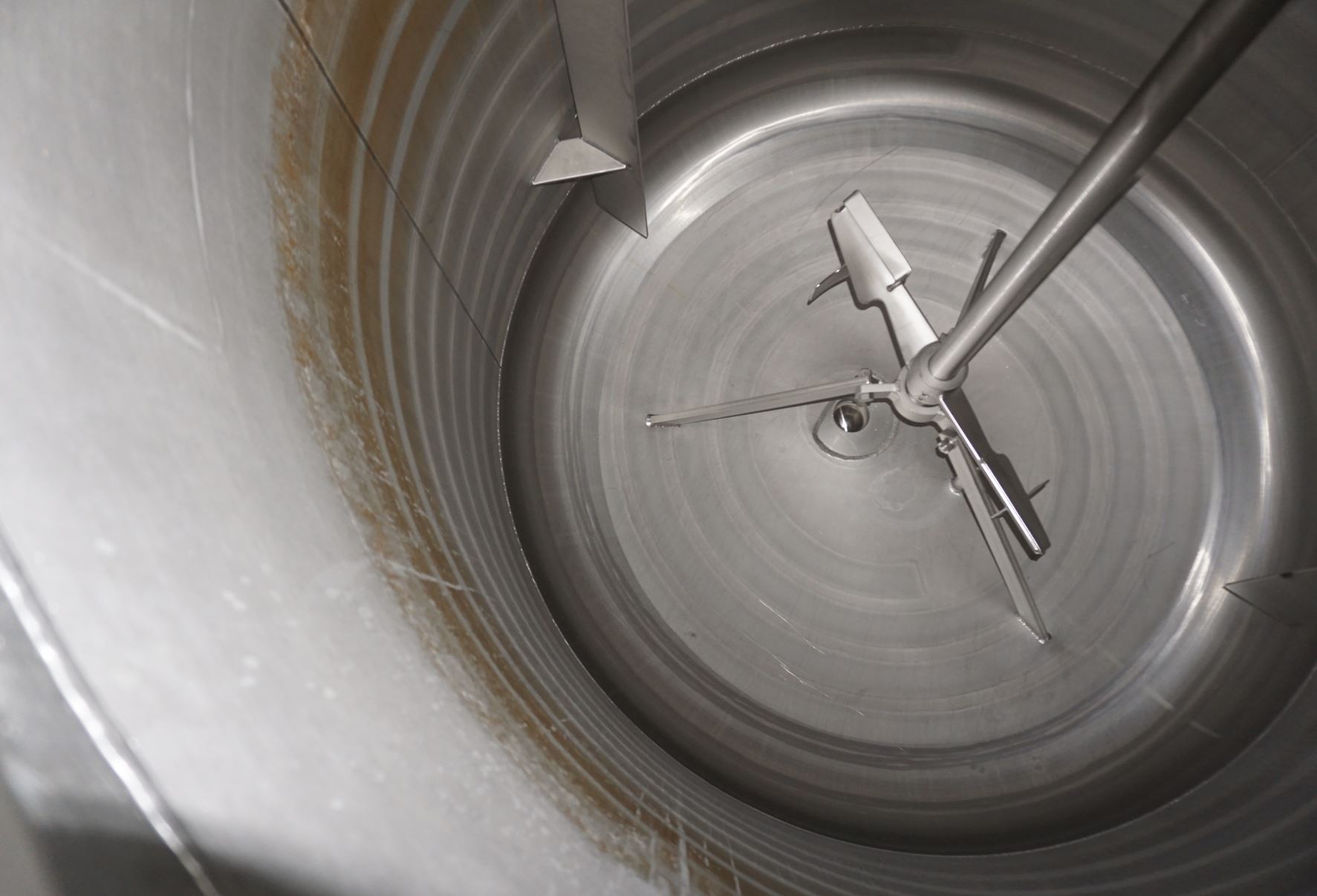

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Trapezoidal agitator

  • Note on agitator

  • Welle mit Bodenlager

  • Agitator position

  • Head central

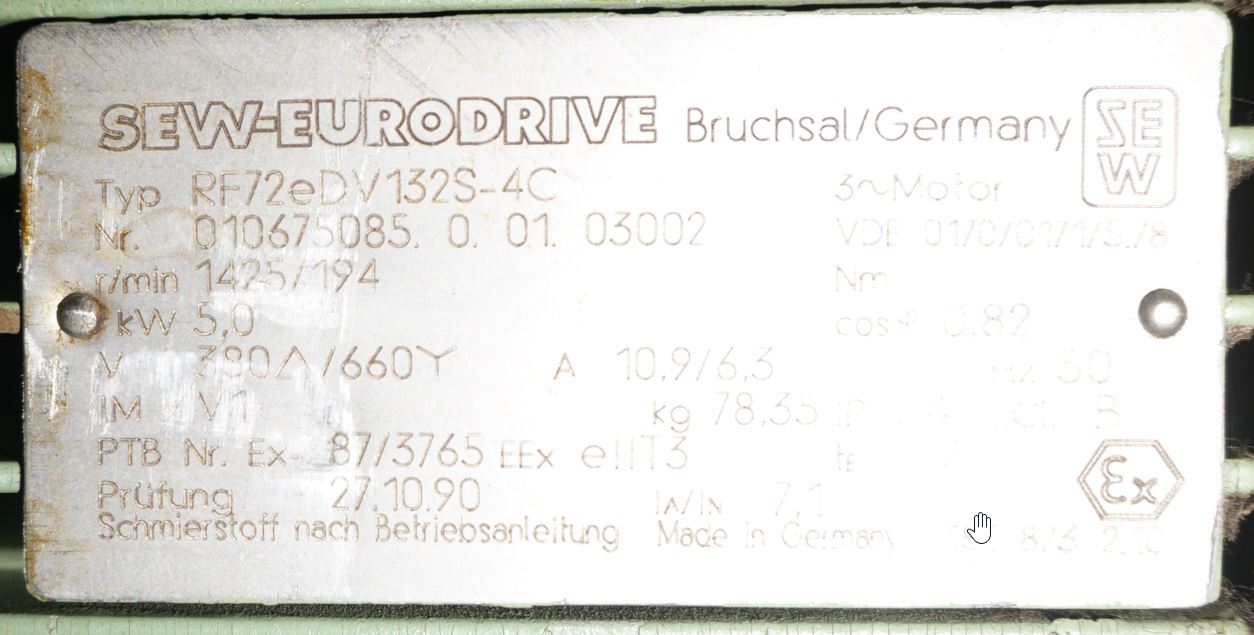

  • Agitator 1 - Output

  • 5 kW

  • Agitator 1 - RPM

  • 194 UpM

  • Agitator 1 - Voltage

  • 380 V

Supports

  • Supports

  • Bracket supports

  • Number of feet

  • 4 (piece)

Fixtures and fittings

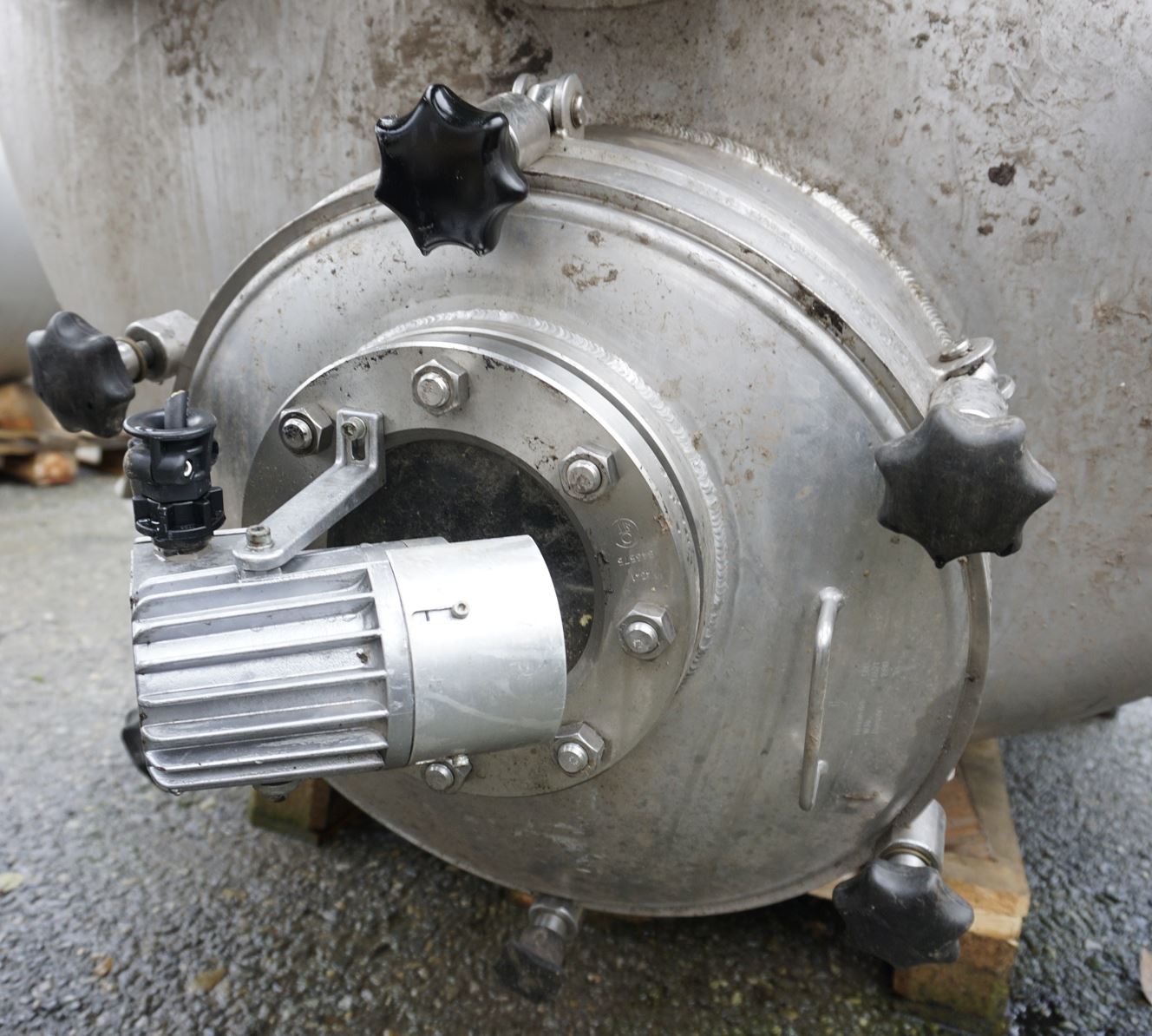

  • Manway position

  • In head

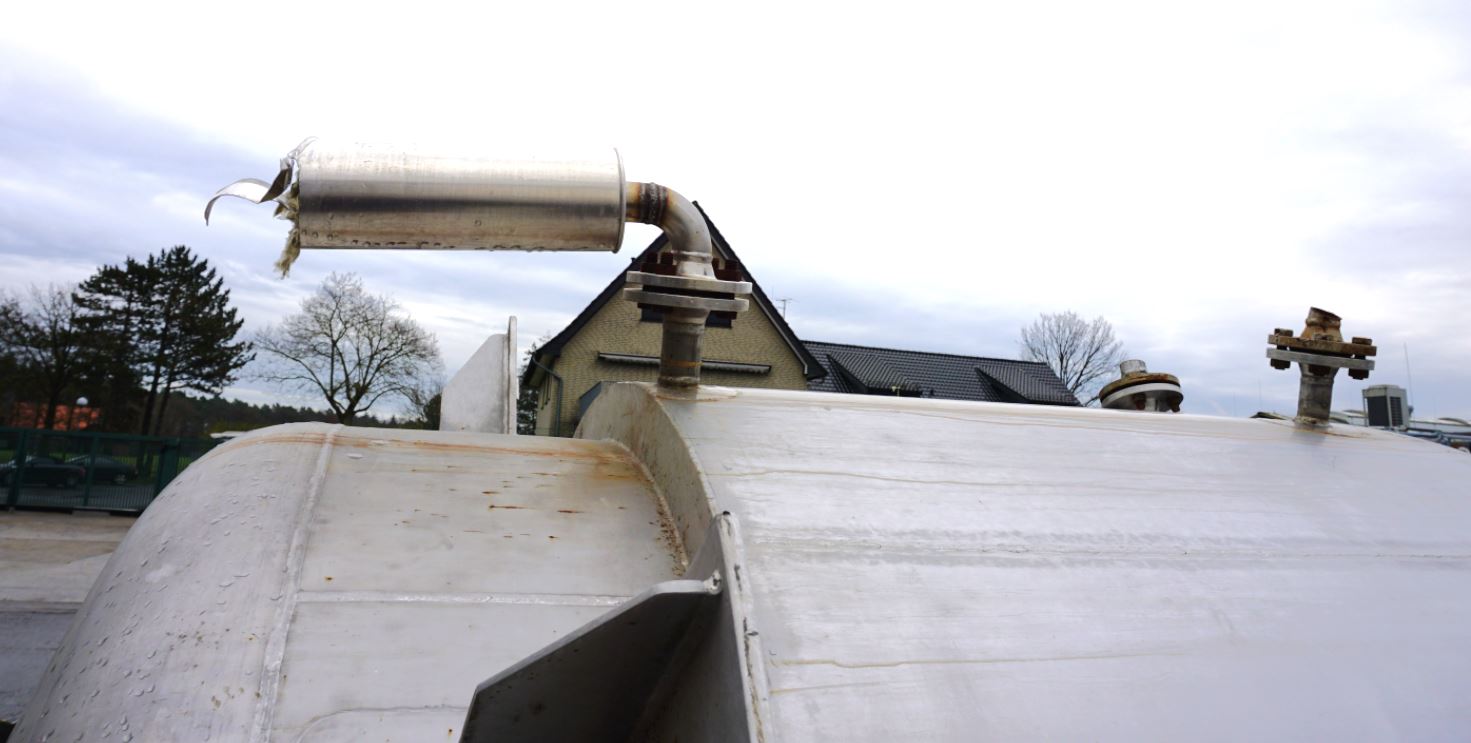

  • Nozzles/connectors in head

  • 1xDN300, 2xDN50, 2xDN25 (piece)

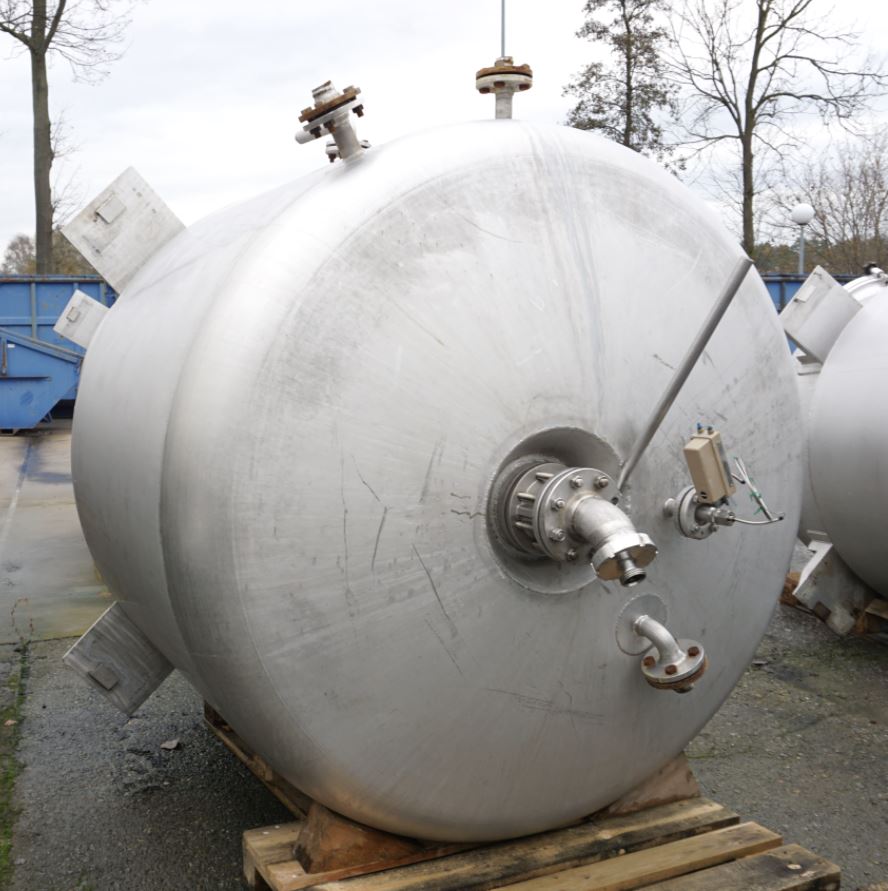

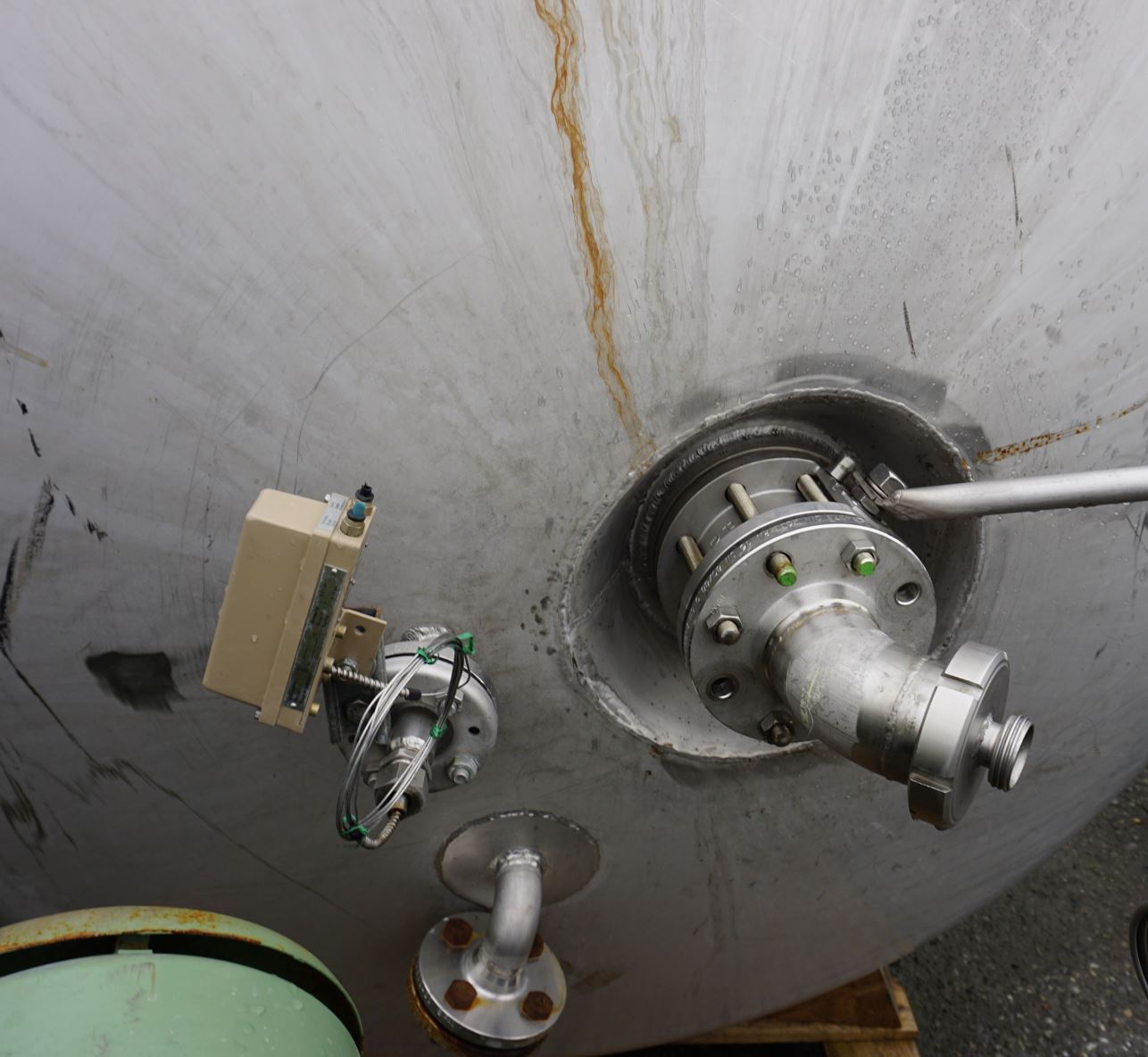

  • Outlet nozzle

  • 80/25

  • Additional fixtures and fittings

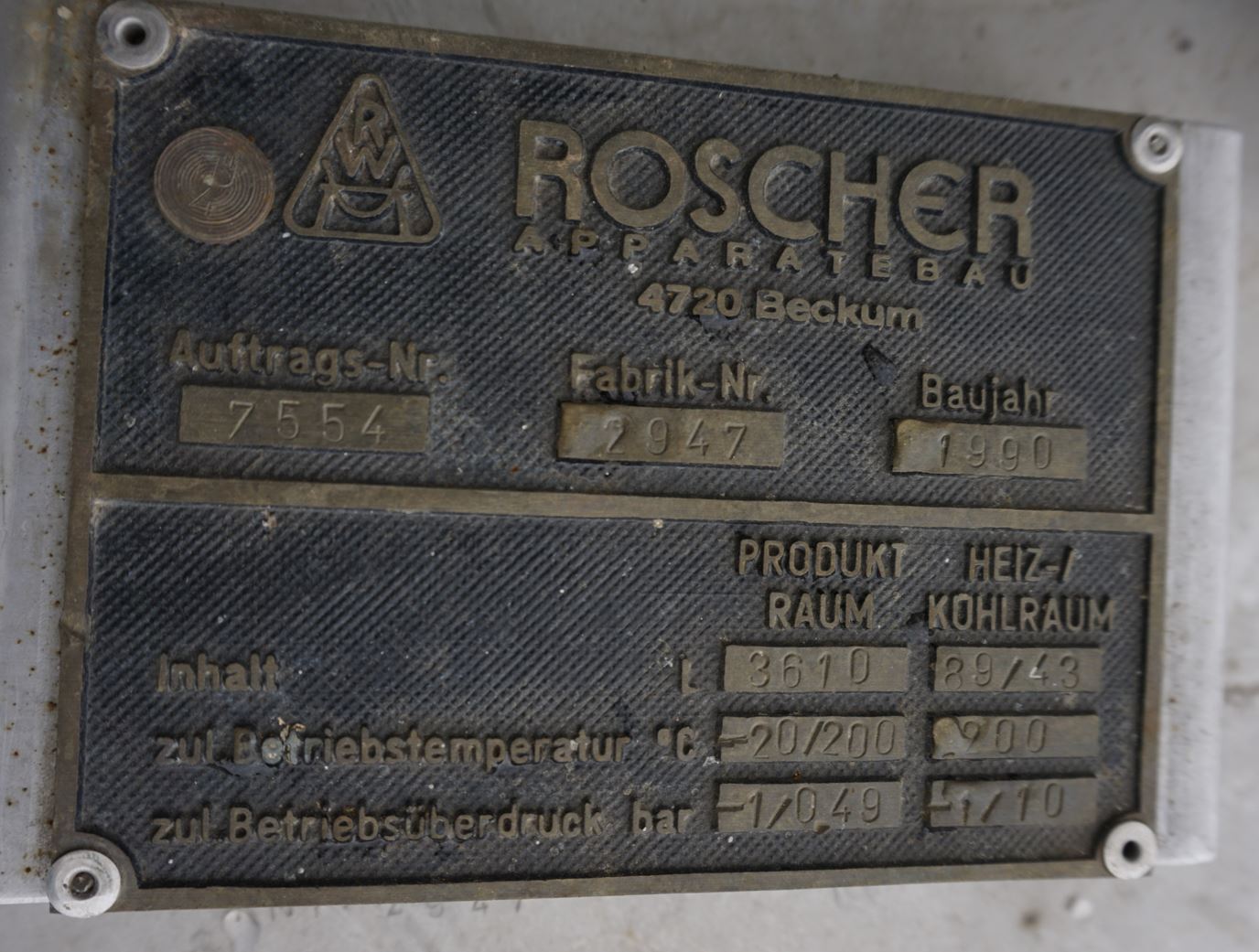

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Motor ex-geschützt; die Übereinstimmung mit den aktuell geltenden ATEX-Richtlinien ist zu überprüfen

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Pressure tank, Process tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Pressure tank, Process tank, CIP tank,
